To connect the matrices to the software they must all be on the same subnet so before proceeding make
sure that the devices are on the appropriate subnet by checking their netmask and IP address settings. To
manually change the IP address of the device, press the SET IP button.

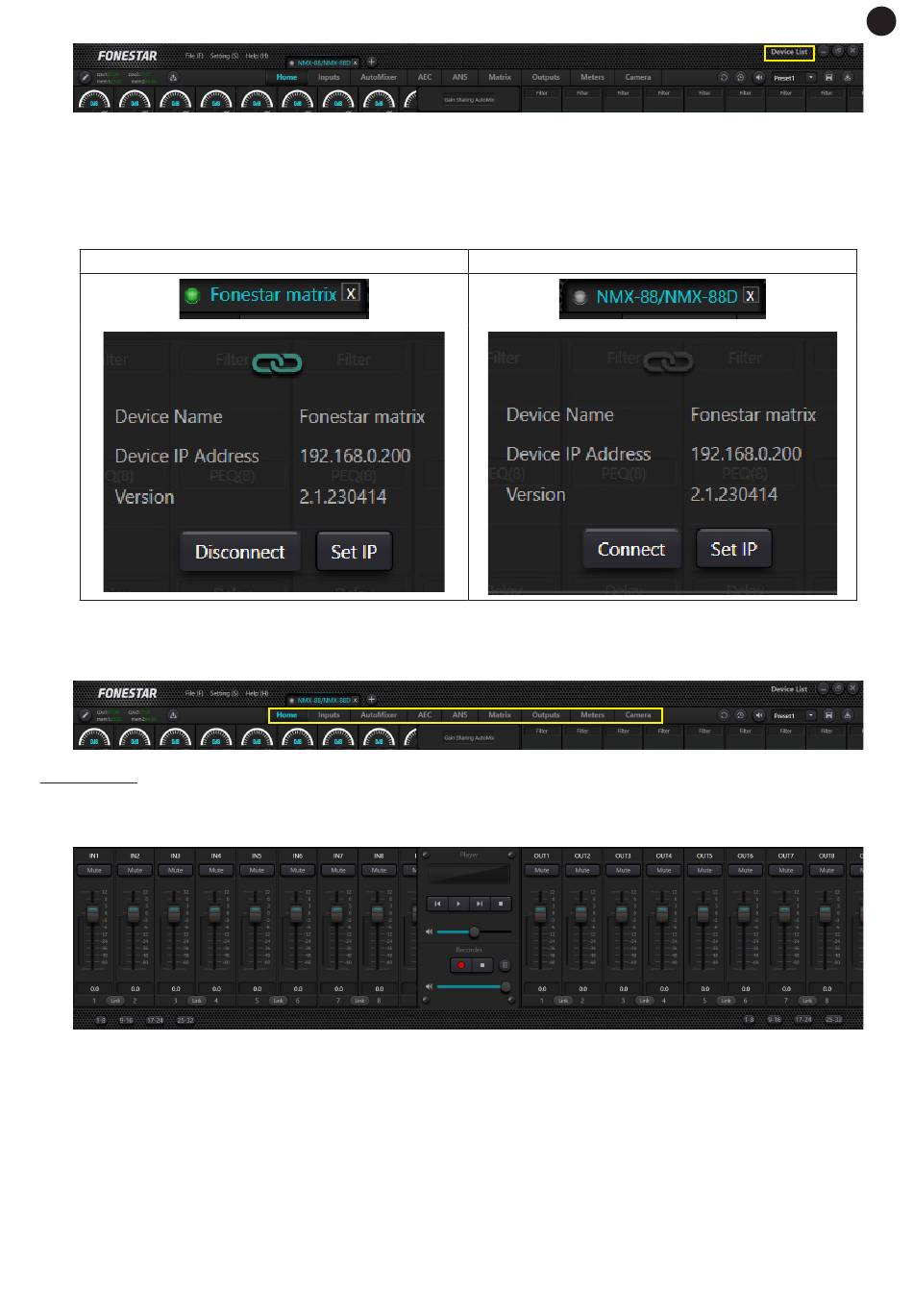

Finally, press the button shown below the matrix information: CONNECT to connect the matrix or
DISCONNECT to disconnect it.
CONNECTED MATRIX
At the top centre of the window, we can see different tabs that allow us to access the different DSP settings
of the device that are stored in the presets. For more information, see the PRESETS section. Next, we will
look at each of the configuration tabs.
CHANNELS
Before starting to explain each of the tabs, it is important to highlight a common element to all of them. This
element is the input and/or output channels, and is displayed at the bottom of the window.
Here we can perform the following actions on the channels:
-
RENAME: double click on the name to edit the channel name and press the enter button on your keyboard
to save.
-
MUTE: click on the MUTE button. It will turn red when activated.
-
GAIN: slide the fader or double-click on the numbers below the fader to change the value manually.
-
LINKING CHANNELS: 2 adjacent channels can be linked by pressing the LINK button. This will allow both
channels to share the same configuration. When a parameter is changed, this change will take effect on
both channels instantaneously. The LINK button will turn blue when the LINK function is activated.
-
CREATE GROUPS: direct access to the configuration of channel groups. For more information go to
MENU BAR AND OTHER TOOLS > MENU BAR - SETTINGS > GROUP SETTING section.
DISCONNECTED MATRIX
- 21 -
EN
