Once you have finished editing, press the
modification to the PC or UPLOAD to synchronise the changes on the connected device. If you do not
wish to save the changes press CANCEL.
COPY AND PASTE CONFIGURATION
This software is prepared to copy the configuration set in a module of one channel to the same module of another
channel in a simple way.
1.-
In the INPUT or OUTPUT tabs, select the channel and locate the module to be copied.
2.-
Right-click on the DSP module to be copied and the drop-down will show the COPY option.
3.-
In the lower part of the window, select the target channel where you want to paste this configuration.
Right-click on the DSP module of the same type again and this time select the PASTE option.
EDITING PARAMETERS OF A DSP MODULE
To edit the parameters of a module, it is necessary to assign the module to the input or output channel and
then access an expanded view of the module where its parameters can be found. There are 3 methods to
display the parameters of a DSP module:
1.- In the HOME tab we can double click on the modules and it will take us to the INPUT or OUTPUT tab,
as appropriate, with the module view.
2.- Select the channel directly in the INPUT or OUTPUT tab, as appropriate, and look for the DSP module
in the top panel (click and drag to scroll left and right or use the list on the left of this information block).
3.- In the HOME tab we can right-click and a pop-up window with the module view will appear.
NOTE: it shall be possible to copy and paste the configuration between modules of the same type on
different channels. To copy, right-click on the module (in the expanded view of the DSP module) and select
COPY. In the same way, on the module on which we want to paste the copied configuration, select PASTE
to paste the configuration.

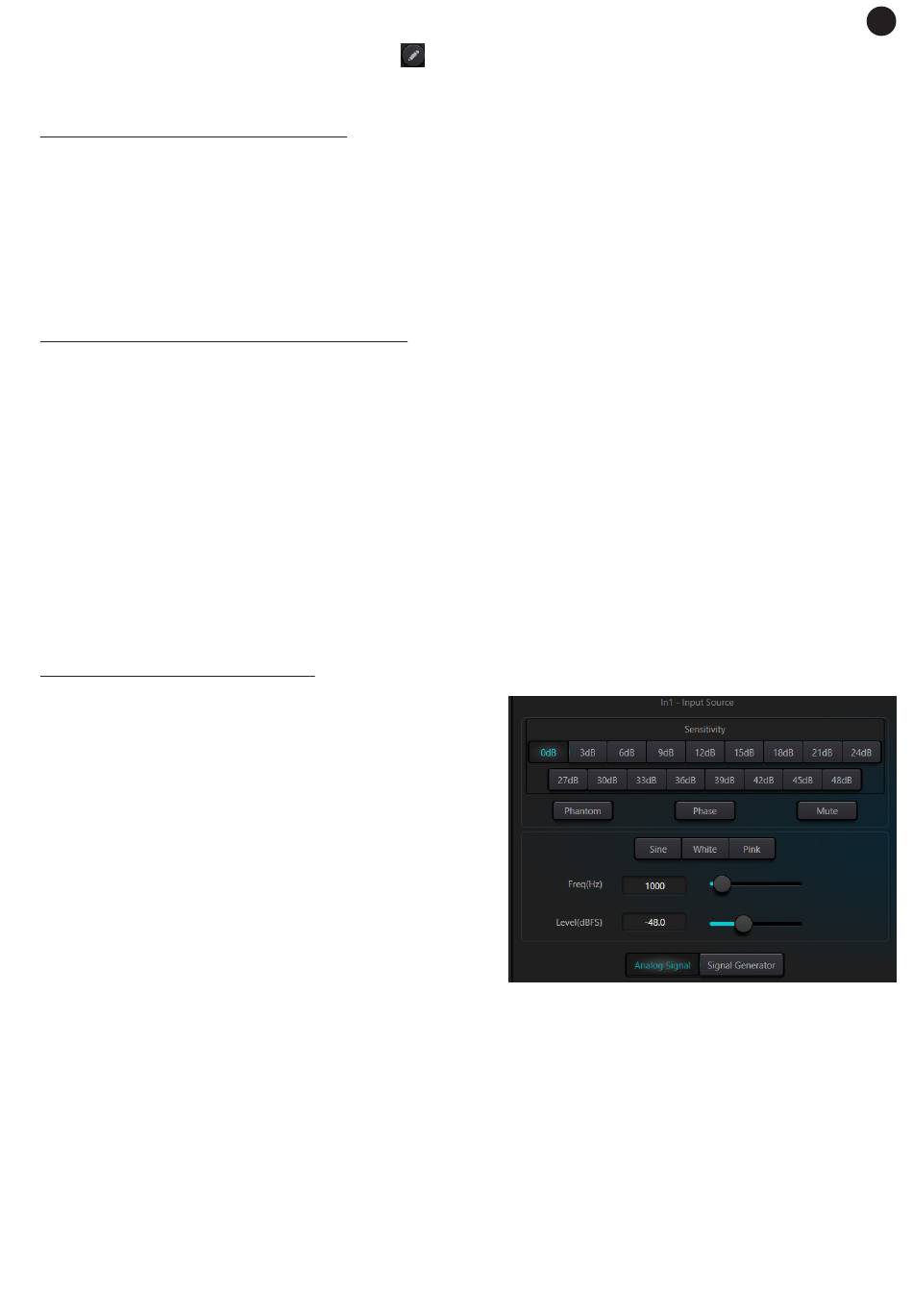

DSP MODULE - INPUT SOURCE
This module exists on all input channels providing
basic configuration parameters for the input signals.
This module does not consume space out of the 5
modules available for each input channel.
It consists of:
-
ANALOG SIGNAL: selects the analogue signal
connected to the physical input of the matrix.
-
DIGITAL SIGNAL: selects the Dante digital signal
from the matrix.
-
SIGNAL GENERATOR: activates a signal generator
on this channel.
For these, the following parameters are available:
-
SENSIBILITY: allows you to adjust the input sensitivity to the type of signal connected.
-
PHANTOM POWER: allows the phantom power to be switched on/off.
-
PHASE: allows the phase of the input signal to be inverted by 180°.
-
MUTE: mutes the input channel.
button again to save the settings. Press FINISH to save the
