EDITING TOOLS
: undo/redo editing.
: align left/right/up/down.
: distribute horizontally/vertically.
: vertical/horizontal separation between elements.
PAGE BACKGROUND
Once one or more pages have been loaded we can edit the appearance of the background. To do this, if we
have not selected any element in the right margin we will find the properties of the background where this
can be a colour or an image:
-
BACKGROUND: background colour.
-
IMAGE: apply an image in the background
-
FILE PATH: file path.
-
FILLING MODE: places the image in the centre (NORMAL), distorts the image to fill the background
(FILL), enlarges the image until it fills the height or width of the page ensuring that no part of the image
is lost (UNIFORM) or enlarges the image even if part of the image is lost (UNIFORM TO FILL).
-
APPLY TO GLOBAL BACKGROUND: applies the background to all pages of this file.
ELEMENTS OF A PAGE AND THEIR PROPERTIES

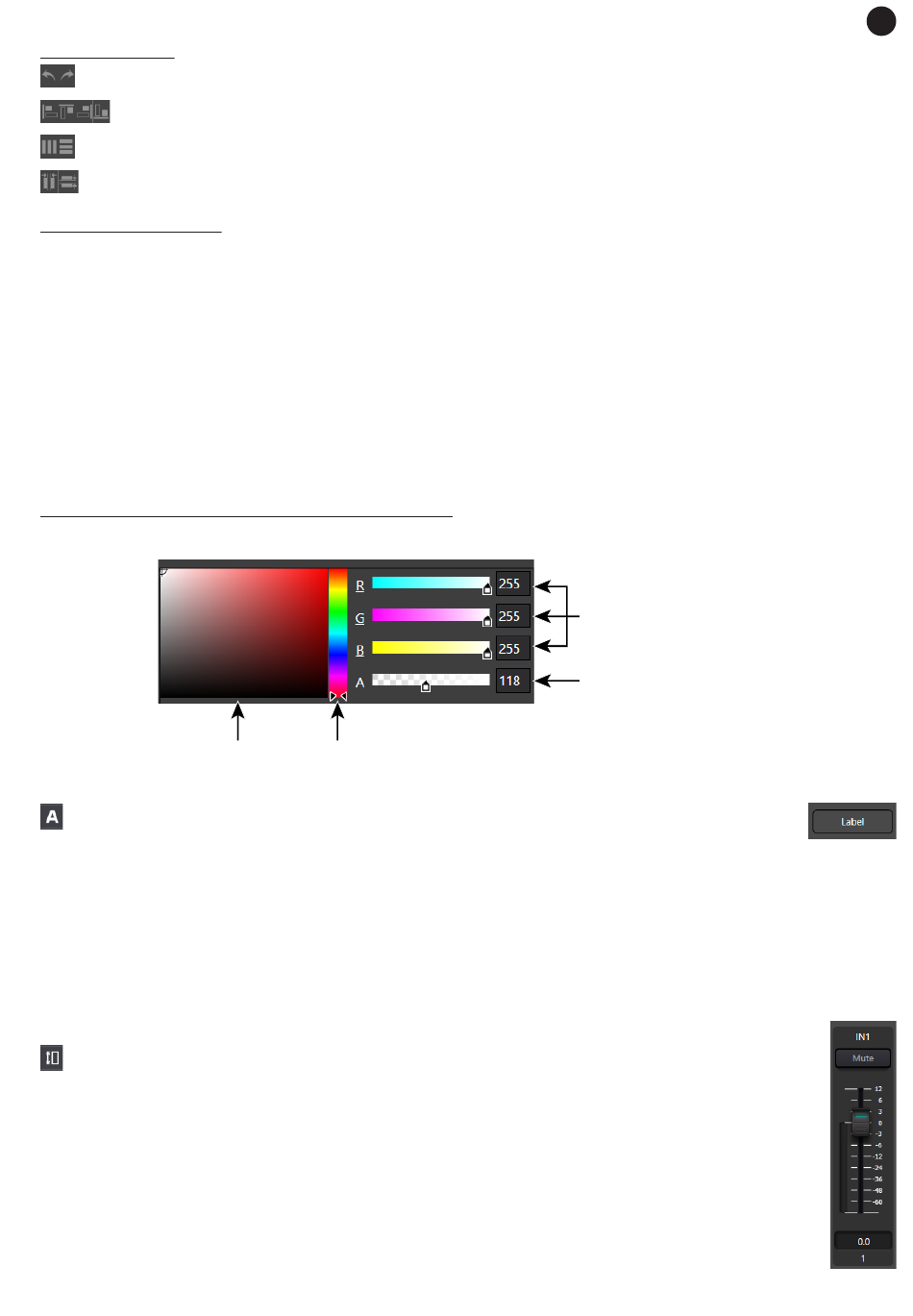

The colour selector on several of the elements shows the following controls:
Colour quantity
Drag the items to the location on the page where you want to place them.
: text box.
-
TEXT: text to be displayed.
-
WIDTH, HEIGHT: element width and height.
-
FONT, FONT SIZE, B, I: font, size, bold and italics.
-
CORNER RADIUS: radius of the corners of the outer rectangle.
-
HORIZONTAL/VERTICAL ALIGMENT: horizontal or vertical alignment of the text.
-
BORDER THICKNESS, BORDER BRUSH: thickness and colour of the outer rectangle.
-
FOREGROUND: text colour.
-
BACKGROUND: background colour.
: channel slider.
-
WIDTH, HEIGHT: element width and height.
-
CORNER RADIUS: radius of the corners of the outer rectangle.
-
DEVICE IP: matrix IP address.
-
CHANNEL TYPE: channel type (INPUT: input or OUTPUT: output).
-
CHANNEL INDEX: input or output channel number to be represented.
-
FOREGROUND: text colour.
-
BACKGROUND: background colour.
Colour
- 51 -
Colour quantity R, G and B
Transparency
