NOTE: right click on the matrix and select UNGROUP to be able to select each of the buttons one by one.
In this way you can completely edit each button individually: appearance and actions to be performed.
Once you have finished editing it is recommended that you re-group by selecting all the bonotes,
right-clicking on them and selecting the GROUP option.

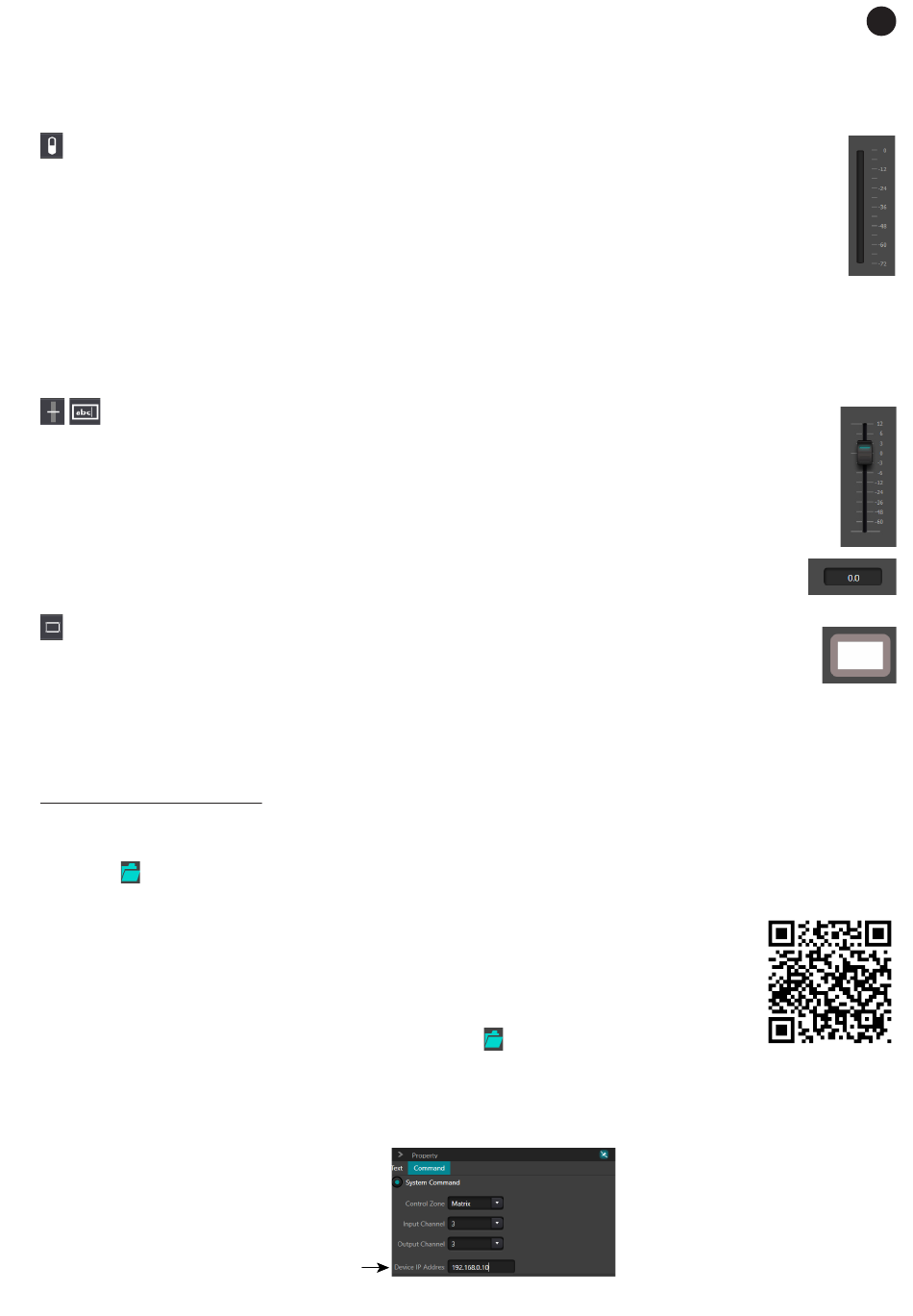

: volume display.
-
WIDTH, HEIGHT: element width and height.
-
CORNER RADIUS: radius of the corners of the outer rectangle.
-
LEVEL MARK: position of the level indicators.
-
DEVICE IP: matrix IP address.
-
CHANNEL TYPE: channel type (INPUT: input or OUTPUT: output).
-
CHANNEL INDEX: input or output channel number to be represented.
-
ALARM: activate/deactivate alarms if the level is above or below a certain value (dB).
-
FOREGROUND: text colour.
-
BACKGROUND: background colour.
: volume slider and numerical volume value.
-
WIDTH, HEIGHT: element width and height.
-
CORNER RADIUS: (slide control only) radius of the corners of the outer rectangle.
-
DEVICE IP: matrix IP address.
-
CHANNEL TYPE: channel type (INPUT: input or OUTPUT: output).
-
CHANNEL INDEX: input or output channel number to be represented.
-
FOREGROUND: text colour.
-
BACKGROUND: background colour.
: rectangle shape.
-
WIDTH, HEIGHT: element width and height.
-
CORNER RADIUS: radius of the corners of the outer rectangle.
-
BORDER THICKNESS, BORDER BRUSH: thickness and colour of the outer rectangle
-
BACKGROUND: background colour.
CREATE A PAGE ARCHIVE
1.- In the PC software, go to the SETTINGS > USER INTERFACE menu and a new window will appear.
2.- Design or load pre-designed screens onto the PC from the top menu FILE > OPEN or click on the
iicon
.
FONESTAR provides you with pre-configured pages with the usual actions. These pages have been
created for 8 channels and 16 channels:
a.- Go
to
the
www.fonestar.com/en/TAB-10-16, or read the QR code, and download the file:
"FONESTAR_NMX_TAB-10-16_screen_examples_V1"
b.- Load the "TAB-10-16_screen_examples.fonestaruse" file in software from the
menu FILE > OPEN or by clicking on the icon
c.- Once uploaded, you will need to change the default IP address configured in the controls to the IP
address of your parent. This modification can be done independently or en masse.
-
Standalone: click on each item in the image, select the COMMAND tab of the PROPERTY pane
on the right side of the window and edit the IP in the DEVICE IP ADDRESS field.
SOFTWARE
tab
on
Matrix IP
the
web
page
of
.
- 53 -
the
screen.
EN
