NMX-WP WALL PANELS
This NMX system allows actions on the matrix to be performed remotely via NMX-WP control panels.
The actions to be carried out on these panels are configured via the PC software.
First of all you must connect the wall panel to the mains, the steps to follow are detailed in the CONNECTION

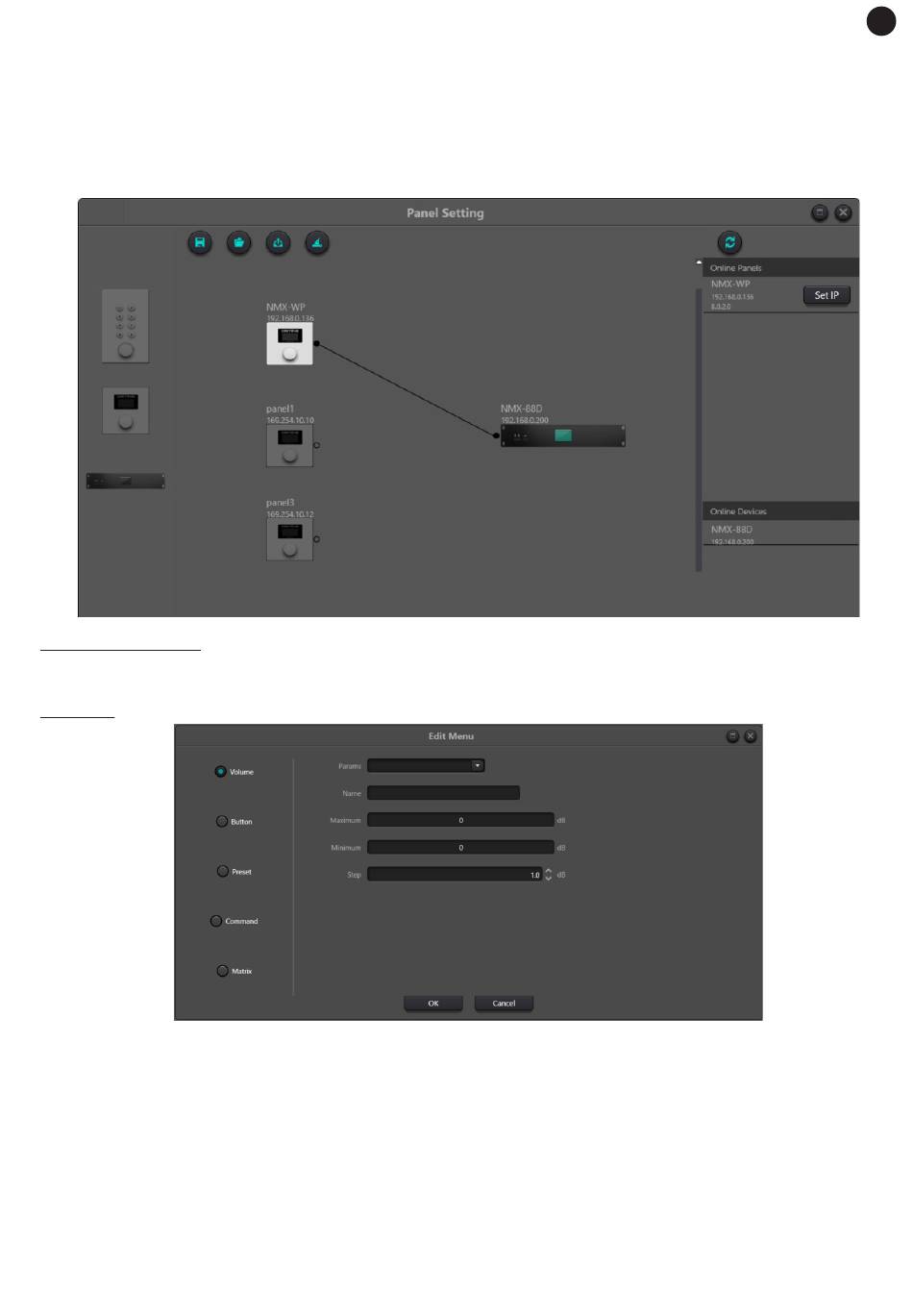

section. Once these steps have been carried out, you will find yourself on a screen similar to the one shown
below, if this is not the case, access the SETTINGS > PANEL SETTINGS menu in the PC software:
NMX-WP ACTIONS
Within each NMX-WP it is possible to configure access to 32 actions in each panel.
VOLUME
Allows adjustment of the gain of an input or output, physical or Dante, of the matrix. The parameters are:
-
PARAMS: input (1-64) or output (1-64) on which to apply the action.
-
NAME: text to be displayed on the screen to identify this action.
-
MAXIMUM (dB): maximum volume limit allowed from the panel.
-
MINIMUM (dB): minimum volume limit allowed from the panel.
-
STEP (dB): volume increase/decrease at each step of the wall panel selector.
- 45 -
EN
