2.- For the following steps you will need to have both the camera and the matrix switched on.

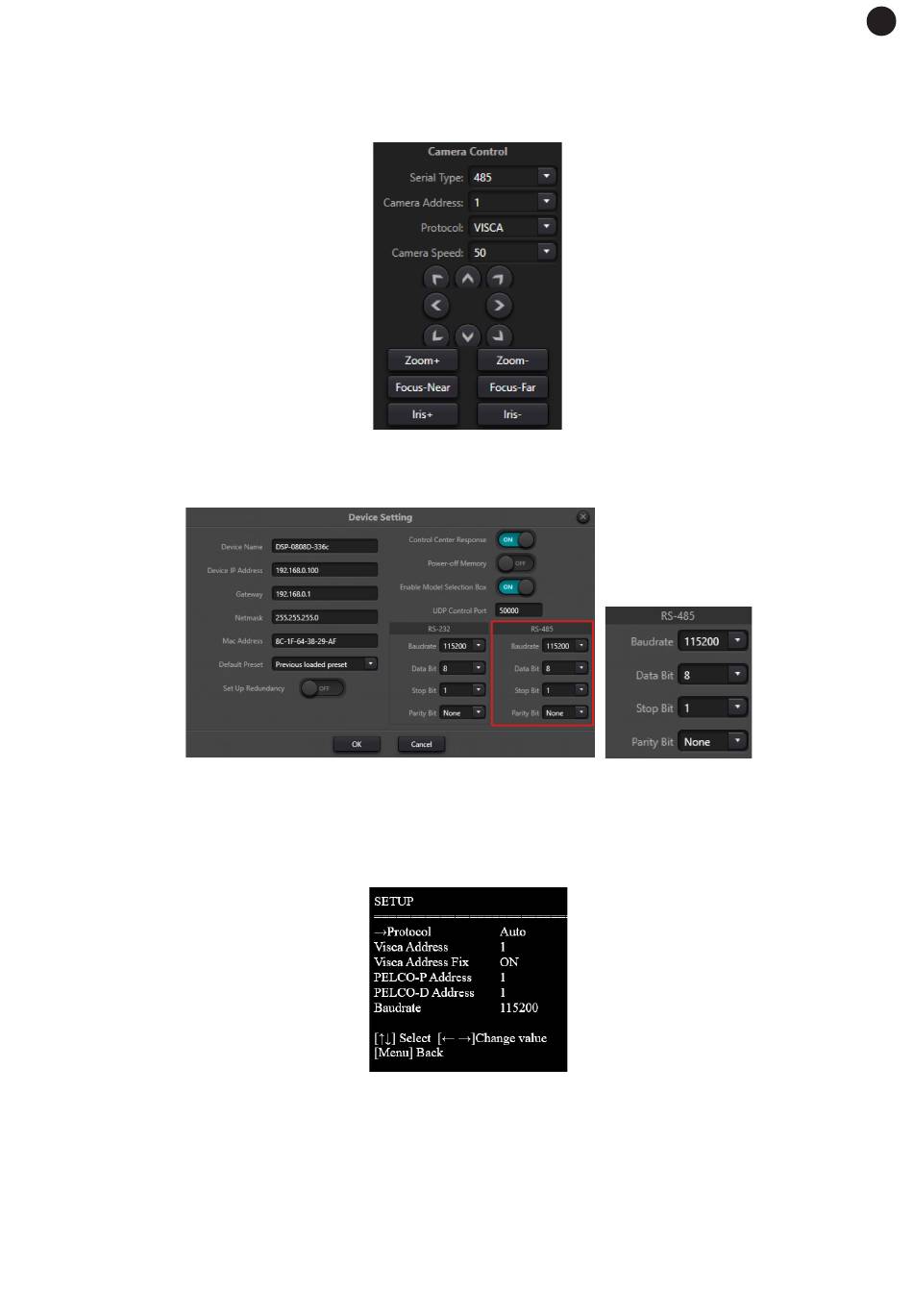

3.- Configure the communication in the matrix via the software:
-
In the CAMERA tab and CAMERA CONTROL section, indicate the type of communication and
protocol. In our case it will be a 485 serial communication and VISCA protocol.
-
Configure the parameters of the communication port of the matrix, in our case the RS485 port.
To do this, go to the top menu SETTING > DEVICE SETTING and check the configuration of the
RS-485 section. This must match that of the camera in order for the two devices to communicate.
4.- Configure the camera's communication port settings. Connect a monitor to the camera and access its
settings (SETUP) via the camera menu. Here we must ensure that we use the same parameters that we
have already set in the matrix configuration. In our example we set the Baudrate to 115200 as in the
matrix and activate the VISCA protocol (VISCA ADDRESS FIX): ON).
5.- Now it is time to configure what we want the camera to do from the CAMERA tab of the software.
- 33 -
