Bus coupler
Input/output modules

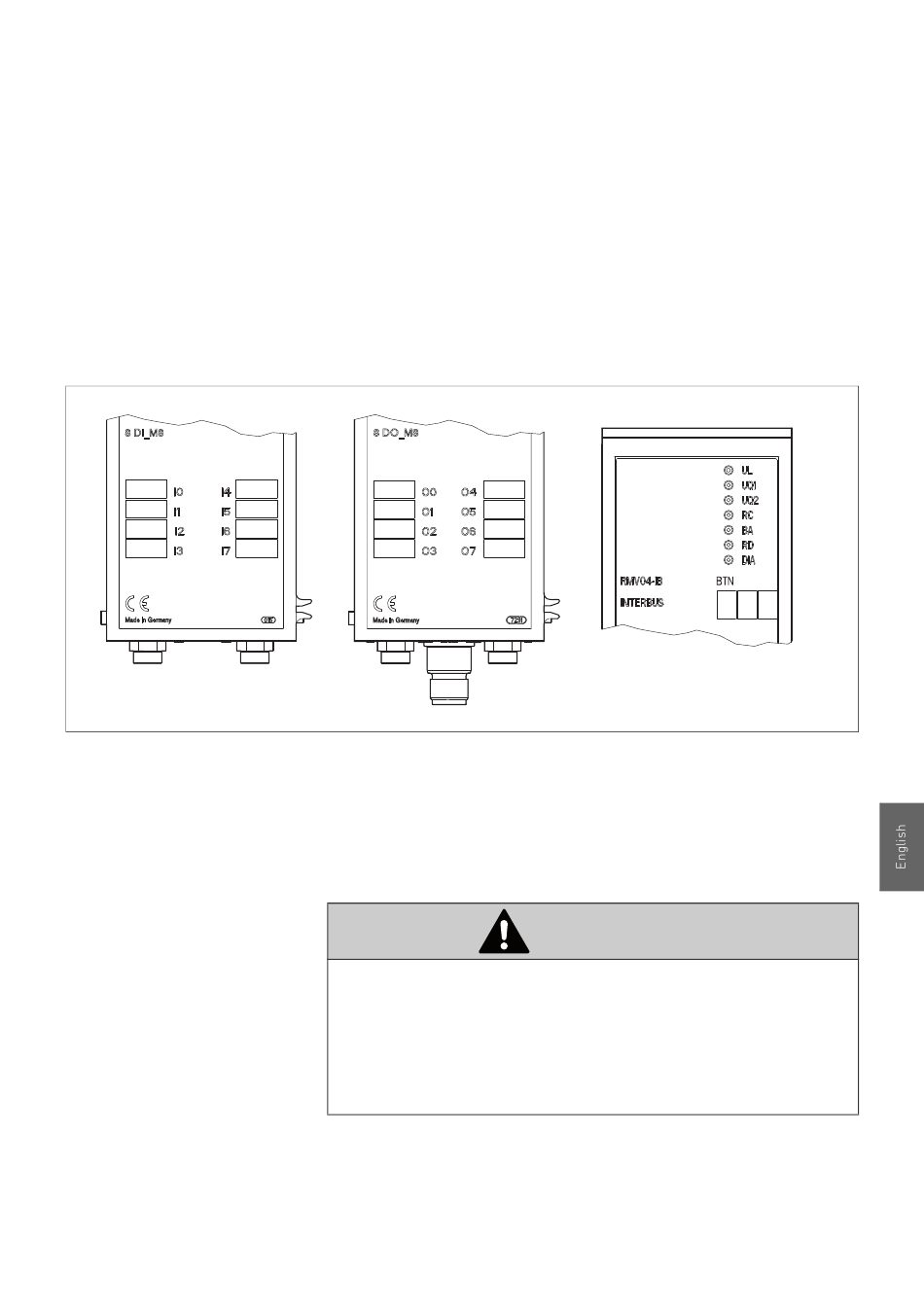

Fig. 6: Labels on the bus coupler (RMV-IB), input module (8DI_M8), and output module (8DO_M8)
(examples)
AVENTICS | INTERBUS S | R412005743–BDL–001–AD
6.2

Labeling the module

Inscribe the address provided/used for the bus coupler on
O
the bus coupler in the BTN field.
Label the connections directly on the labels of the input/
O
output modules.
The markings on the connections indicate which labels are
assigned to the connections.
6.3

Connecting the bus coupler electrically

Applied voltage
Danger of injury from electric shocks.
Make sure the relevant system component is not under
O
pressure or connected to power when electrically
connecting modules to the valve system.
CAUTION
