80 AVENTICS | INTERBUS S | R412005743–BDL–001–AD

Commissioning and Operation

A
B
7 Commissioning and Operation
7.1

Making presettings

The following presettings have to be made:

Setting the baud rate

W

Setting the bus coupler address

W

Setting diagnostic messages

W
Assigning the valve supply
W

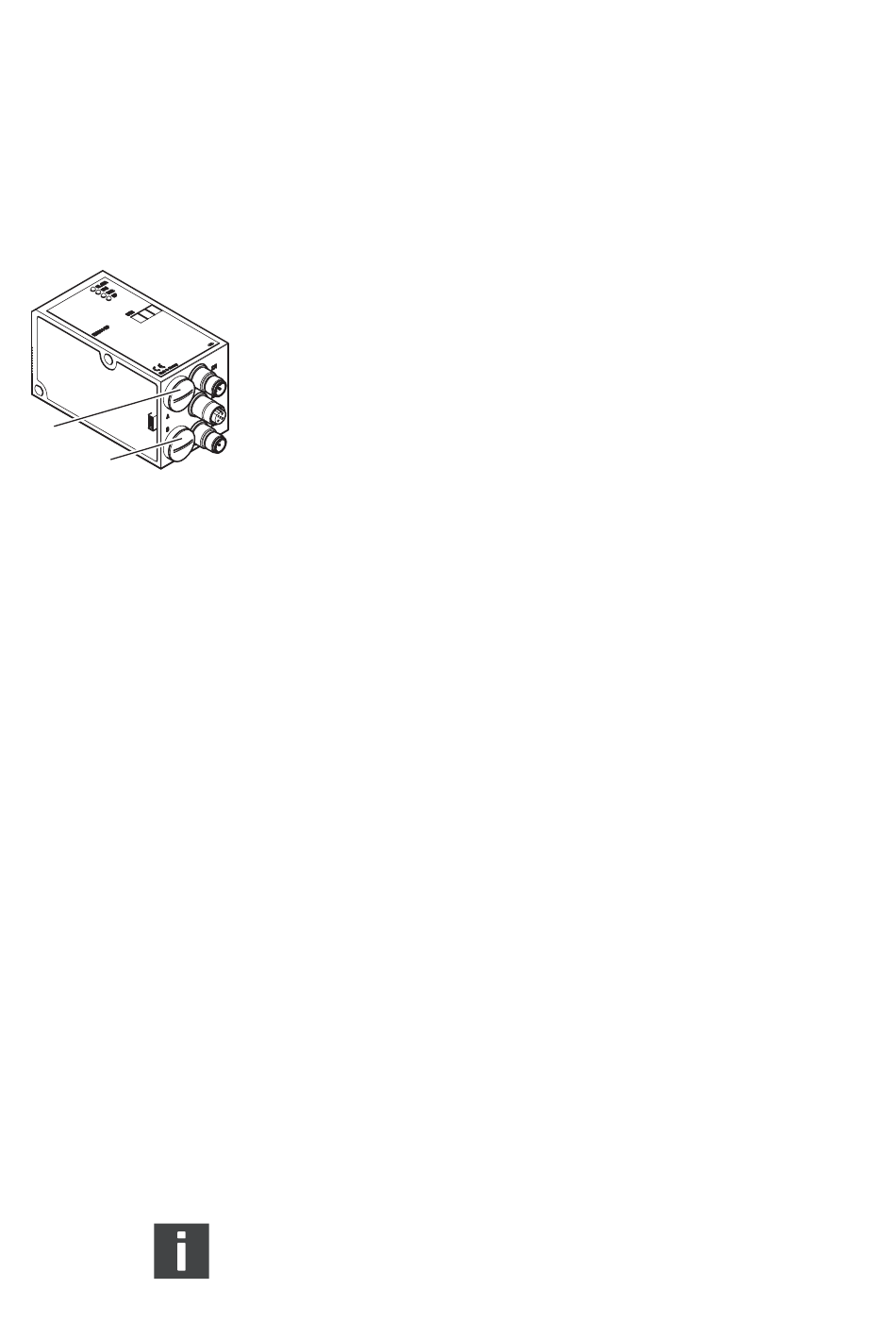

All of these settings are made using the switch beneath the PG
fittings A and B.
Proceed as follows for all of the presettings:
1. Remove the corresponding PG fitting.
2. Adjust the corresponding setting as described below.
3. Refit the PG fitting in its original position. Pay attention that
the sealing rings are positioned correctly.
7.1.1 Setting the baud rate
The bus coupler is operated with a standard baud rate of
500 kBaud. No setting is necessary.
7.1.2 Setting the bus coupler address
Bus coupler addressing occurs automatically when the
INTERBUS S master is initialized. The master assigns the
addresses according to the order on the bus.
7.1.3 Setting diagnostic messages
The S3 mode switch used to set the diagnostic messages is
located under the PG screw cap A.
When delivered, all switches are set to the OFF position.
