Device description
5.2

Device components

5.2.1

Bus coupler

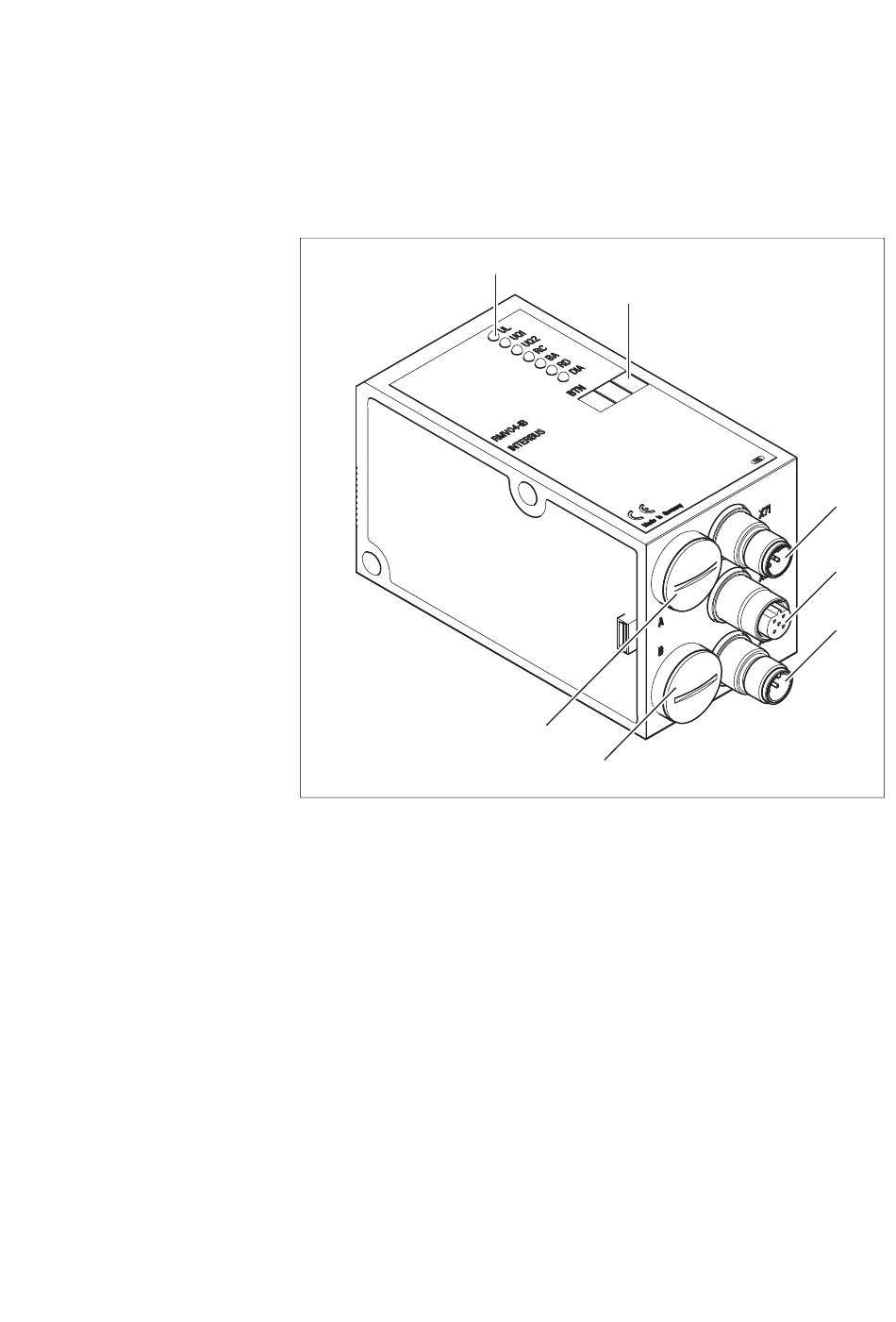

Fig. 2: Bus coupler overview
1 LED displays for diagnostic messages
2 Bus slave label
3 X71 (BUS IN) connection for the bus coupler to control the
1)
valves
4 X72 (BUS OUT) connection for the INTERBUS S to control
valves and the I/O modules
5 X10 (POWER) connection to supply power to the valve
solenoids
6 Screw cap B for S4, S5, S6 sliding switches
(valve assignment to power supply)
7 Screw cap A for S3 DIP switch (setting modes)
1)
For plug assignment see page 72
