68 AVENTICS | INTERBUS S | R412005743–BDL–001–AD
Device description

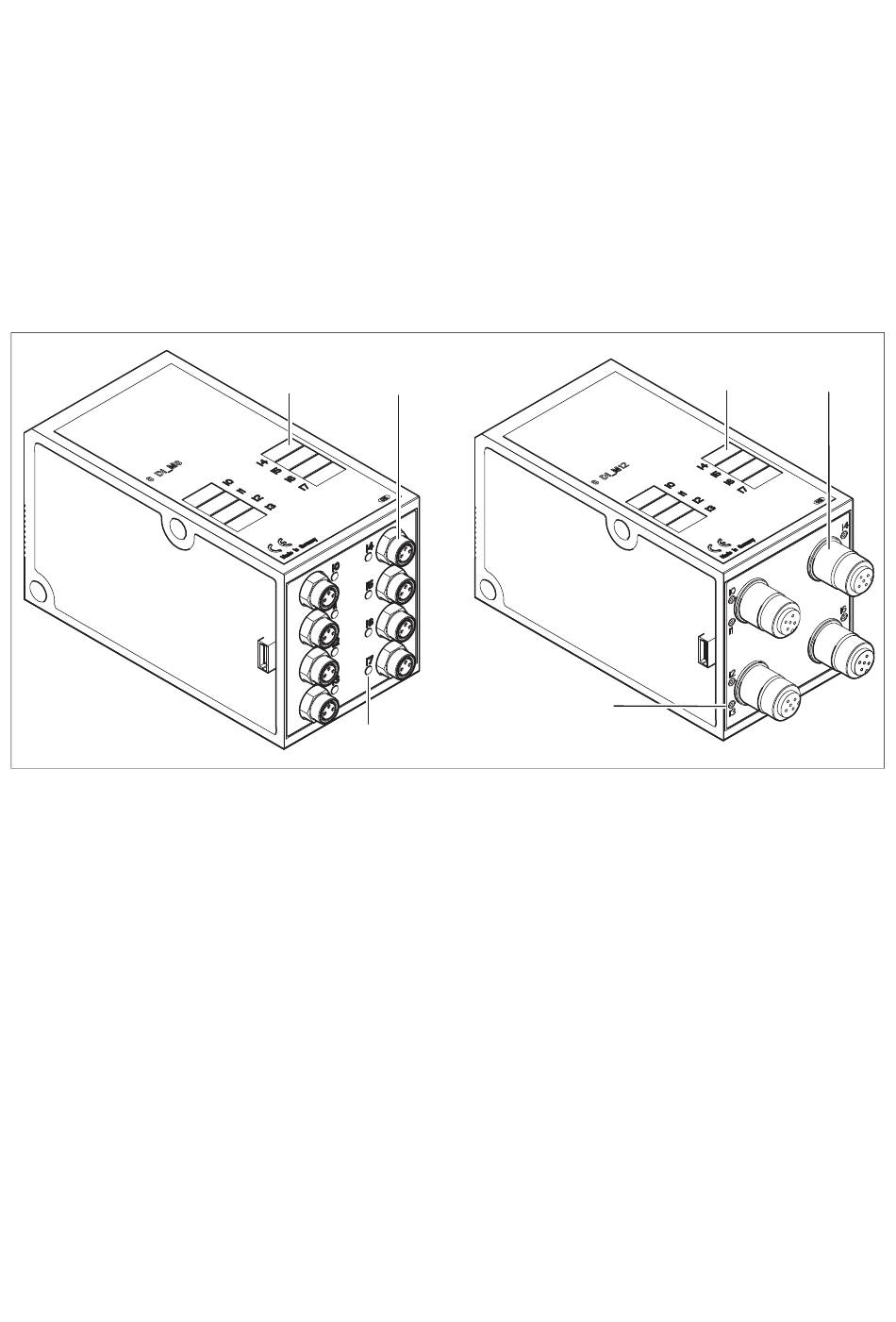

Fig. 3: 8x output module RMV04-8DO_M8 (left) and RMV04-8DO_M12 (right)
1 Label
2 RMV04-8DO_M8 (left): 8 outputs on 8x M8 sockets
RMV04-8DO_M12 (right): 8 outputs on 4x M12 sockets
3 1 LED (yellow, status) for each input
1)
For plug assignment see page 72.
5.2.3

Input modules

The input modules used to connect electric sensor signals are
available in two versions:
8x M8 (RMV04-8DI_M8) or
W
4x M12, double-assigned (RMV04-8DI_M12)
W
1 2
3
3
1)
1)
1 2
