About This Product

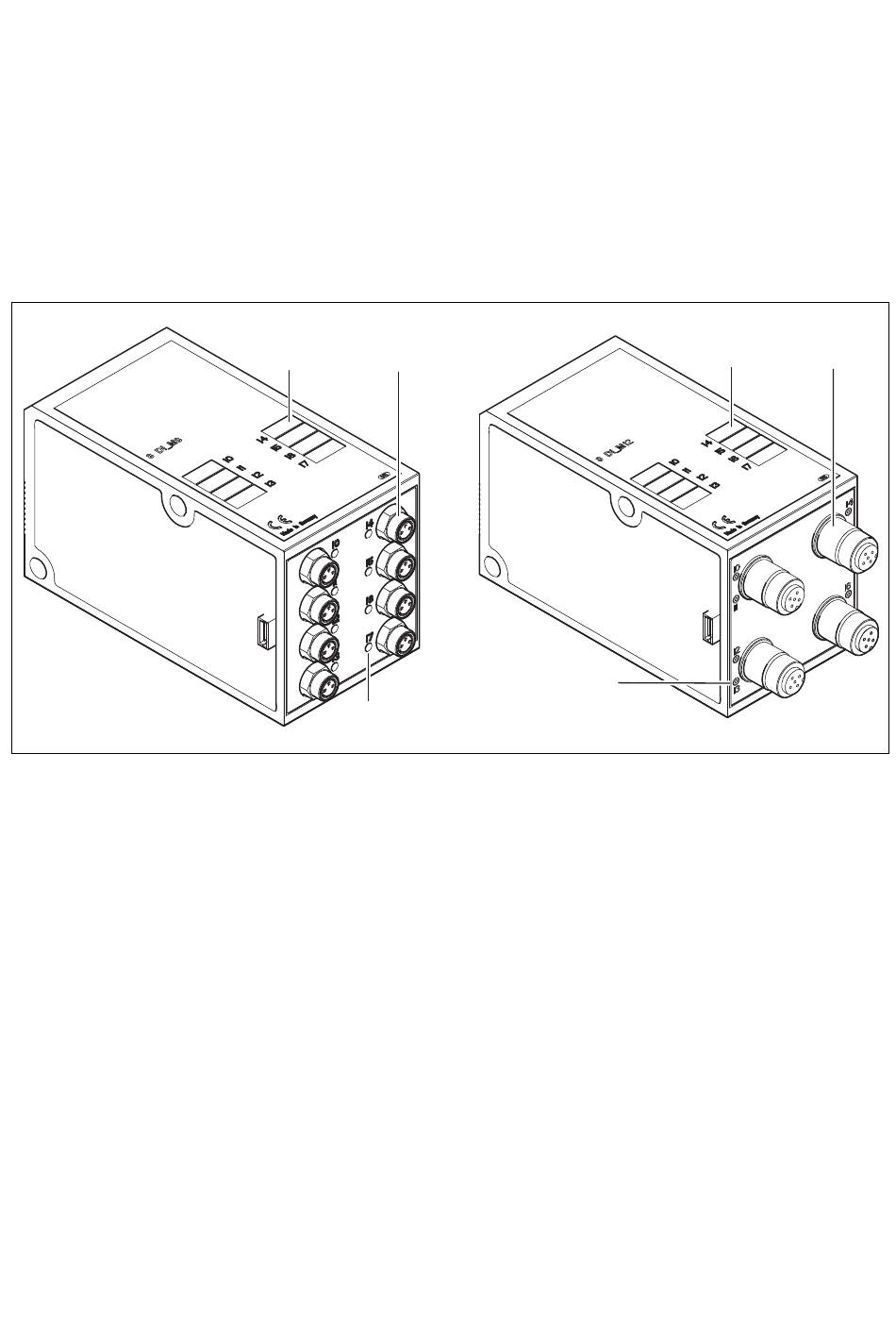

Fig. 3: 8x input module: RMV04-8DI_M8 (left) and RMV04-8DI_M12 (right)
1 Label
2 RMV04-8DI_M8: 8 inputs, 8DI_M8
RMV04-8DI_M12: 4 inputs, 8DI_M12, double-assigned
3 LED (yellow, status) for each input
4.4.3

Input modules

The input modules used to connect electric sensor signals are
available in two versions:
W
8x M8 (RMV04-8DI_M8) or
W
4x M12, double-assigned (RMV04-8DI_M12)
1 2
3
1
3
2
