Dimensions; Labeling The Module - Aventics HF03 LG Mode D'emploi

58 AVENTICS | EtherCAT | R412012792–BDL–001–AB
Assembly
33

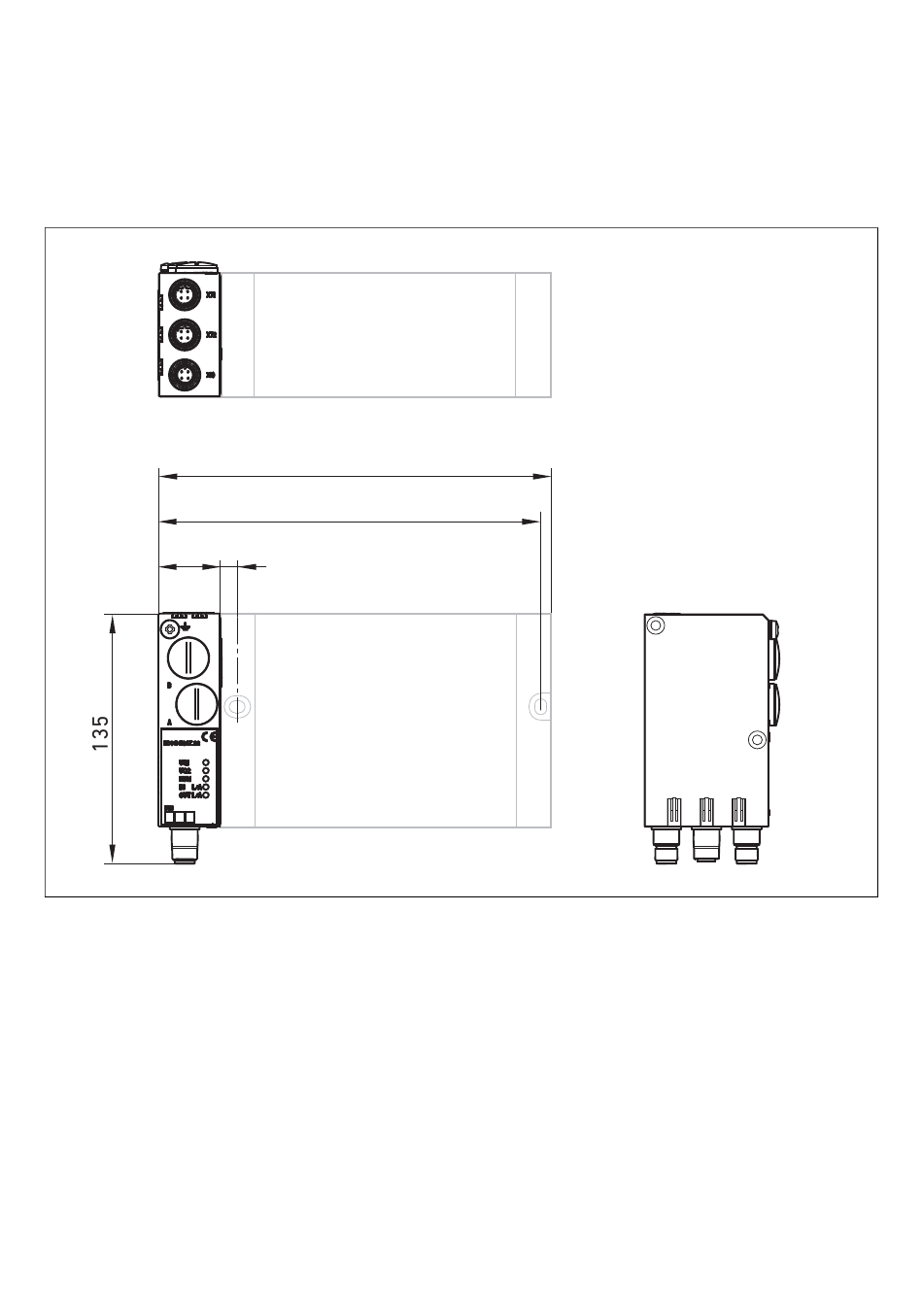

Fig. 3: Dimensioned drawing of the valve system (bus coupler and valves)
Bus coupler
The dimensions of the complete VS vary according to
module equipment (see Fig. 3).

6.1.1 Dimensions

A + 33
B + 33
9
Dimensions A and B depend on the valve block used.

6.2 Labeling the module

Inscribe the address provided/used for the bus
O
coupler on the bus coupler in the BTN field.
Slide-in pockets for labels to identify the push-in fittings
are located on the housing (see "Spare parts and
accessories" on page 83).
