Commissioning and operation

7.1.1 Setting diagnostic messages

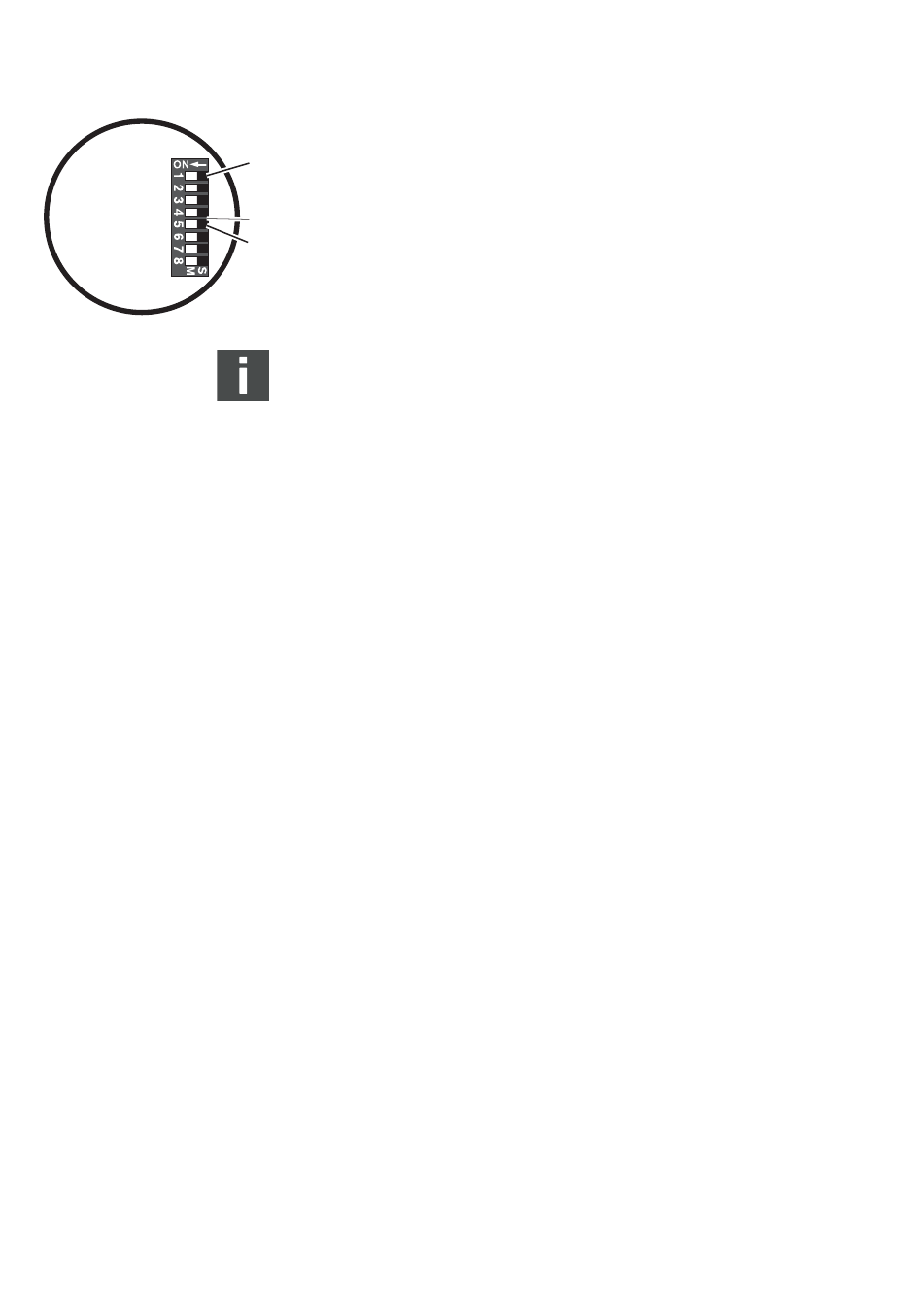

The S1 mode switch used to set the diagnostic messages
S1.1
is located under fitting A.
S1
S1.5
The system is EtherCAT conform on delivery.
Diagnosis is deactivated (S1.1 set to OFF).
The diagnostic messages are transferred to the
control as General Purpose Inputs (GPI).
Activate or deactivate the diagnostic messages of the
O
GPI [10-14] using the switch S1.1.
The modified switch position will only be activated
after a new "power on".
The queued diagnoses are shown on the LEDs even if the
diagnostic message is turned off.
