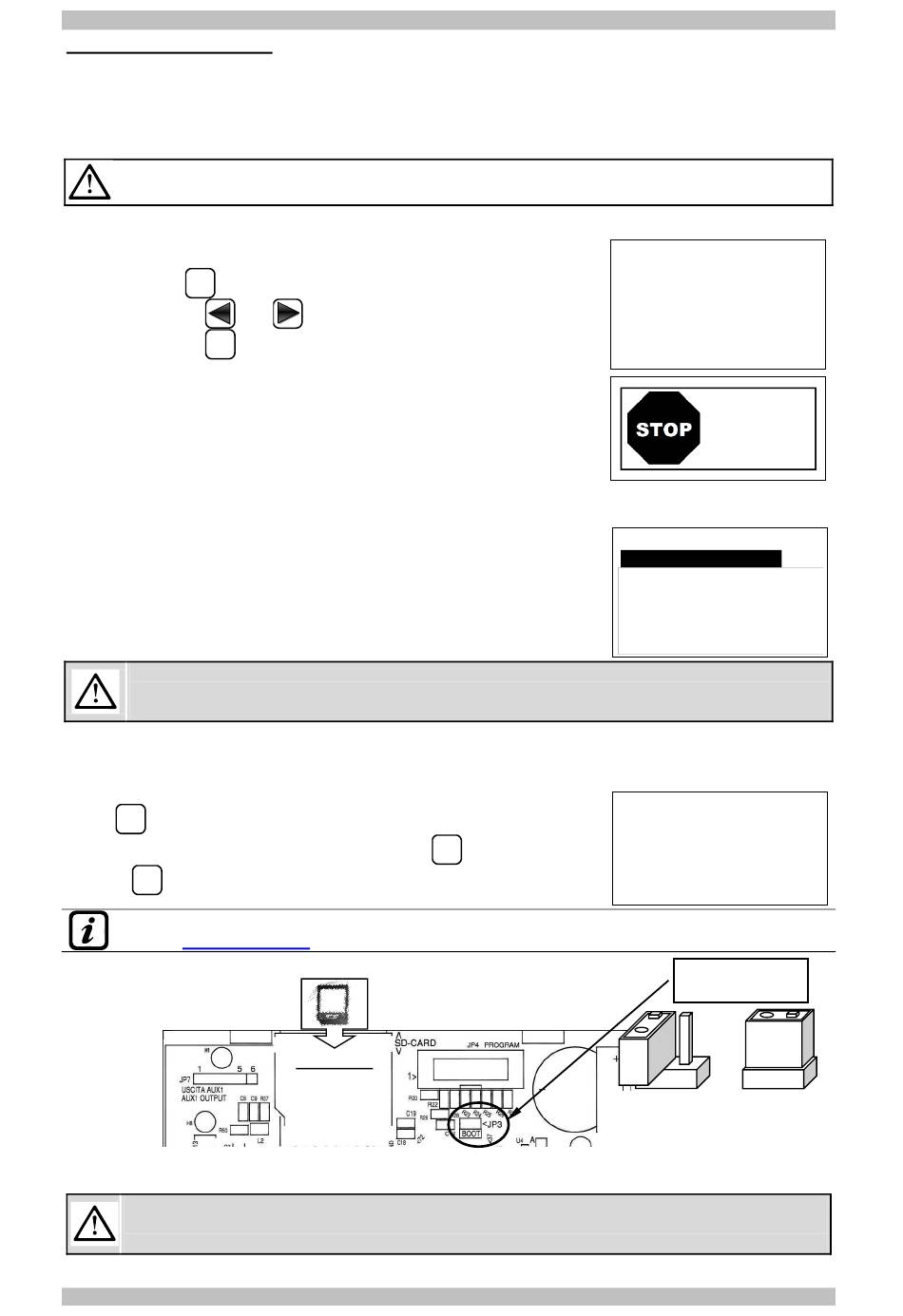

TEST BAT. (Test Battery):
When set YES, it is activated or indicates that the test is in progress. The test takes about a
minute, and checks, with a load, the proper functioning of the battery. If during the test, the
battery voltage drops below 20.7 VDC, is reported as a Fault (see above), and the battery will not
be recharged. The test will not be activated in the absence of mains or battery.
When set NO, the test indicates that you disable or do not on the battery test.
When Battery Test is active, on the power board, placed in the base of the housing, its LED will
light, (BAT TEST ON). Consider that the two power resistors (load) will heat up during the test.
SERVICE SENSORS STATUS (Level 2):
This item allows you to view the current value of the connected
sensors. Press
on the relevant item. The value of the sensors will
ENTER
be displayed, with
To go back, press
ESC
SERVICE-FACTORY TEST (Level 3)
This item is not accessible, it is reserved for factory settings.
If you try to enter, a message warns you that access is denied.
SD CARD
In this submenu it is possible to manage the SD-Card, after having
inserted it in its seat. The card housing is on the circuit in the cover,
inside the case.
The compatible SD-Cards are of the SD and SDHC type up to 32Gb. SDXCs must be
formatted with FAT32 (max 32Gb). Normally the control unit accepts all SD Cards, however it
is recommended to use those from qualified manufacturers.
UPDATE FW. (Level 2): This item allows you to Update the Firmware of the control unit using the file
loaded on an SD-Card. The file must be downloaded from our website "
DOWNLOAD>SOFTWARE>CE424 Firmware Update area
the
Press
on the relevant item, the procedure to be performed before
ENTER
starting the update will be displayed. Then press
or press
to go back.
ESC
First, move the jumper JP3 in the position "CLOSED" and then insert the SD-Card into
(see below figure
its slot
Scheda posta nel Coperchio.
Board into housing cover.
If the above procedure is correct, the control unit restarts. Otherwise the control unit does not
continue. The control unit checks that there is a valid file on the SD Card for updating. If there
is more than one, the file with the latest version is loaded.
TECNOCONTROL S.r.l. - Via Miglioli, 47 20054 SEGRATE (MI) - Tel. 02. 26 92 28 90 - Fax 02. 21 33 734
CE424P User manual
and
you scroll through all the sensors.
.
12).
Située dans le couvercle du coffret.
SD-CARD
Fig.12-SD-Card insertion
by following the relative instructions.
to start the update
ENTER
JP3 APERTO JP3 CHIUSO
JP3 OPEN
JP3 OUVERT JP3 FERME
Pag. 37/52
