Dis T.1634007e
Expansion Board ES415 - Modbus
The connection to a monitoring system via Modbus RTU binary protocol
optional expansion board ES415 (PC-Card Modbus output).
The ES415 board is mounted on the main board, placed in housing cover.
Pay attention, to put the terminals into the connector on the motherboard, making the first, matching
the three click columns with the corresponding holes and then pressing to insert them.
The "H3 (D1)", "GND (Common)," and "L3 (D0)" terminals of the RS485 serial port (COM3) are to be
connected to the supervision system (Master) or dedicated isolated converter (not included).
On standard MODBUS system, all devices are connected (in parallel) on a distribution cable with 3
shielded wires. Two form a balanced pair of twisted conductors, on which the bidirectional data,
typically at 9600 bits per second are transmitted. The third conductor (if used) is the common to all of
the bus devices.
T
O AVOID IRREVERSIBLE DAMAGE
CONTROL UNIT
-
OR RE
CONNECT
LEd Rx COM 3
L3 (D0) = Segnale ModBus / ModBus Signal / Signal ModBus
GND = Negativo (facoltativo) / Negativ (optional) / négatif (facultatif)
H3 (D1) = Segnale ModBus / ModBus Signal / Signal ModBus

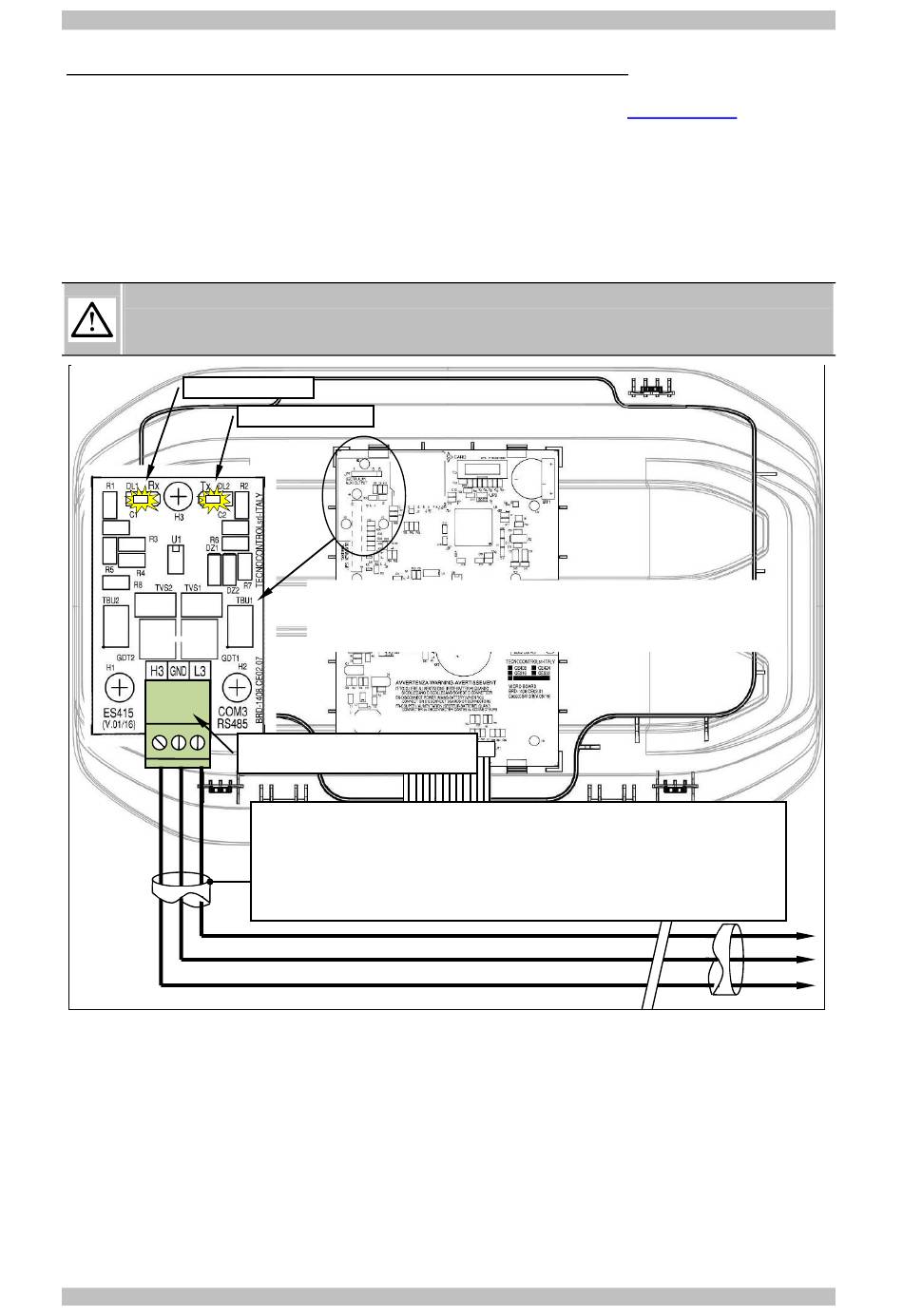

Fig. 8 – ES415 Expansion card with COM3 (RS485) Modbus serial port.
TECNOCONTROL S.r.l. - Via Miglioli, 47 20054 SEGRATE (MI) - Tel. 02. 26 92 28 90 - Fax 02. 21 33 734
CE424P User manual
®
, M
AINS POWER AND
,
ANY EXPANSION CARD
LED Tx COM 3
Posizione scheda (Interno coperchio custodia aperto verso l'alto)
Card location (Internal housing cover opened up)
Emplacement de la carte (couvercle du boîtier interne ouvert)
Terminal /
Morsetto /
Bornier
COM 3 - RS485- Modbus
Cavo per comunicazioni Modbus, del tipo a doppino intrecciato (twisted pair)
schermato con SCHERMO a TERRA (solo lato centrale)
Modbus communications cable, twisted pair type shielded with GROUND SCREEN
(control unit side only.
Câble de communication Modbus, type paire torsadée blindé avec GROUND SCREEN
(côté unité de contrôle uniquement).
,
DISCONNECT THE POWER SUPPLY TO THE
B
(
ATTERY
IF PRESENTS
.
Pag. 14/52
(COM3)
is carried on the
(See Figure
11).
)
BEFORE YOU UNPLUG
