Dis T.1634007e
PRODUCT DESCRIPTION

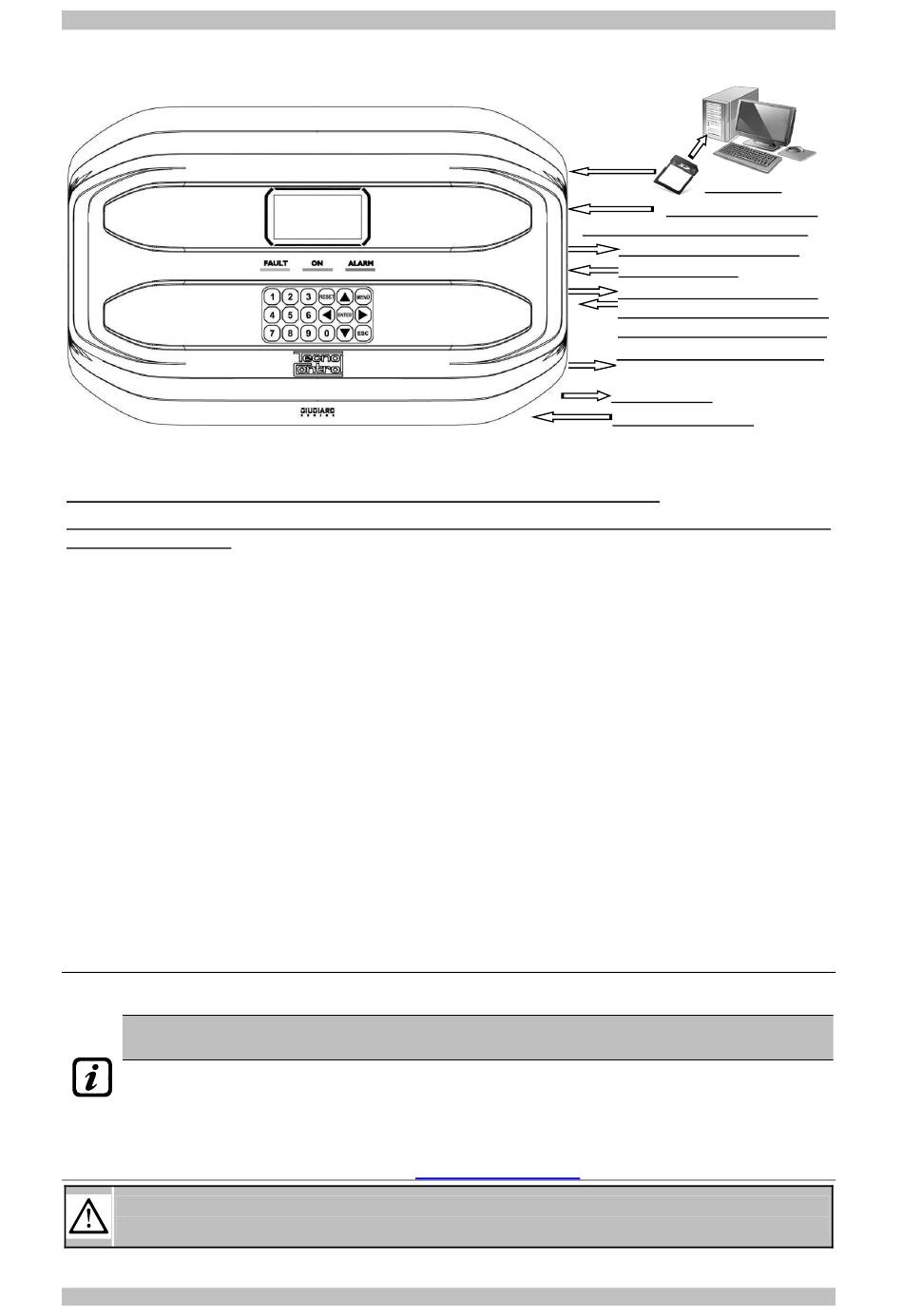

Fig.1 - CE424P - Central wall mounted
The Control unit is wall mount, GIUGIARO DESIGN housing 379x241x133 mm.
The CE424P can be connected up to no.24 of our remote Gas Detectors (Sensors) with three-wire,
4÷20mA linear output: (See List in Table 1)
MODELS WITH "REPLACEABLE CARTRIDGE SENSOR" for:
- Flammable gases with Catalytic sensor (20% LFL range) TS282K(IP65) or TS293K(Ex"d") series.
- Flammable gases with Pellistor sensor (100% LFL range) TS282P(IP65) or TS293P (Ex"d") series.
- Flammable gases with Infrared sensor (100% LFL range) TS293I(Ex"d") series.
- Toxic gases with electrochemical cell TS282E (IP65) or TS293E (Ex"d") series.
- Oxygen with electrochemical cell (25% volume range) TS282EO or TS293EO (Ex"d").
- Carbon dioxide with Infrared sensor TS210IC2 (IP54), TS282IC2 (IP65) or TS293IC2 (Ex"d").
- Parking with dual sensor TS255CB (CO+
- Refrigerant gases with Semiconductor sensor TS282SF (IP65) or TS293SF (Ex"d") series.
MODELS WITH DISPLAY AND WITH "REPLACEABLE CARTRIDGE SENSOR" for:
- Flammable gases with Pellistor sensor (100% LFL range) TS593P (Ex "d") series.
- Flammable gases with Infrared sensor (100% LFL range) TS593I (Ex"d") series.
- Toxic gases with electrochemical cell TS293E (Ex"d") series.
- Oxygen with electrochemical cell (25% volume range) TS593EO (Ex"d").
SHOULD BE CONNECTING ALL MODELS WITHOUT THE REPLACEABLE CARTRIDGE:
Refrigerant gases with Infrared sensor TS282IF (IP42) series.
MODELS WITHOUT REPLACEABLE CARTRIDGE, USABLE ONLY IN NON-INDUSTRIAL
ENVIRONMENTS, for:
- Flammable gases with Catalytic sensor (20% LFL range) SE192K (IP44) or SE193K (Ex"d") series.
-
Toxic gases with electrochemical cell (300ppm CO range) TS192EC(IP44) or SE193EC(Ex"d")
series
May be connected, even discontinued models. Detectors three-wire 4 to 20mA linear for
flammable gases or those two-wire 4 to 20mA linear for toxic gases or oxygen,
Also, from January 2017 the TS282xx (IP65) series, supersede all TS220xx and the TS292xx.
(Example: TS292KM will become TS282KM or the TS220EO will become TS282EO).
Inputs are configurable for 4÷20mA sensors with referred current to ground and operating
characteristics same as our products (unit in %LFL or ppm, minimum operating voltage,
absorption, load resistance etc.).
Available gas detectors: some models of detectors or calibrations for some gases may not yet
be available. We recommend that you contact us for confirmation or for specific requests. e-
N
O LIABILITY IS DISCLAIMED FOR MALFUNCTIONS
ARE NOT COMPATIBLE OR NOT OF OUR PRODUCTION
TECNOCONTROL S.r.l. - Via Miglioli, 47 20054 SEGRATE (MI) - Tel. 02. 26 92 28 90 - Fax 02. 21 33 734
CE424P User manual
Fig.1 - CE424P - Wall mount housing
PETROL vapors
mail:
info@tecnocontrol.it
,
FAILURES OR DAMAGES CAUSED BY PRODUCTS THAT
.
With no.4 or to no.8
remote 4÷20mA gas detectors
No.5 or 9 Relay Outputs
no.1 Logic Input
no.2 RS485 (COM1 e COM2)
up to 16 detectors and 16 relay
outputs, with 2 remotes CE380UR
No.1 RS485 (COM3)Modbus
(with ES415 optional card)
Mains Supply 90÷264 VAC
Batteries (optional)
) or TS255CN2 (CO+NO
Pag. 5/52
SD-CARD
)
