Dis T.1634007e
CONTROL UNIT INSTALLATION
THE FOLLOWING INSTRUCTIONS DESCRIBES ALL THE CONTROL UNIT
SYSTEM SETUP PROCEDURES AND THE INSTALLATION PROCEDURES TO
BE EXECUTED ONLY BY AUTHORISED AND EXPERIENCED STAFF
WARNING: The unit is to be installed in an area protected from direct
sunlight and rain. Please note that for safety the unit is to be installed in safe
areas where there are present or can form flammable atmospheres and
concentrations exceeding 24% volume of oxygen.
CLEANING: To
clean the exterior of the enclosure, use a soft damp cloth with water; do not use
solvents or abrasive cleaners.
POSITIONING:
The unit should be mounted on the wall using 4 screws and wall plugs (Ø 6 mm) or 4
M4 screws and nuts, if the wall is not in masonry. The housing's base must be fixed through the 4
holes, on the sides of the base (Fig.3). The electrical connections should be executed all on the
housing base.
The cover unlocks (with a coin) by turning 90° the 4 buttons located above and below the enclosure. It
is opened by pulling and then rotating it up until it rests at the base.
OPEN – CLOSING THE HOUSING
The housing has two sliding internal hinges. To open the case, you must:
1- With a coin or screwdriver (blade 10-12mm), unlock the 4 closing buttons, turning them 90°
clockwise.
2- Gently, pull the cover outwards of about 4 cm and then rotate it up and place it on the upper edge
of the base housing, in this way remain in the open position.
To close the housing act in reverse order. Pay attention that the cover and the locking mechanism
enter into place. Finally block 4 buttons, turning 90 ° counterclockwise. To facilitate the closure, press
on the lid, the buttons, which are eccentric, will bring the lid to adhere to the base housing.
TECNOCONTROL S.r.l. - Via Miglioli, 47 20054 SEGRATE (MI) - Tel. 02. 26 92 28 90 - Fax 02. 21 33 734
CE424P User manual

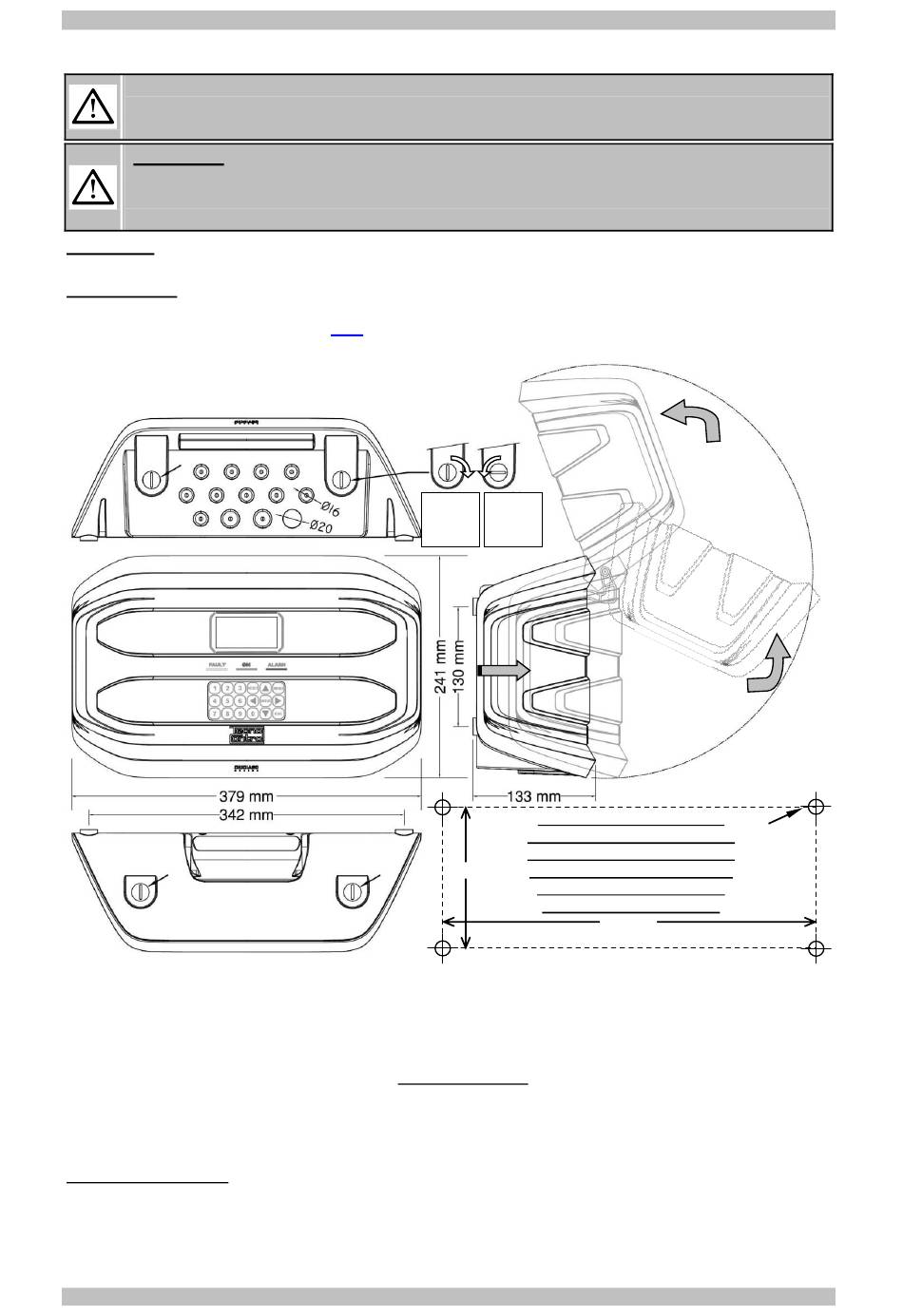

Fig 3 – Dimensions and Template for wall mounting
APRE
CHIUDE
OPENS
CLOSES
OUVERT
FERME
DIMA DI FISSAGGIO A PARETE
n.4 Fori per Tasselli a muro Ø 6mm
TEMPLATE FOR WALL MOUNTING
No.4 holes for wall plugs Ø 6mmn.
130 mm
PATRON DE FIXATION AU MUR
4 Trous pour chevilles Ø 6mm
Pag. 8/52
.
342 mm
