Dis T.1634007e
La Unit has No. 2 RS485 serial ports (COM1 e COM2):
On both ports, 1 or 2 can be connected remote units CE380UR.
COM1
CE380UR
RS485
1
S9
S16
The Unit has No.1 AUX Input, which can be associated with a relay output:
It can be configured to activate one of the available relays and can be used by devices with NO or NC
contact outputs (gas sensors with a relay contact, smoke sensors, buttons, etc.).
Each SENSOR can be configured in two ways quickly and easily:
-
PRECONFIGURED SETUP: Here you can choose one of the models of our production,
(See list in Table 1), which is then automatically set in the configuration recommended by the
respective thresholds and relay outputs. Is enough set the output number (relay) to complete
the configuration. Modifications of the other values are however allowed.
-
GENERIC CONFIGURATION: Here you can configure any type of sensor (compatible or a new
model not yet listed), manually entering all parameters.
RILEVATORI (es.TS282)
DETECTORS (e.g.TS282)
SONDES (par ex.TS282)
S8
S2
S1
Ingresso Logico AUX (es. PULSANTE)
AUX Logic input (eg. BUTTON)
Entrée logique AUX (par ex. BOUTON)
Each SENSOR is protected and has a FAULT signal:
All sensors inputs are protected against short-circuit or wire breakings. If a short-circuit occurs, the
power supply to that input, is automatically stopped (all others continue to work properly). At the same
time, the FAULT signal is activated.
Each SENSOR may be associated with a ZONE:
The sensors can be grouped into Zones (Max No.6), which can associate up to No.2 relay outputs
different for each alarm level and No.1 for the FAULT.
Each ZONE can be set according to operating LOGIC:
The logic used are the typical logic functions (OR, AND), management of adjacent sensors
(CORR.CON, CIRC.CON).
Note that PARK-ITA is a function only for Italy standard (Italian Ministerial Decree DM 01/02/1986
replaced by DM 03/08/2015 and subsequent updates).
The Unit can manage up to No.5, No.9, No.17 or No.25 Alarm relays:
Each sensor has three alarm levels (Threshold 1, Threshold 2 and Threshold 3) and a FAULT, freely
addressable to any relay output. The control unit has no.5 relays already installed, which can be
increased to No.9 with the expansion card ES414, or up to No.17 or No.25 with 1 or 2 Remote Units.
The ALARM THRESHOLDS can be configured with special mode of operation:
For use in car parking "PARKING EN" (EN 50545-1) or to the workplace, such as exposure limit value
TLV.
TECNOCONTROL S.r.l. - Via Miglioli, 47 20054 SEGRATE (MI) - Tel. 02. 26 92 28 90 - Fax 02. 21 33 734
CE424P User manual
COM2
CE380UR
RS485
2
S19
S24

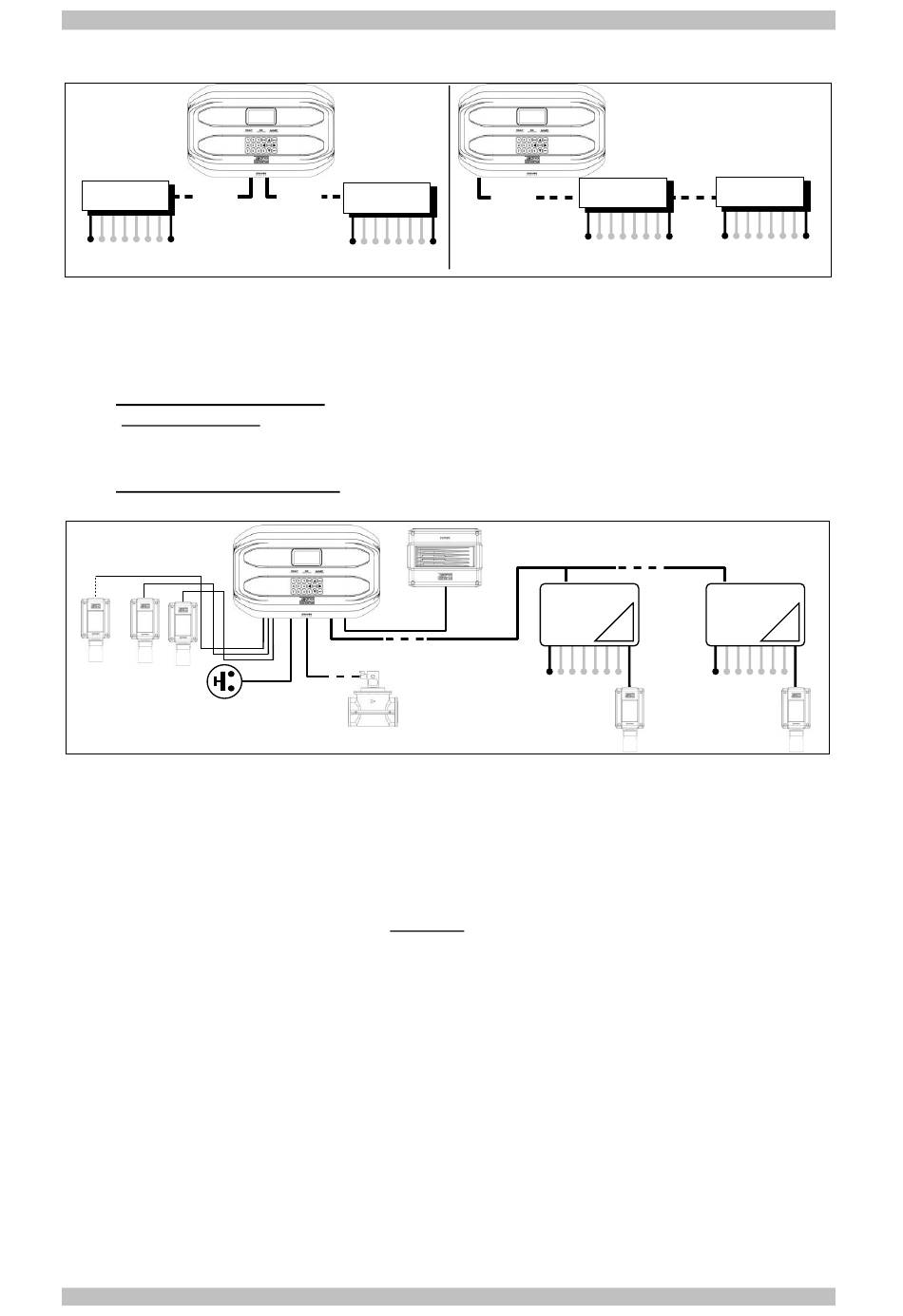

Fig.2 – Eg. installation with TS282 series detectors.
CE380UR
COM1
1
RS485
S9
SE301 SIRENA / SIREN
CE380UR
COM1
1
RS485
S9
Elettrovalvola intercettazione gas
Gas cut-off solenoid valve
Électrovanne de coupure du gaz
Pag. 6/52
CE380UR
2
S19
S24
S16
CE380UR
2
S16
S17
S24
RILEVATORI (es.TS282)
DETECTORS (e.g.TS282)
SONDES (par ex.TS282)
