Dis T.1634007e
If there are incorrect parameters, a warning will appear, in particular:
If the alarm thresholds set, were in contrast with the criteria for the
type of alarm set.
If a same relay output already used and configured, as possible, it
was associated with another level of alarm and / or fault (FAULT) but
with modified operating parameters, compared to those already
configured for the same output.
Then the screen returns to the configuration of the sensor.
If the procedure is correct, the window warns that the operation was
successful; the configured sensor is enabled and active.
Then the screen returns to the choice of the type of configuration.

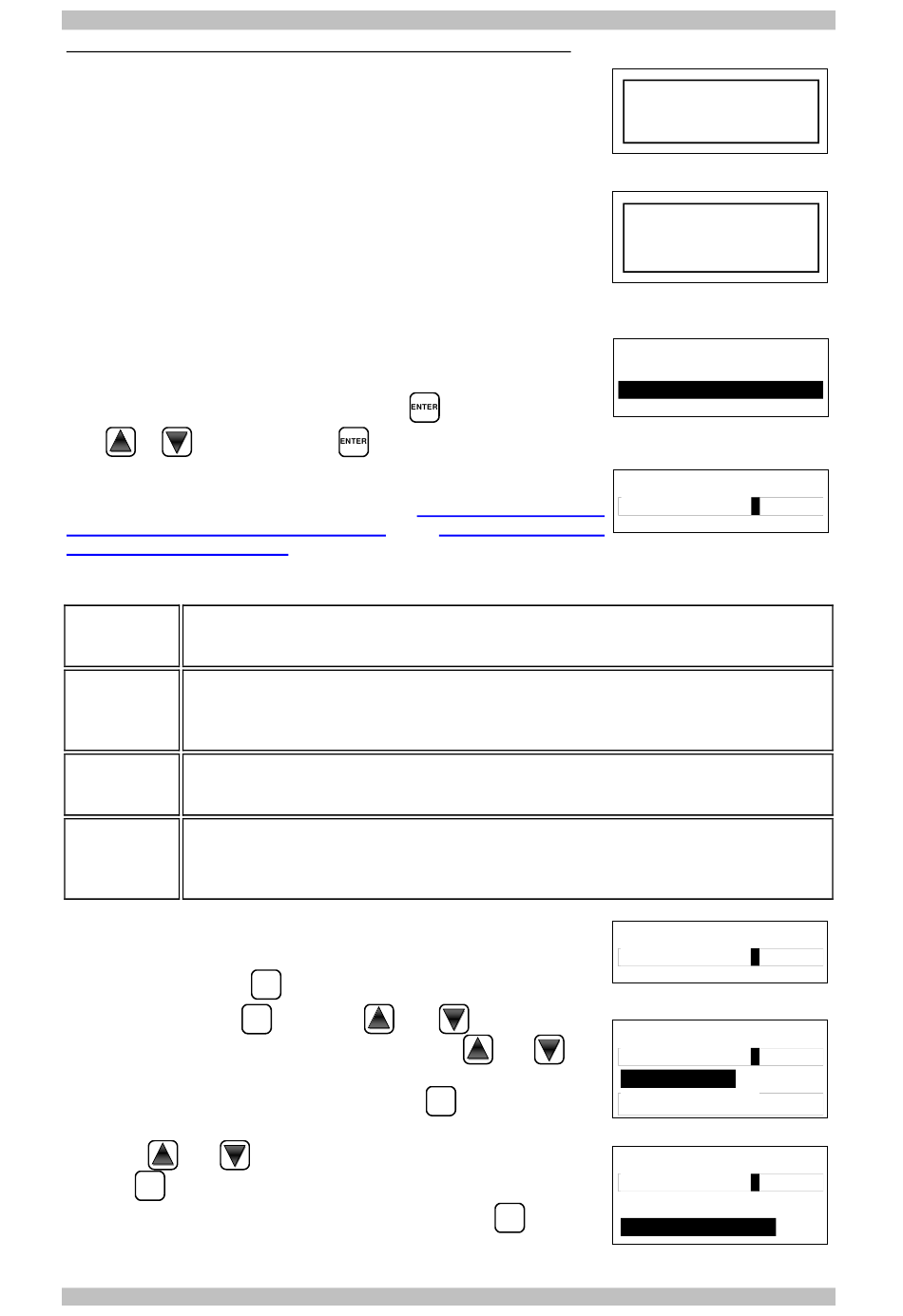

CONFIGURE - GENERIC SENSOR:
This item allows you to manually enter all the parameters, which are
freely editable. This allows you to use compatible products but not of
our production or new models not yet included in the list of pre-
configured ones. To start configuration, press
With
or
and then pressing
the sensor to be configured.
It proceeds in the same way as described in the CONFIGURE
SENSORS chapter, in the paragraphs:
relating to the Preconfigured Sensor
relating to the relay
outputs.
In this case, however, you can also change the following items:
Description of the items relating to the GENERIC SENSORS:
It indicates the gas that the sensor will detect. You can choose between Flammab.
TYPE
(Flammable), Toxic, Vital (e.g. Oxygen), Asphixian. (e.g. CO2 is asphyxiating) and
Refriger. (Refrigerant e.g. R134a).
It indicates the name of the gas for which the sensor has been calibrated. You can
choose between METHANE, LPG, PETROL (Petrol vapours), HYDROGEN,
GAS
VARIOUS (various gases), STYRENE, ACETYLENE, AMMONIA, CO, CO
NO
, SO
2
It indicates the unit of measurement of the concentration detected by the sensor. You
UoM
can choose between %LFL (Lower Flammable Limit), %vol (Volume), ppm (parts per
million), ppb (parts per billion) and °C (temperature in degrees Celsius).
It shows the sensor's full scale. It consists of four digits and you can also set the
decimal point. The numbers allowed, ranging from a minimum of 1, 0.1 or 0.01 up to a
RANGE
maximum of 9999, 99.9 or 9.99. Other values or combinations are not accepted and, if
entered, will display the previous value.
SENSORS-COPY (Level 2):
This item allows you to copy the configuration of a sensor to another
sensor or group of sensors.
To copy a sensor, press
On the screen, press
which Sensor to copy. Press to confirm. Then, with
can choose whether to copy to a single sensor or to a group.
The 1st line acts on a single sensor. Pressing
sensor number will be highlighted.
Then with
and
pressing
the confirmation window will appear.
ENTER
nd
The 2
line instead acts on a group of sensors. Pressing
line will highlight the number of the first sensor in the group.
TECNOCONTROL S.r.l. - Via Miglioli, 47 20054 SEGRATE (MI) - Tel. 02. 26 92 28 90 - Fax 02. 21 33 734
CE424P User manual
you can choose the number of
and
, HCN, OXYGEN, CL
2
on its item.
ENTER
, then with
and
ENTER
you can choose the desired number, then by
on the relevant item.
Descriptions of items
Descrition of items
e HCL.
2
you can choose
and
, you
on the 1st line the
ENTER
on the 2
ENTER
Pag. 26/52
ERROR
CONFIGURATION
CONTROL PARAMETERS
SENSOR
N. 1
ENABLED
SENSORS CONFIG.
1 PRECONF. SENS.
2 GENERIC SENS.
GENERIC SENS.
SENSOR N.
1
, H
2
COPY
SENSOR N.
1
COPY
SENSOR N.
1
ON SENSOR N.
FROM N.
TO N.
COPY
SENSOR N.
1
ON SENSOR N.
nd
FROM N.
TO N.
S, NO,
2
