Assembly
6.2.4 Dimensions for module extension with
relay function
17,5
33
10,5
115

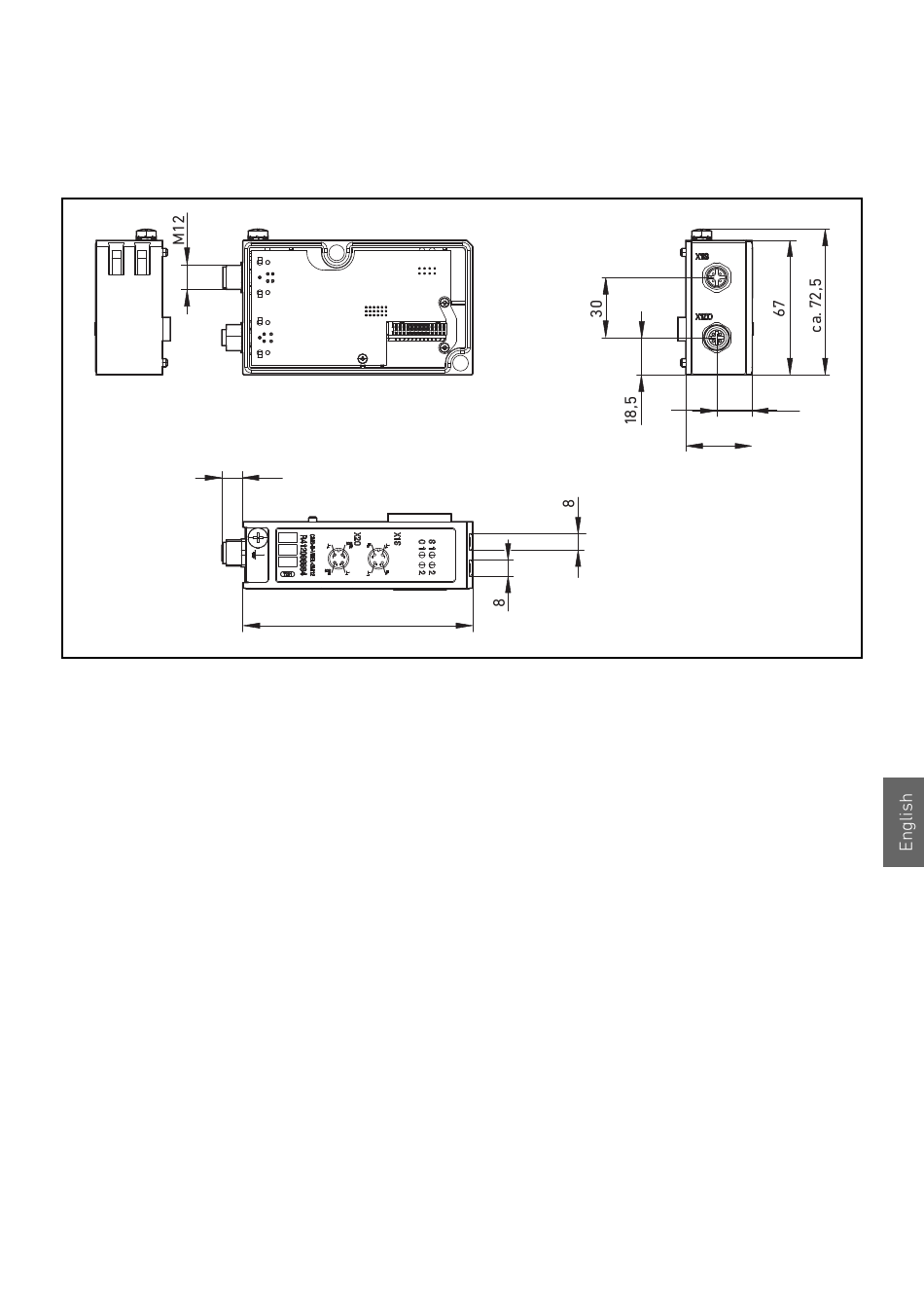

Fig. 11: Dimensioned drawing for module extension R412008694, 2 outputs,
galvanically isolated, with relay function
