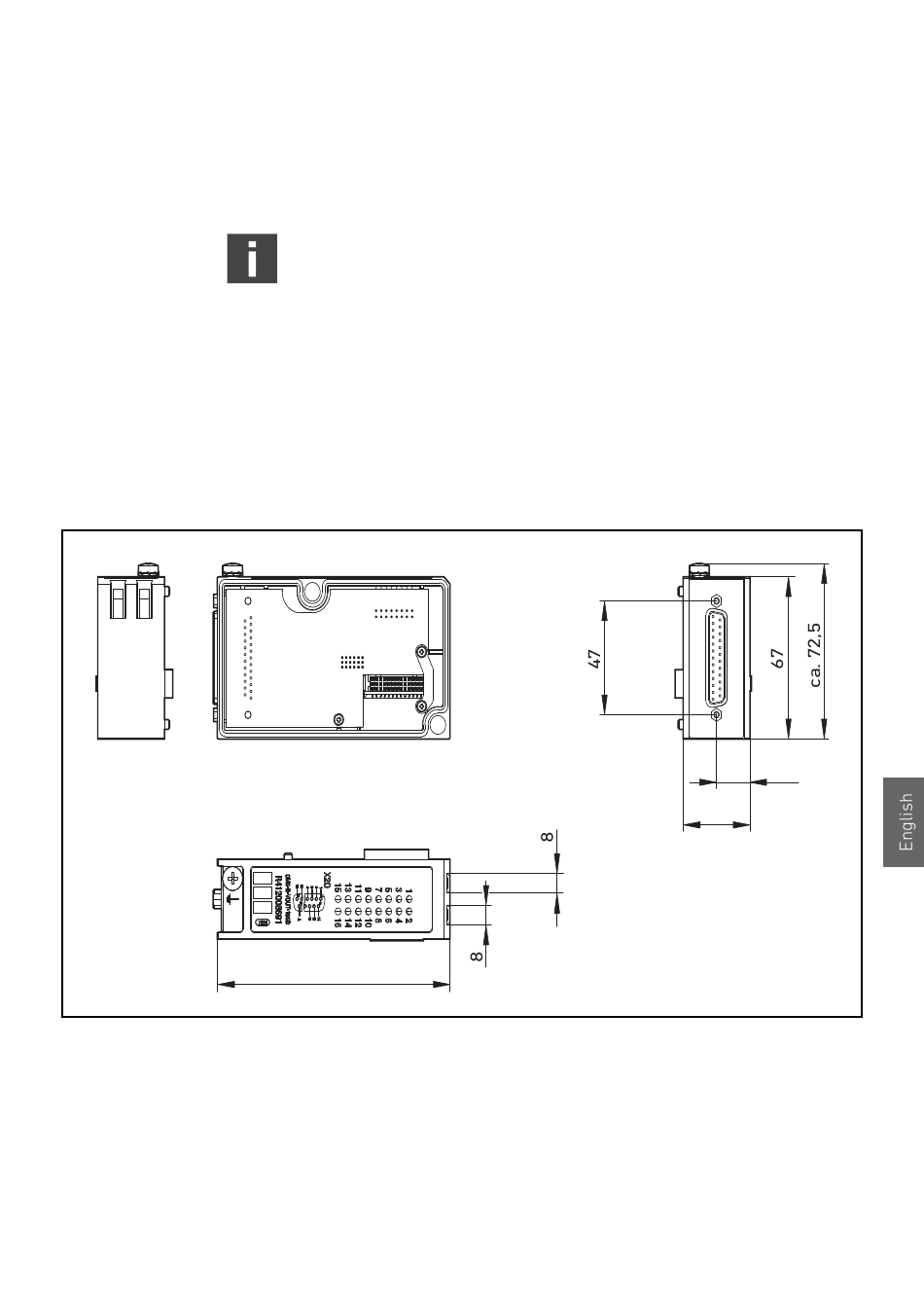

Fig. 8: Dimensioned drawing for module extension R412008691, 16 outputs with
D-SUB connection
Any mounting orientation may be used with the
assembled bus coupler. The dimensions of the complete
module system vary according to module equipment.
Stand-Alone systems with bus coupler and module
extensions cannot be ordered individually. Observe
the information in the corresponding operating
instructions for the installation of the modules.
The relevant installation dimensions of the individual
module extensions are shown as examples in the
following figures.
6.2.1 Dimensions for module extension
16 valve outputs and D-SUB connection
115
The Stand-Alone system can be mounted on a DIN rail
with the "Mounting kit for DIN rail" accessories
(see "Spare parts and accessories" on page 97).
71
Assembly
16,5
33
