Device description

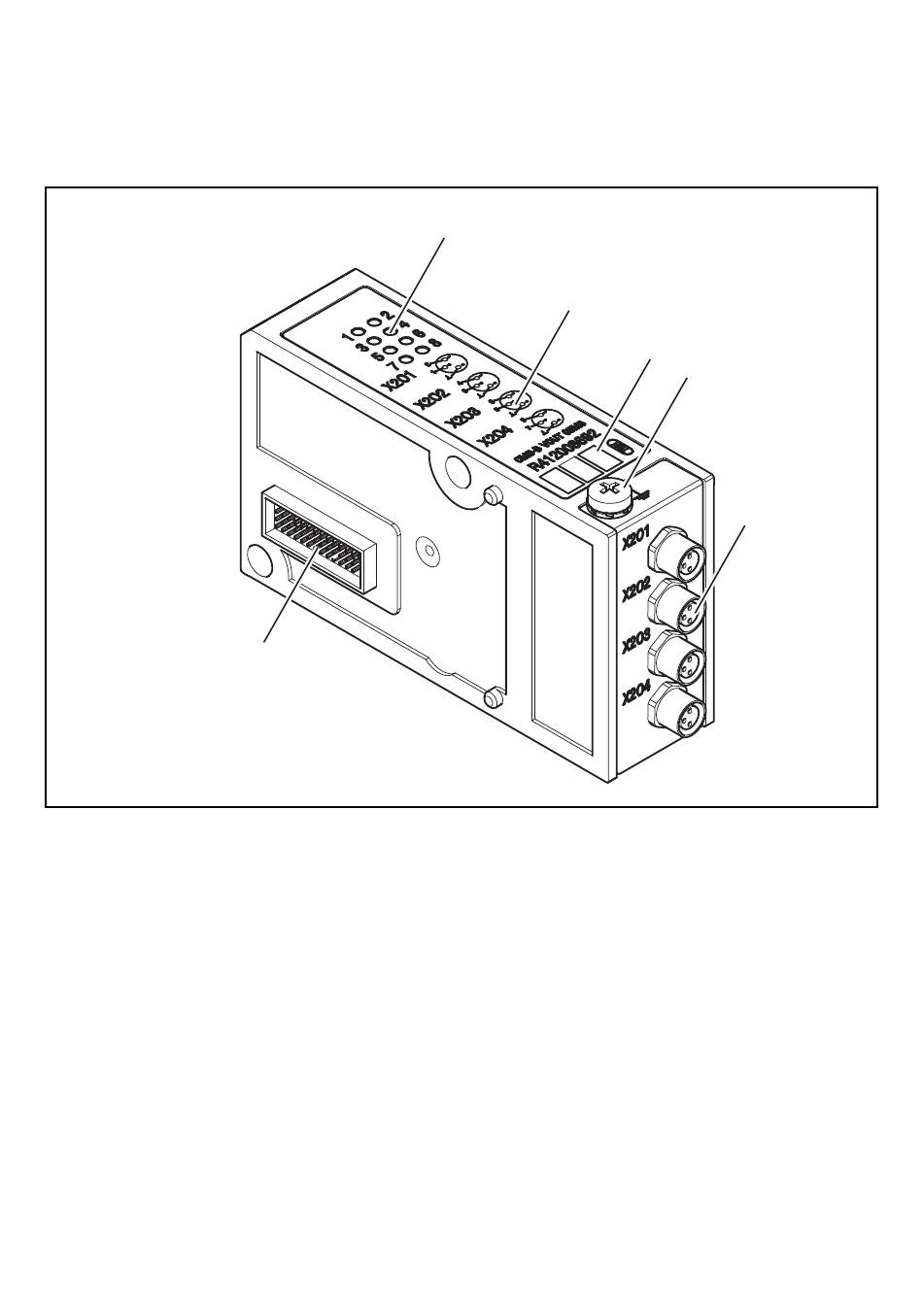

Fig. 6: Module extension R412008692, 4x2 valve outputs with M8 connection
1 LED display for control signals
2 Diagram for plug assignment
3 BTN label areas for bus participants
4 FE connection
5 4x2 valve outputs with M8 connection
6 Plug connection for input signals
5.2.4 Module extension 4x2 with 3-pin M8
connection
6
With the module extension with 4x2 valve outputs, up to
8 valves can be controlled by incoming bus signals.
