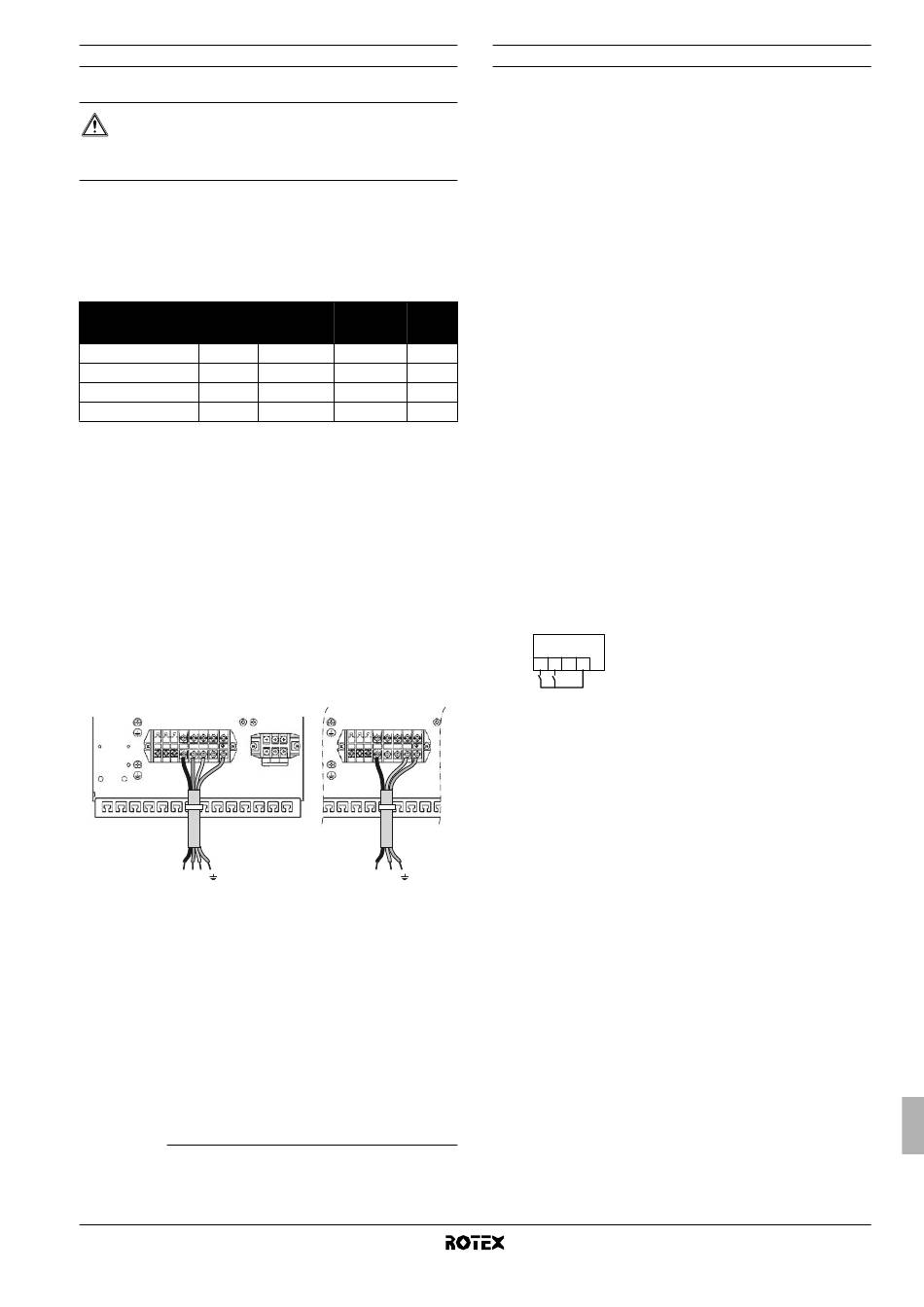

Connection of the backup heater power supply

Power circuit and cable requirements
CAUTION
Use a dedicated power circuit for the backup heater and
(a)
booster heater . Never use a power circuit shared by
another appliance.
(a) Only applicable for tank with built-in electrical booster heater (RKHW*).
This power circuit must be protected with the required safety devices
according to the applicable legislation.
Select the power cable in accordance with the applicable legislation.
For the maximum running current of the backup heater, refer to the
table below.
(1) (2)
Backup
heater
Indoor unit model capacity
RKHB*008BB3V3 3 kW
(a) (b)
RKHB*008BB6V3 6 kW
RKHB*008BB6WN 6 kW
RKHB*008BB9WN 9 kW
(a) Equipment complying with EN/IEC 61000-3-12
(b) This equipment complies with EN/IEC 61000-3-11
impedance Z is less than or equal to Z
sys
user's supply and the public system. It is the responsibility of the installer or user
of the equipment to ensure, by consultation with the distribution network operator
if necessary, that the equipment is connected only to a supply with a system
impedance Z less than or equal to Z
sys
Procedure
1 Using the appropriate cable, connect the power circuit to the
main circuit breaker as shown on the wiring diagram and the
illustration below.
2 Connect the earth conductor (yellow/green) to the earthing
screw on the X1M terminal.
3 Fix the cable with cable ties to the cable tie mountings to ensure
strain relief.
Note: only relevant field wiring is shown.
3x 400 V
X1M
L1 L2 L3 N
L1 L2 L3
(1) European/International Technical Standard setting the limits for harmonic
currents produced by equipment connected to public low-voltage systems
with input current >16 A and ≤75 A per phase.
(2) European/International Technical Standard setting the limits for voltage
changes, voltage fluctuations and flicker in public low-voltage supply
systems for equipment with rated current ≤75 A.
RKHBH/X008BB
Indoor unit for air to water heat pump system
4PW62574-1 – 10.2010
Backup heater Maximum
nominal running
voltage current Z
max
1x 230 V 13 A —
1x 230 V 26 A 0.29
3x 400 V 8.6 A —
3x 400 V 13 A —
(1)
(2)
provided that the system
at the interface point between the
max
.
max
1x 230 V
X1M
X3M
L1 N
L1 N

Connection of the thermostat cable

Connection of the thermostat cable depends on the application.
See also "3.4. Typical application examples" on page 4 and
"8.2. Room thermostat installation configuration" on page 23 for more
information and configuration options on pump operation in
combination with a room thermostat.
Thermostat requirements
■
Power supply: 230 V AC or battery operated
■
Contact voltage: 230 V.
Procedure
1 Connect the thermostat cable to the appropriate terminals as
shown on the wiring diagram and installation manual of the room
thermostat kit.
2 Fix the cable with cable ties to the cable tie mountings to ensure
strain relief.
(Ω)
3 Set DIP switch SS2-3 on the PCB to ON. See "8.2. Room
thermostat installation configuration" on page 23 for more
information.
Connection of the first set point and second set point contacts
The connection of the set point contact is only relevant in case dual
set point contact is enabled.
See also "3.4. Typical application examples" on page 4 and "Dual set
point control" on page 33.
Contact requirements
The contact shall be a voltage free contact that ensure 230 V
(100 mA).
Procedure
1 Connect the contact of first set point and second set point to the
appropriate terminals as shown in the figure below
X2M
1 2 3 4
SP2 SP1
SP1 First set point contact
SP2 Second set point contact
2 Fix the cables with cable ties to the cable tie mountings to
ensure strain relief.
3 Depending on the required pump operation set DIP switch
SS2-3 and field setting [F-00]. See "8.3. Pump operation
configuration" on page 24 and field setting [F-00] in "[F] Option
setup" on page 37.
