SITRANS TS500, type SWS, socket straight well (7MC55..)

∅D External diameter of process connection
B Length of measuring Insert
H Head bottom thickness:
1
Type Axx = 41 (1.61)
Type Bxx = 26 (1.02)
N Nominal lenght

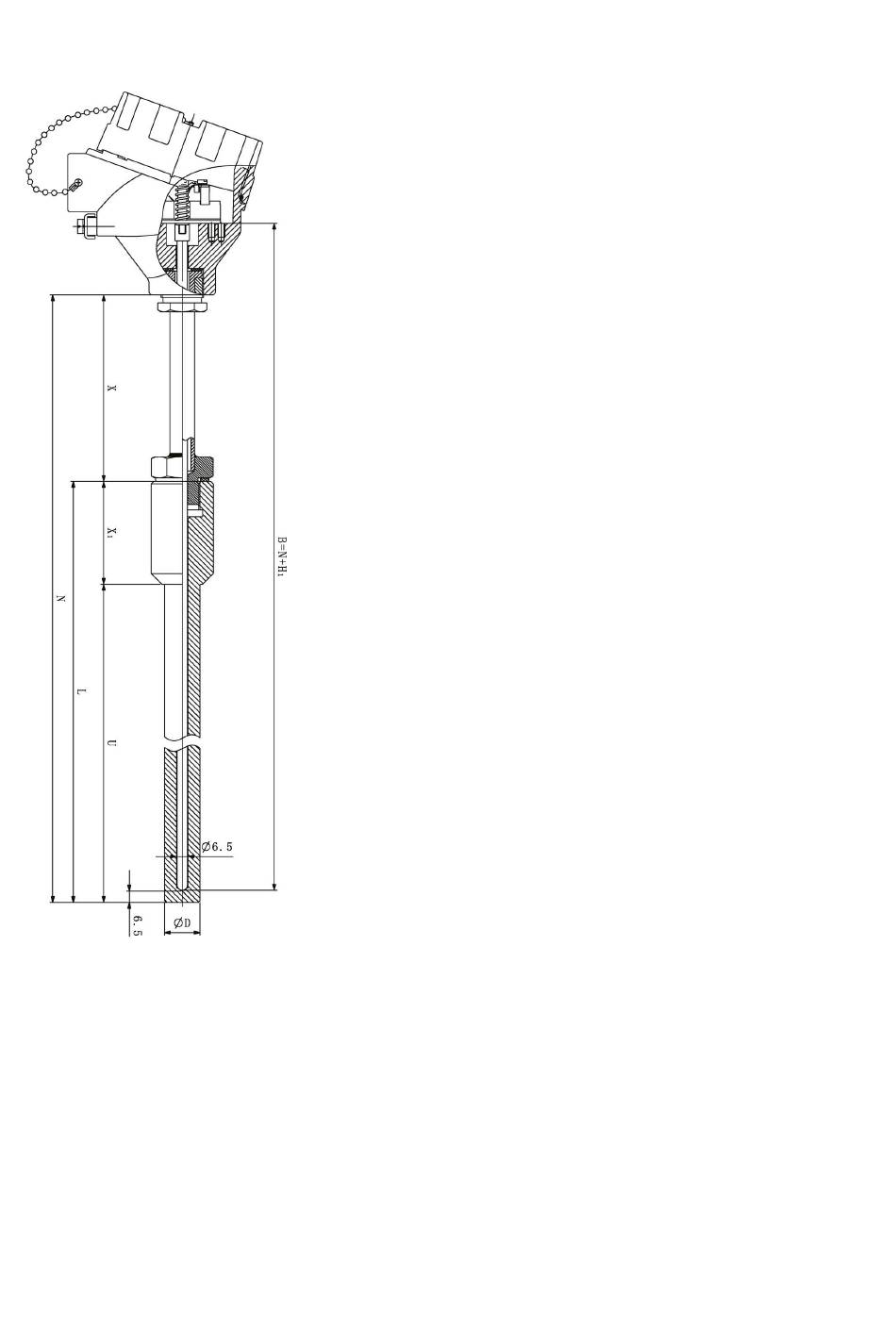

Image 9-24 Dimensional drawings SITRANS TS500, type SWS, socket straight well (7MC55...)
SITRANS TSinsert/TS100/TS200/TS300/TS500 (7MC71.. 7MC72.. 7MC80.. 7MC75.. 7MC65.. 7MC55..)
A5E03920348-AB, 03/2016
U Mounting length
X Extension
X Lag lenght
1
L Length of thermowell
