9.5.24 SITRANS TS500 for installation in existing protective tubes
①

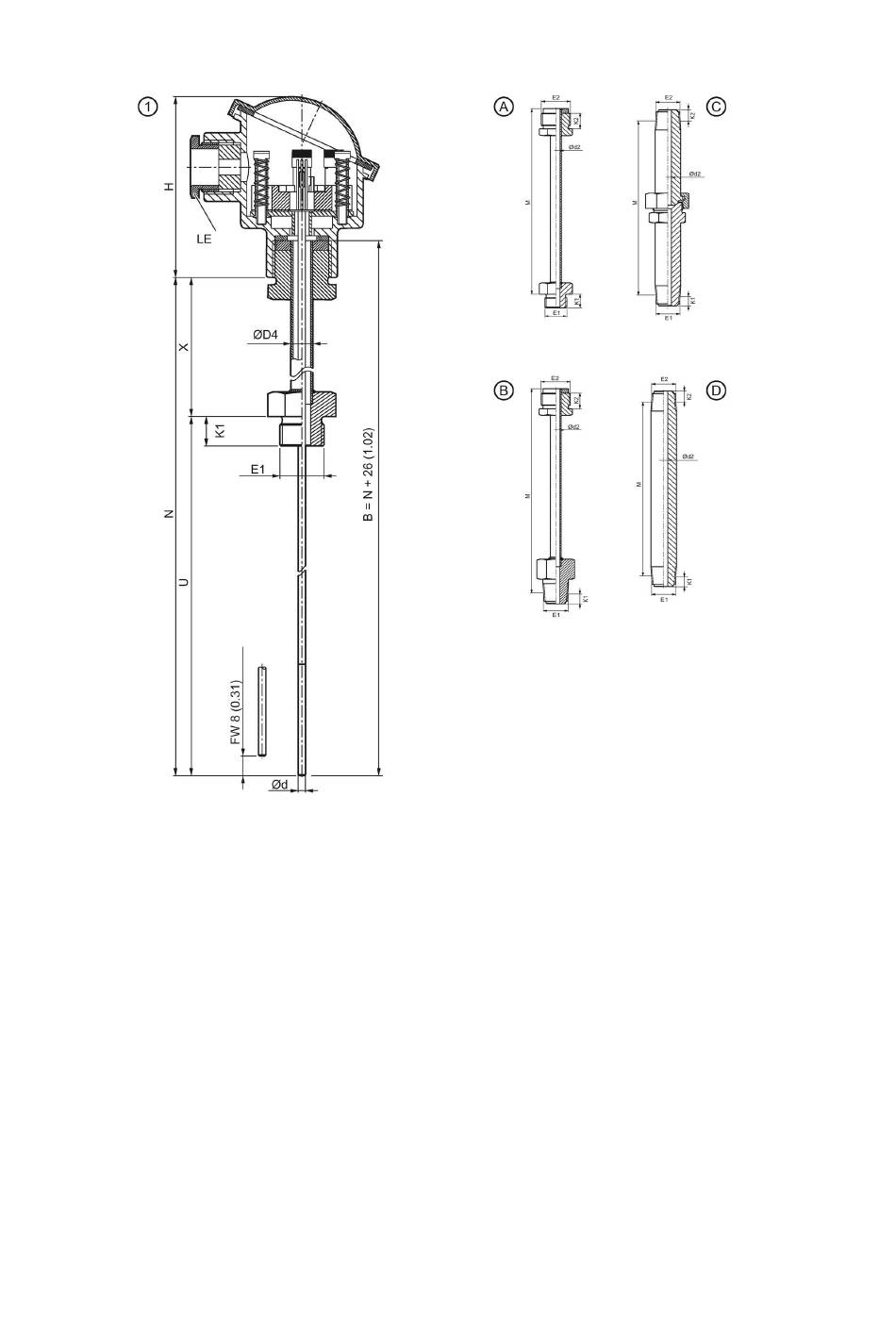

SITRANS TS500 for installation in existing protective tubes
Ⓐ Extension tube, DIN G
Ⓒ Extension tube, NUN
B Length of measuring insert
∅d External diameter of measuring insert
∅D4 External diameter of extension
E1 Thread dimension of process connection
FW Spring excursion
H Height of head
Image 9-27 Dimensional drawings SITRANS TS500 for installation in existing protective tubes - dimensions in mm (inch)
62
SITRANS TSinsert/TS100/TS200/TS300/TS500 (7MC71.. 7MC72.. 7MC80.. 7MC75.. 7MC65.. 7MC55..)
Ⓑ Extension tube, NPT
Ⓓ Extension tube, nipple
K1 Penetration depth
LE Cable inlet
N Nominal length
U Mounting length
X Extension
A5E03920348-AB, 03/2016
