9.5.6

SITRANS TS500, type ST, threaded tapered well (7MC65..)

∅d External diameter of measuring insert
∅D External diameter of process connection
∅D2 External diameter of tip
X Extension

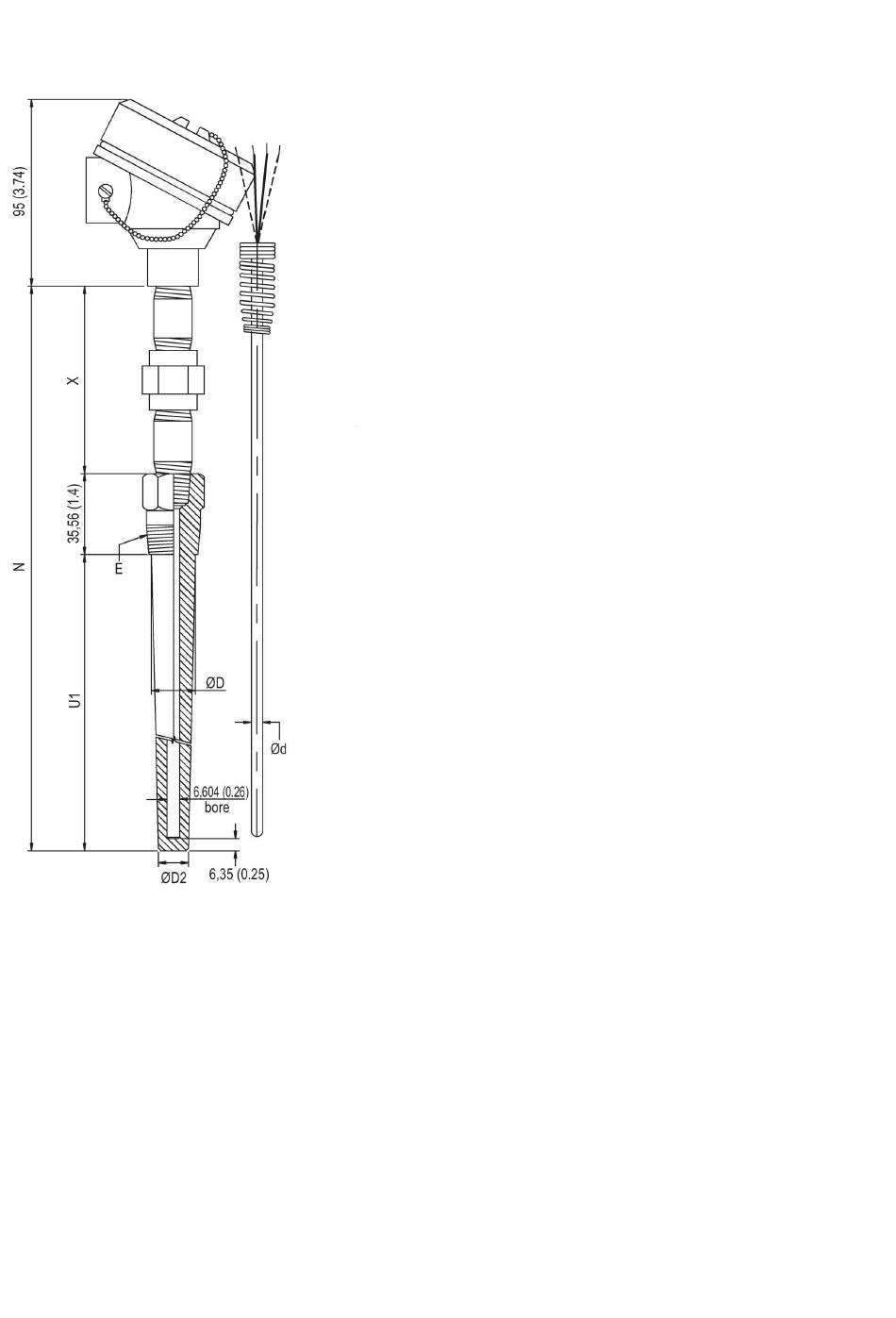

Image 9-9 Dimensional drawings SITRANS TS500, type ST, threaded tapered well - dimensions in mm (inch)
44
SITRANS TSinsert/TS100/TS200/TS300/TS500 (7MC71.. 7MC72.. 7MC80.. 7MC75.. 7MC65.. 7MC55..)
E Thread dimension of process connection
N Nominal length
U1 Unsupported length
A5E03920348-AB, 03/2016
