3.7 Connection heads for SITRANS TS500
The transmitters can be mounted in connection heads of type B and bigger. The following mounting types are possible:
● Measuring insert mounting
– Standard type with compact design
– Measuring insert (sensor) and transmitter form one unit
● Hinged cover mounting
– Standard type for connection heads of type BC0: B head with high hinged cover
– Separate maintenance of the measuring insert and the transmitter is possible.
10

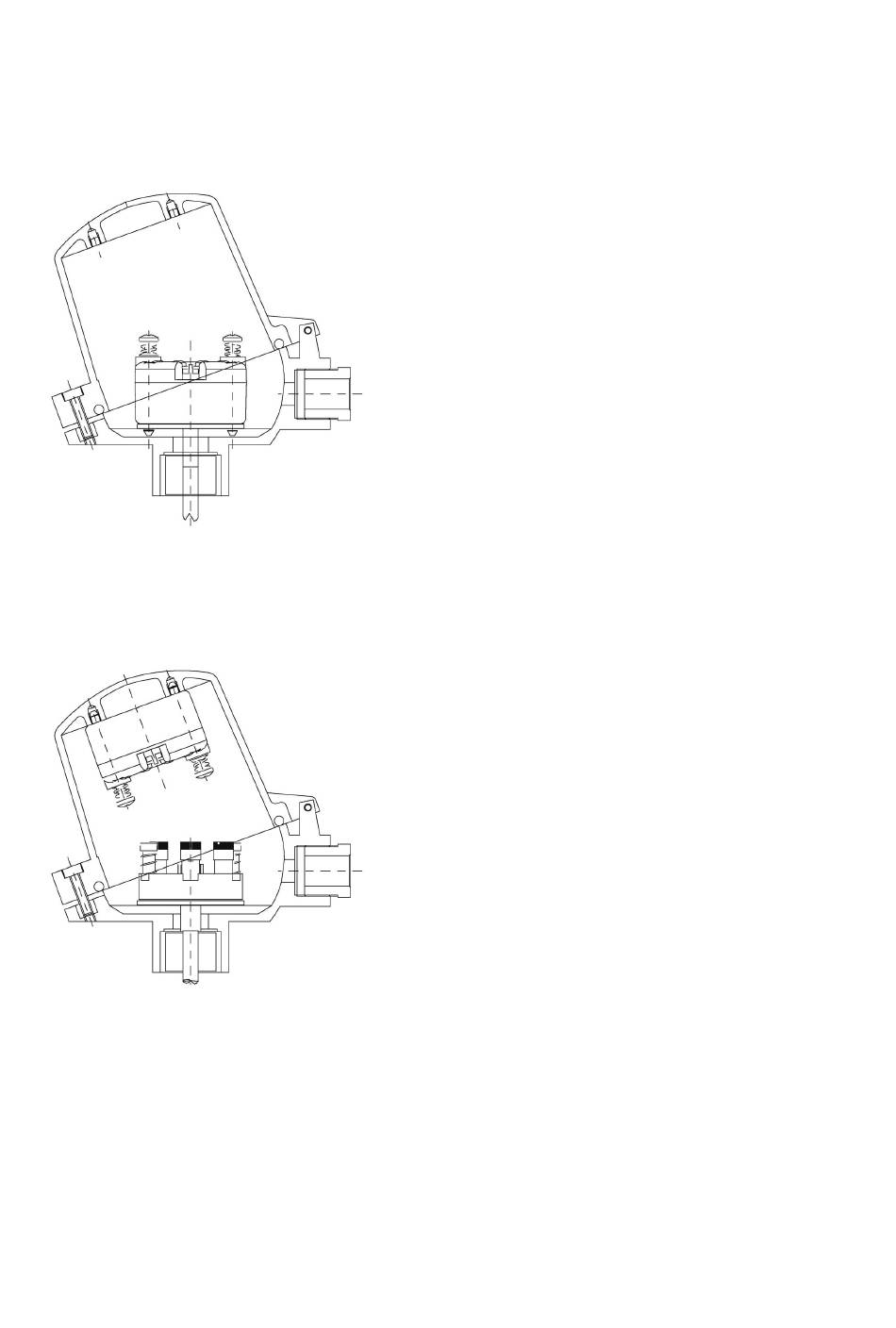

Image 3-1 Measuring insert mounting of transmitter
Image 3-2 Hinged cover mounting of transmitter
