SITRANS TS300 Clamp-on:
①
circular connector M12 x 1
②
transmitter with circular connector M12 x 1
③
stainless steel connection head housing
④
electrical connection ± 170° rotatable
⑤
cable connection M12 x 1,5 cable ∅3-6, 5
pipe ∅ A
4-17.2 (0.16 - 0.68) 20
18-38 (0.71 - 1.5) 30
38.1-57 (1.5 - 2.24) 40

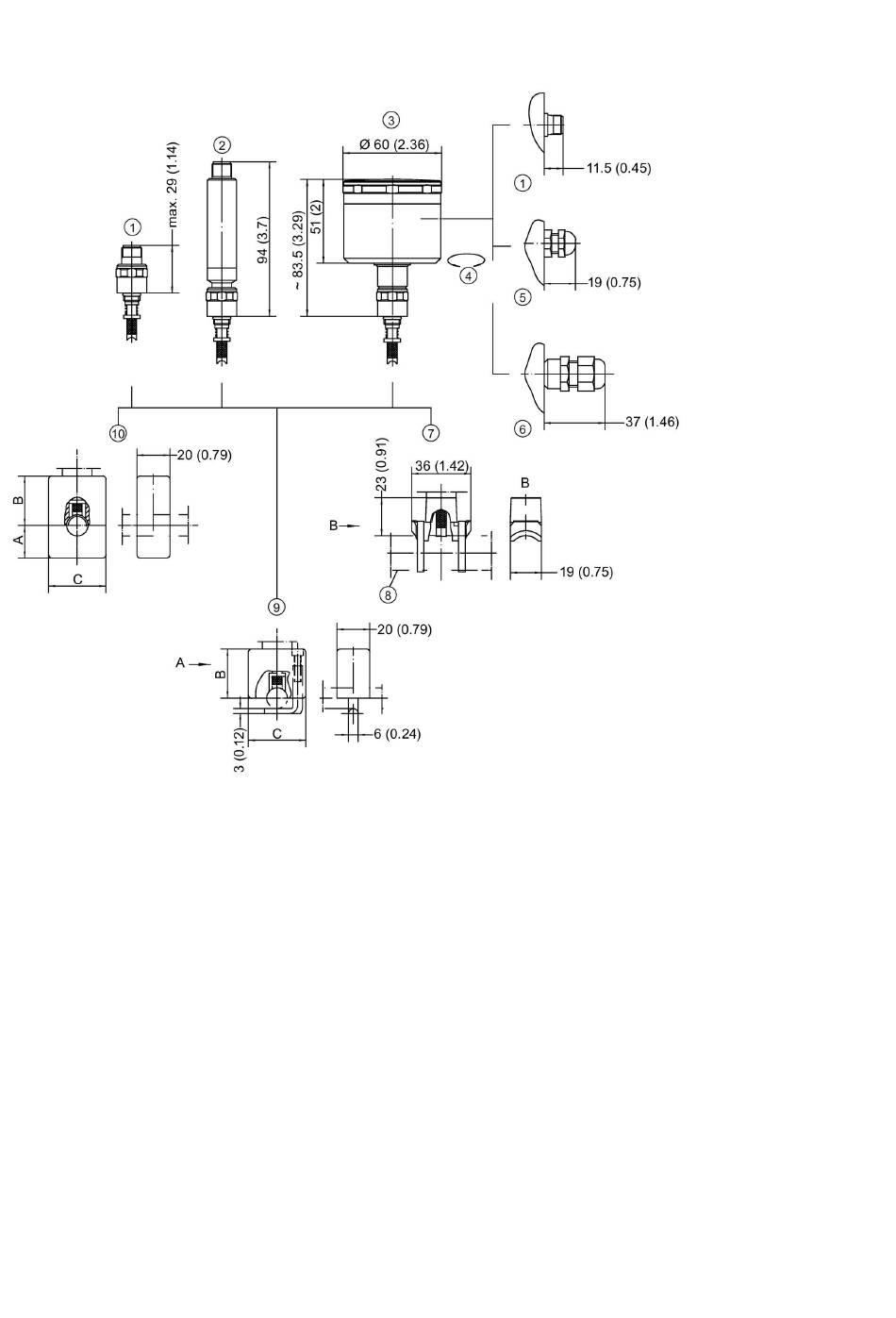

Image 9-3 Dimensions in mm (inch)
38
⑥
⑦
⑧
⑨
⑩
B C
30 35
40 70
50 85
SITRANS TSinsert/TS100/TS200/TS300/TS500 (7MC71.. 7MC72.. 7MC80.. 7MC75.. 7MC65.. 7MC55..)
cable connection M16 x 1,5 cable ∅4, 5-10
clamping shoe for pipe ≥ ∅10 - ∼∅300
example ∅21 (0.83)
clamping bracket for pipe ∅4-17, 2
clamping block for pipe ∅4-57
