9.5 SITRANS TS500
9.5.1

SITRANS TS500, types 2 and 2N

①
Type 2, pipe version without process connection
②
Type 2N, pipe version with screw-in nipple
B Length of measuring insert
∅d External diameter of measuring insert
①
∅D To : External diameter of fixing point (6 (0.24))
②
∅D To : External diameter of process connection
∅D3 Internal diameter of protective tube
E Thread dimension of process connection
H Height of head

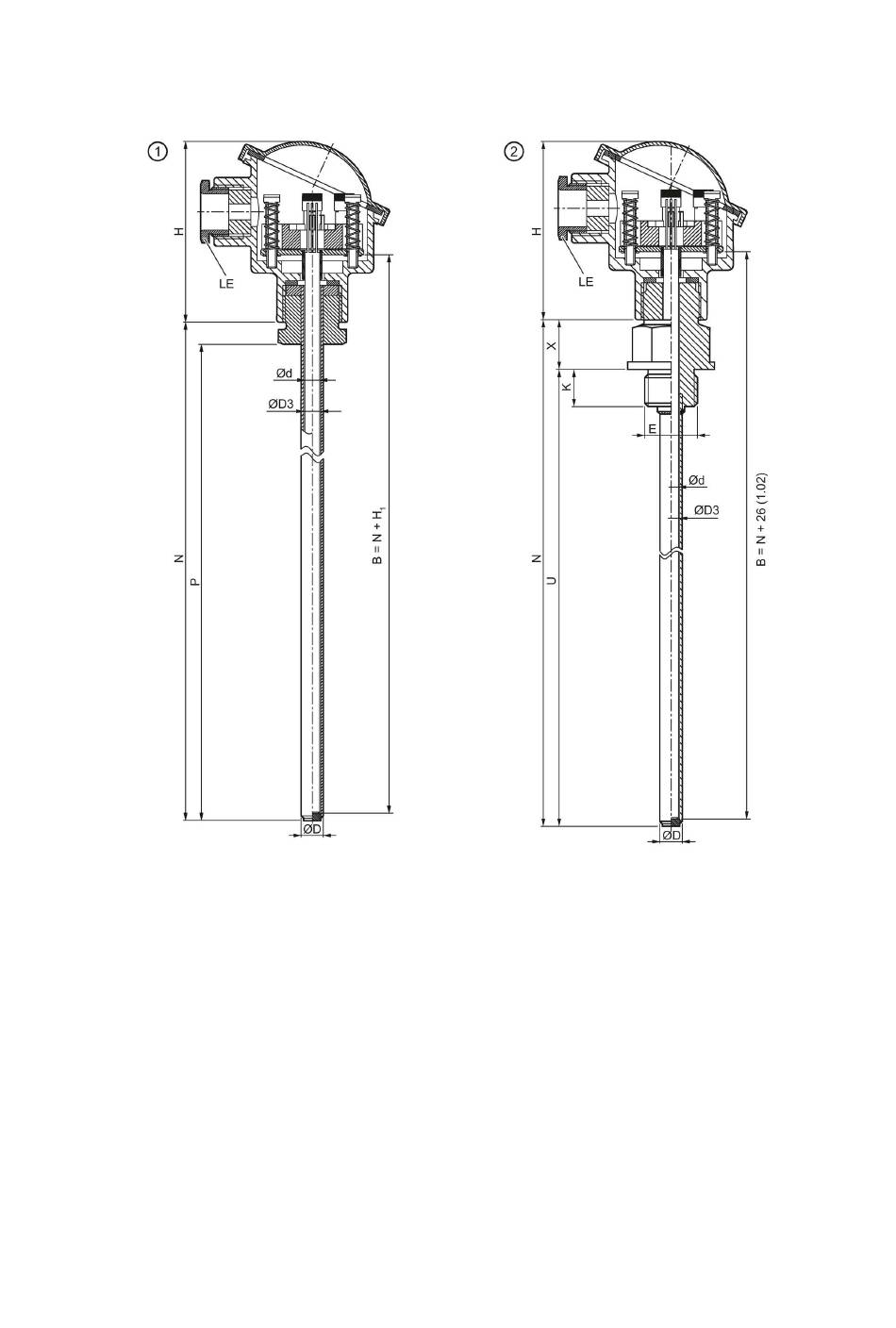

Image 9-4 Dimensional drawings SITRANS TS500, types 2 and 2N - dimensions in mm (inch)
SITRANS TSinsert/TS100/TS200/TS300/TS500 (7MC71.. 7MC72.. 7MC80.. 7MC75.. 7MC65.. 7MC55..)
A5E03920348-AB, 03/2016
H Type Axx: 41 (1.61)
1
Type Bxx: 26 (1.02)
K Penetration depth
LE Cable inlet
N Nominal length
P Space for process connection
U Mounting length
X Extension
