64 AVENTICS | Position Controller | R412004397–BDL–001–AC
Commissioning the position controller
P
v
F
7.3
O
Turn the potentiometer Soll 0% (set point 0%) further to the
right to move the piston's "retracted" position to the center
of the cylinder.
O
Turn the potentiometer Soll 100% (set point 100%) further
to the left to move the piston's "extended" position to the
center of the cylinder.
7.4
The objective of this optimization is to be able to reach the
position as quickly as possible without overshooting it. Whether
overshooting may be permitted in order to attain a shorter
positioning time or due to other criteria depends on the
respective application.
You can recognize piston overshooting, because the LEDs
for the opposite direction will quickly light up on the
position controller.
You can set the "F" area where the piston should be held in its
position to optimize the work area.
You can also set the "P" pulse area. The "P" pulse area is the
distance between the start of the brake phase to the end
position.
s

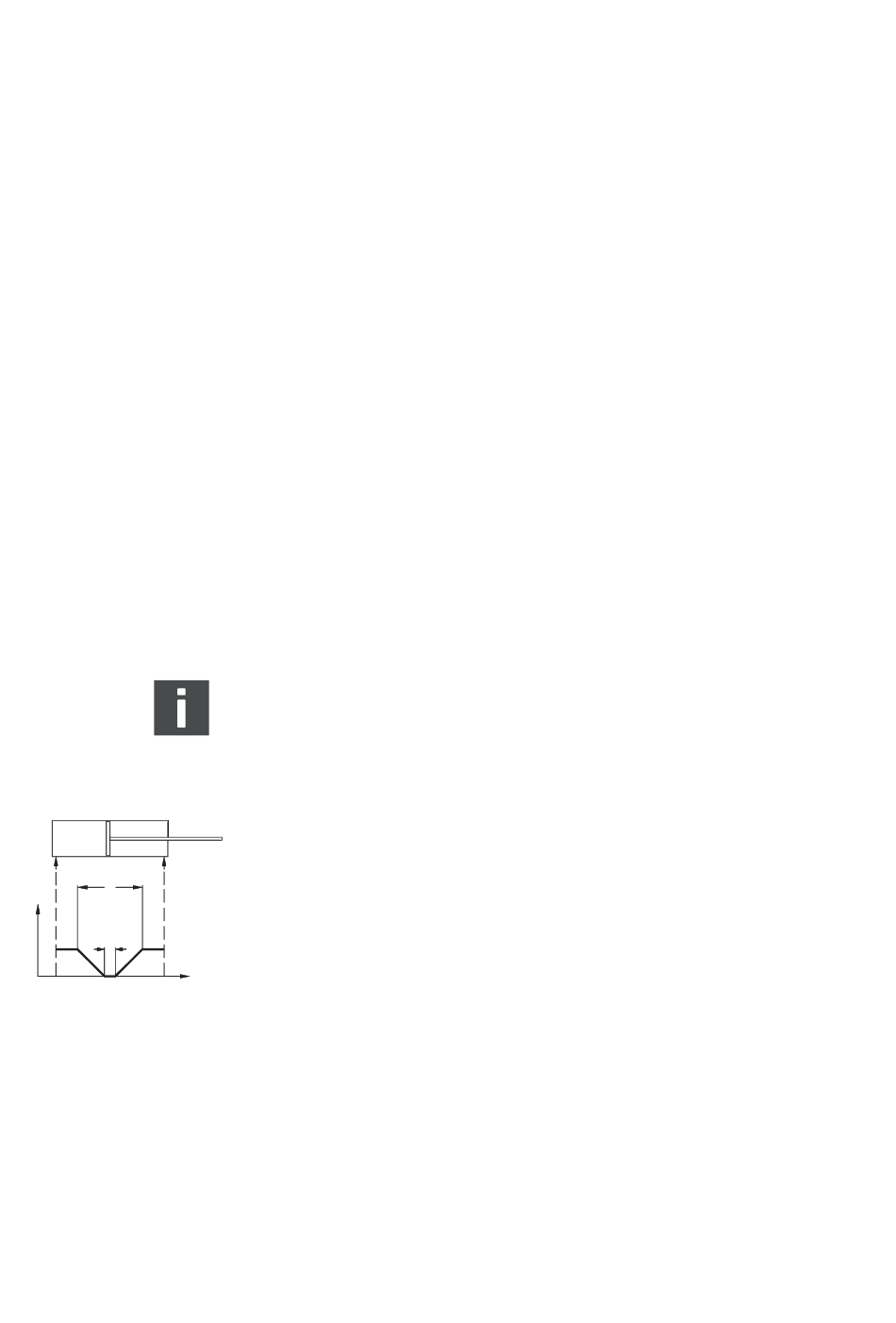

The "F" area and "P" pulse area have the following relationship.

Changing the work area

Optimizing the work area
