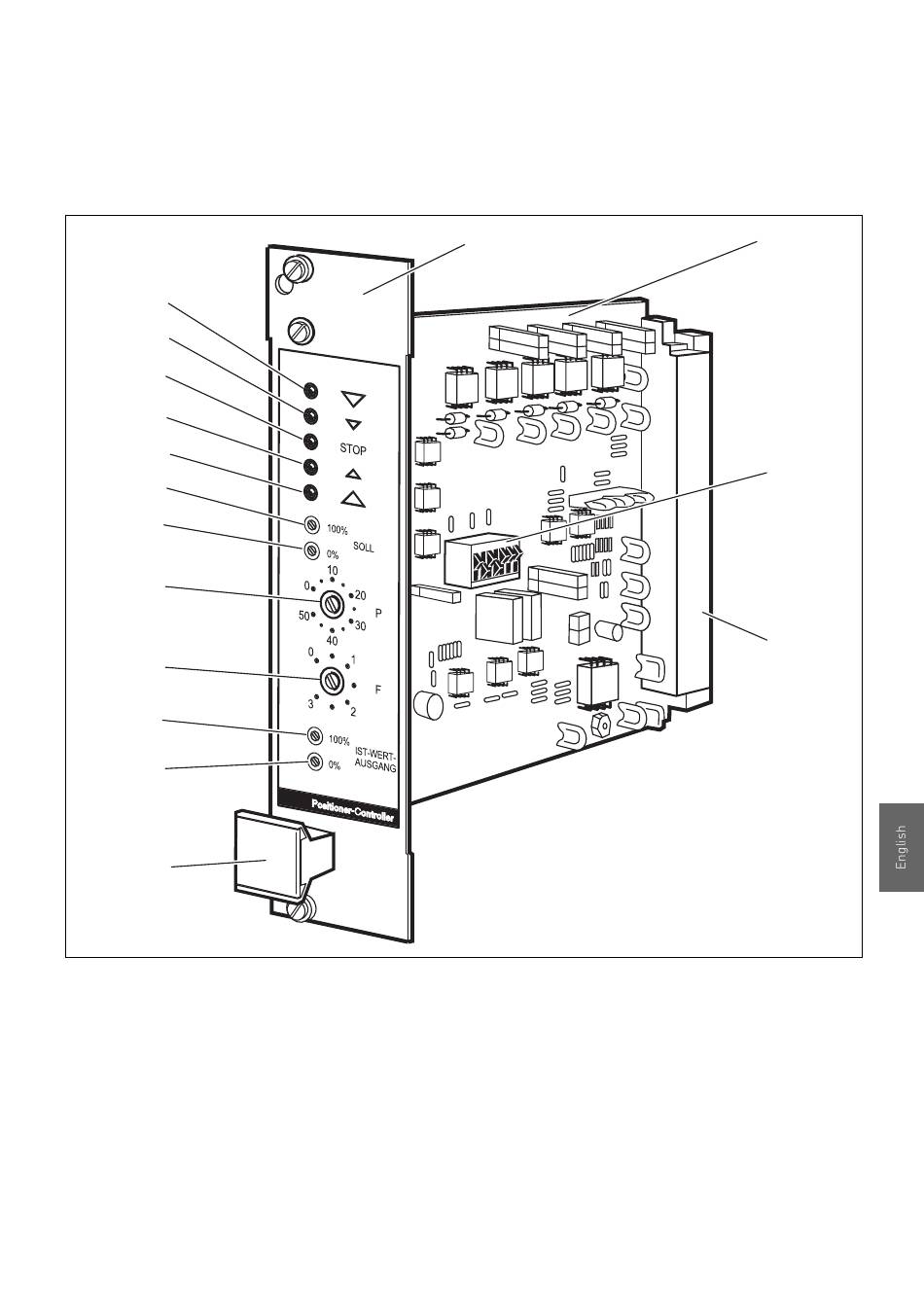

Fig. 3:

Position controller as a 19" assembly

4 Potentiometer act. value output 0%
5 Potentiometer act. value output 100%
7 Red LED rapid speed retraction
8 Red LED creep speed retraction
9 Yellow LED STOP
10 Green LED creep speed extension
11 Green LED rapid speed extension
12 Potentiometer F
AVENTICS | Position Controller | R412004397–BDL–001–AC
5.2 Position controller as a 19" assembly
16
13 Potentiometer set 100%
14 Potentiometer set 0%
15 Potentiometer P
16 Front plate
17 Board
18 DIP switch creep/rapid speed
19 Connection, DIN 4162, form F 32
20 Handle
00122906
55
Device description
