Disassembling, exchanging, and disposing of the position controller

"F" small area
"P" large pulse area
Higher precision
Longer brake phase
Longer positioning time
O

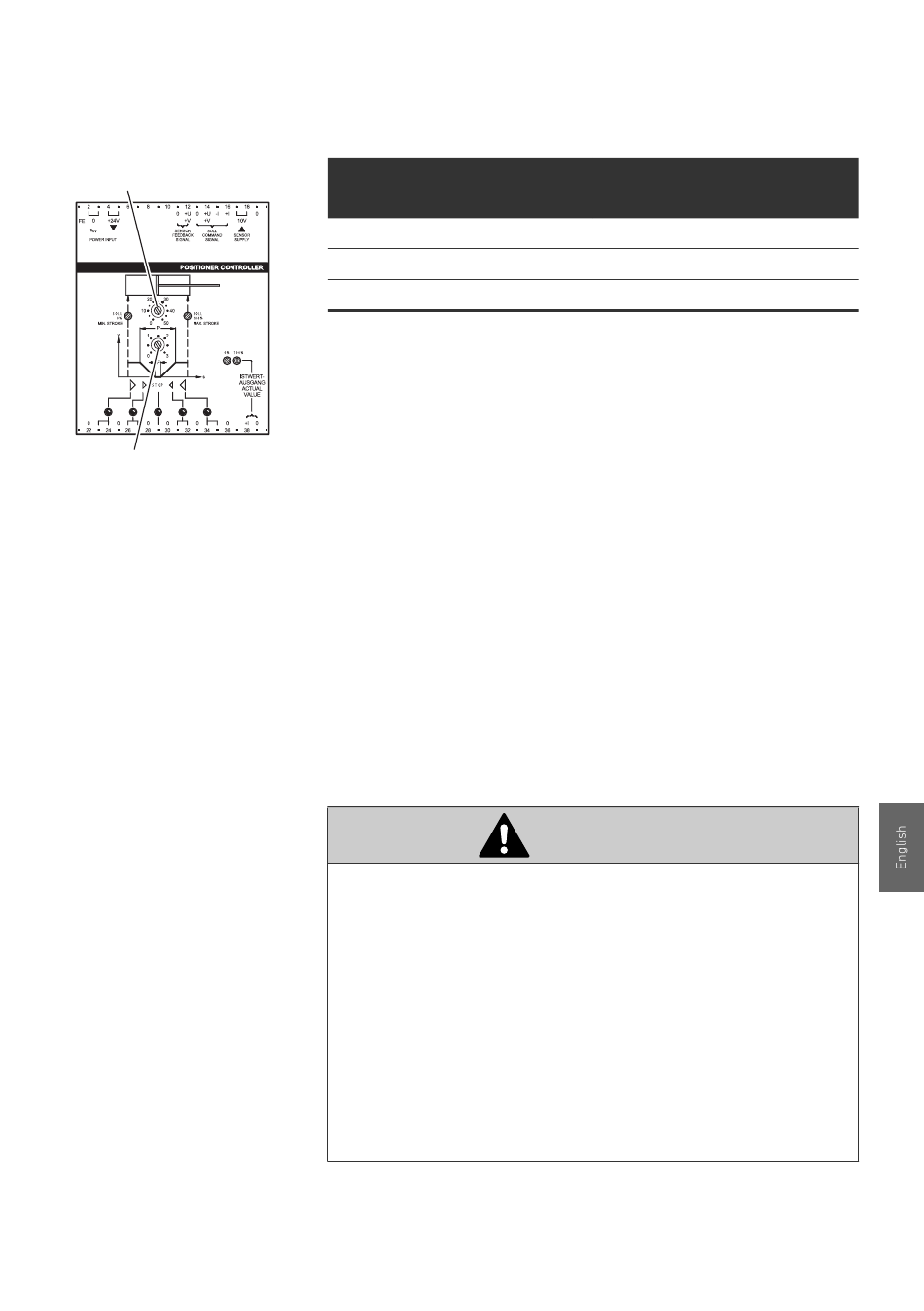

Set the "P" pulse area on the potentiometer P (15) to set the
brake area for the piston.
O
Set the "F" area on the potentiometer F (12) to set the piston
precision.
8 Disassembling, exchanging,
and disposing of the position
controller
8.1 Disassembling or exchanging
the position controller
Danger of injury from uncontrolled cylinder movements
if assembled or disassembled under pressure or voltage!
Severe injuries are possible.
O
Make sure the relevant system component is not under
pressure or voltage before assembling or disassembling
or when connecting and disconnecting plugs.
O
Protect the system against being switched on.
O
When carrying out assembly or disassembly work, hang
signs on the main switch that warn workers against
switching the system on.
"F" large area
"P" small pulse area
Less precision
Shorter brake phase
Shorter positioning time
