AVENTICS | Position Controller | R412004397–BDL–001–AC
10.2 Switching between creep speed
and rapid speed
In the 19" assembly version, size I, the position controller can be
switched between the operating modes "creep speed" and
"rapid speed" with the creep/rapid speed DIP switch (18).
18

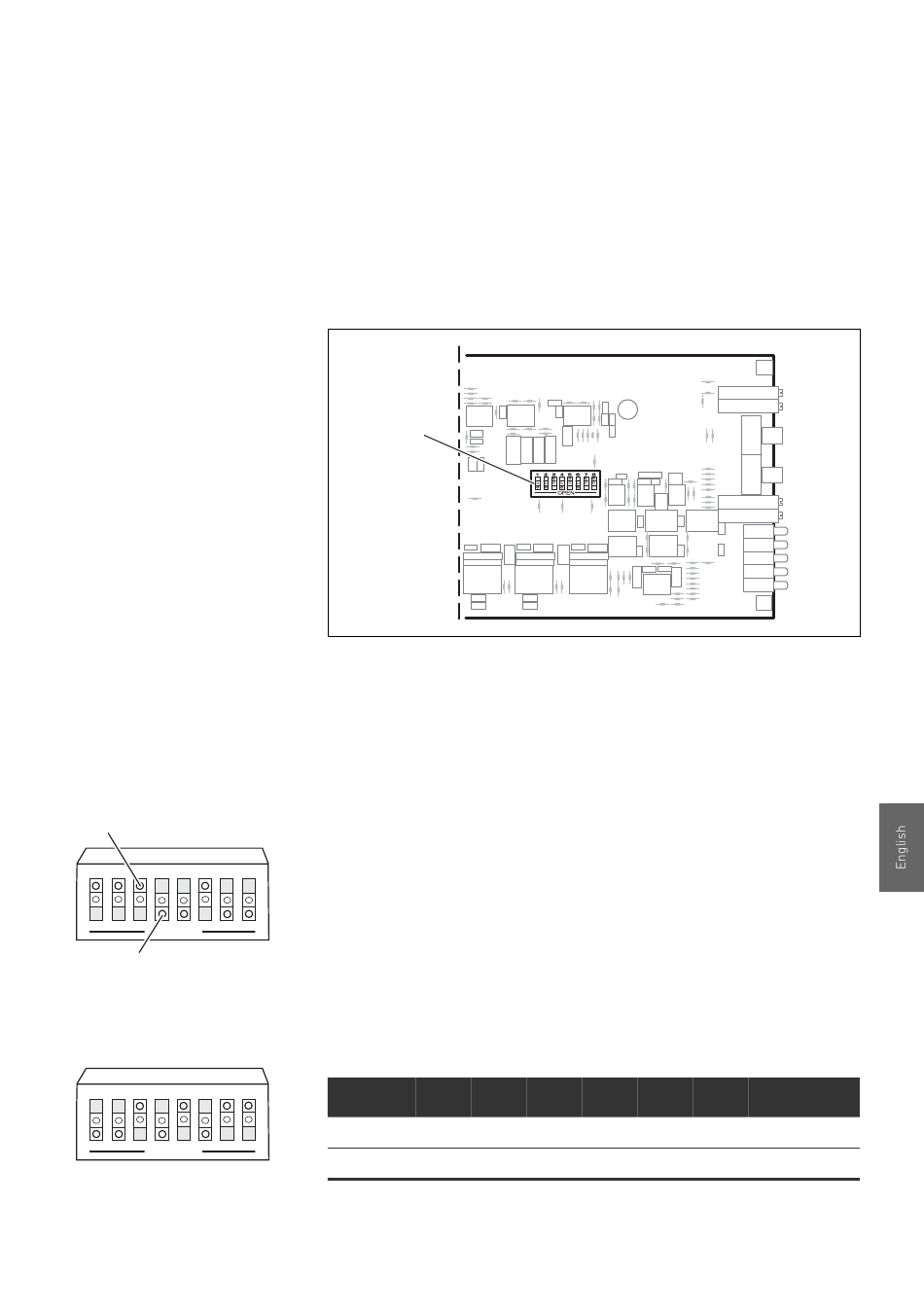

Fig. 11: DIP switch in the 19" assembly position controller
10.2.1
How to correctly set the DIP switch
Two switch positions are available on the creep/rapid speed
DIP switch (18), i.e. the "OPEN" switch position and the "ON"
switch position.
Depending on the design of the DIP switch, the "OPEN" or "ON"
position is labeled. The adjacent figure shows a DIP switch with
a labeled "OPEN" switch position.
1. Pay attention to the labeling of the creep/rapid speed DIP
switch.
2. Set the creep/rapid speed DIP switch as follows:
Table 4:
Size 1 with rapid speed (525 762 2XX 0)
Switches 1
ON
OPEN
X
Positioning unit adjustments
2
3
4
5
X
X
X
X
69
6
7
8
X
X
X
