56 AVENTICS | Position Controller | R412004397–BDL–001–AC
Device description
5.3
The position controller is a part of the positioning unit. The
positioning unit is available in three sizes as a standard version
and in a version with rapid speed.
5.3.1

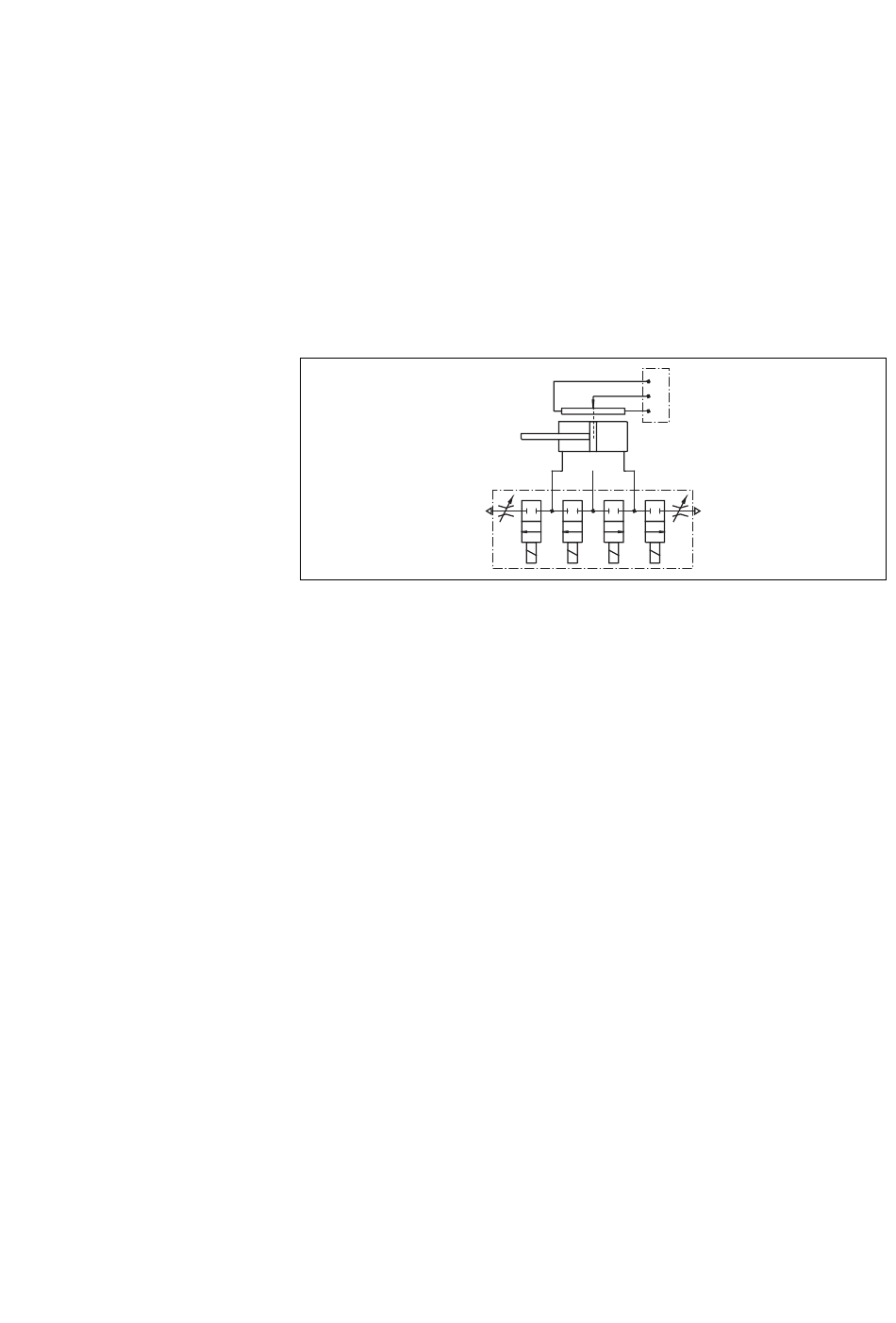

Fig. 4:
In the standard positioning unit version, the cylinder is controlled
by a valve block consisting of four 2/2 directional valves. As the
nominal width is dependent on the size, the piston rod can only be
moved slowly in the standard positioning unit version.
5.3.2
Size I As with the standard version, the cylinder in this version is also
controlled by a valve block. However, the nominal width is greater
than that in the standard version. The appropriate position
controller in a housing is available as a special device for this size
(order no.: 546 019 002 0).
In the 19" assembly version, the DIP switch (18) must be
adjusted on the board (see "Switching between creep speed
and rapid speed" on page 69).

Available positioning unit versions

Standard version (creep speed)

Standard version

Version with rapid speed

1
3
2
2(B) 1(P) 4(A)
