2.3 Room Transfer

Room transfer with two hoists
Room transfer can be done by using two Robin hoists; one in each
room. To ease this operation, an Invacare room-to-room trolley
is used.
Room transfer is possible in both single- or room covering
installations. It is important that the rails are located as close to
the doorway as possible. When installing a room covering rail
system intended for room transfer, the traverse rail must be installed
perpendicular to the wall with the doorway. The distance between
the two end stop buffers must not exceed 600 mm. To obtain the
best possible result during room transfer, there must be a minimum
1586749-B

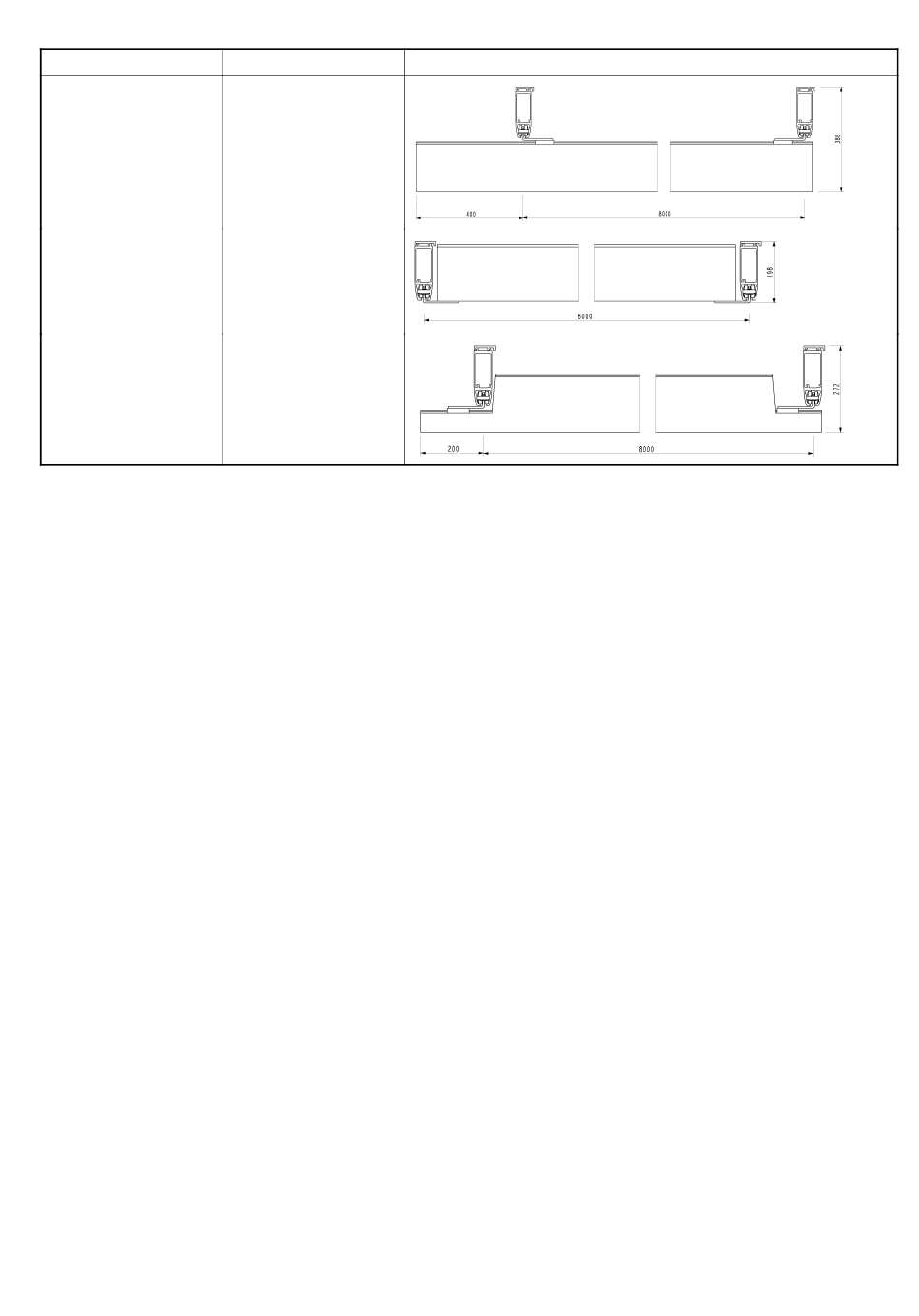

Combination
Under-hung traverse:
Between-hung traverse:
Partly between-hung
traverse:
Possible combinations
distance of 1.85 m between the floor and the underside of the hoist.
This must be kept in mind during installation of the rail system.
Room transfer with transit (transit coupling)
As an alternative the room transfer can be achieved by an installed
transit coupling.
The coupling can be used to connect either two traverse systems or
one traverse system and one single rail system.
The coupling is operated electrically by a control button mounted on
the wall. The coupling is delivered with a standard length of 800 mm.
For further information see chapters 2.4 Rails, Brackets & Accessories,
page 8 and 3.10 Transit coupling, page 20.
Rail system
7
