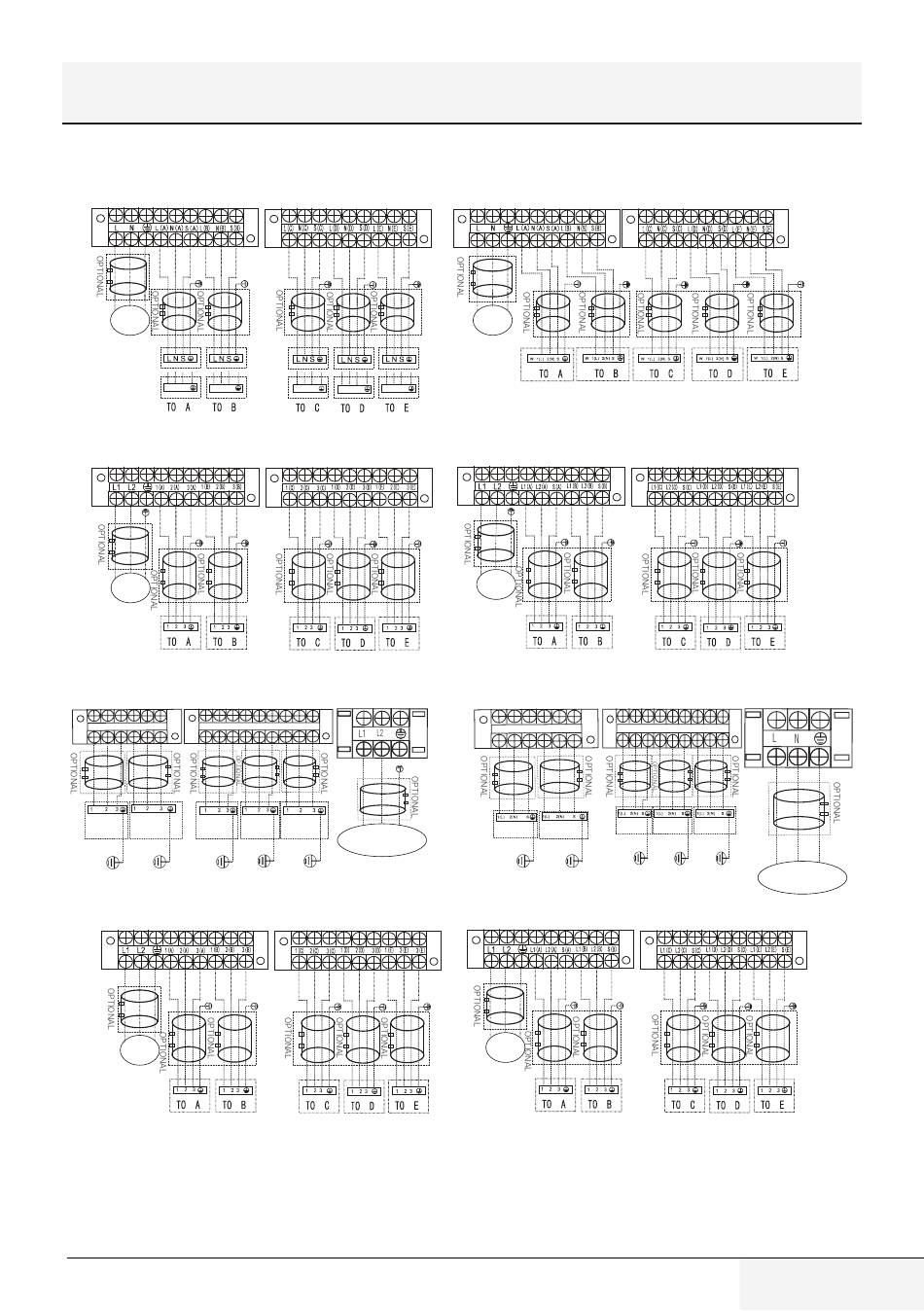

5 Installation
One-five models:
POWER
or
1(L) 2(N) 3(S)
1(L) 2(N) 3(S)
Model A
POWER
Model C
1(A) 2(A) 3(A) 1(B) 2(B) 3(B)
1(C) 2(C) 3(C) 1(D) 2(D)
TO A
TO B
TO C
Model E
POWER
Model G
Multi Split Type Air Conditioner / User Manual
or
1(L) 2(N) 3(S)
1(L) 2(N) 3(S)
1(L) 2(N) 3(S)
3(D) 1(E)
2(E) 3(E)
TO D
TO E
POWER SUPPLY
POWER
Model B
POWER
Model D
L(C) N(C) S(C) L(D) N(D) S(D) L(E) N(E) S(E)
L(A) N(A) S(A) L(B) N(B) S(B)
TO C
TO A
TO B
Model F
POWER
Model H
TO D
TO E
POWER SUPPLY
49 / EN
