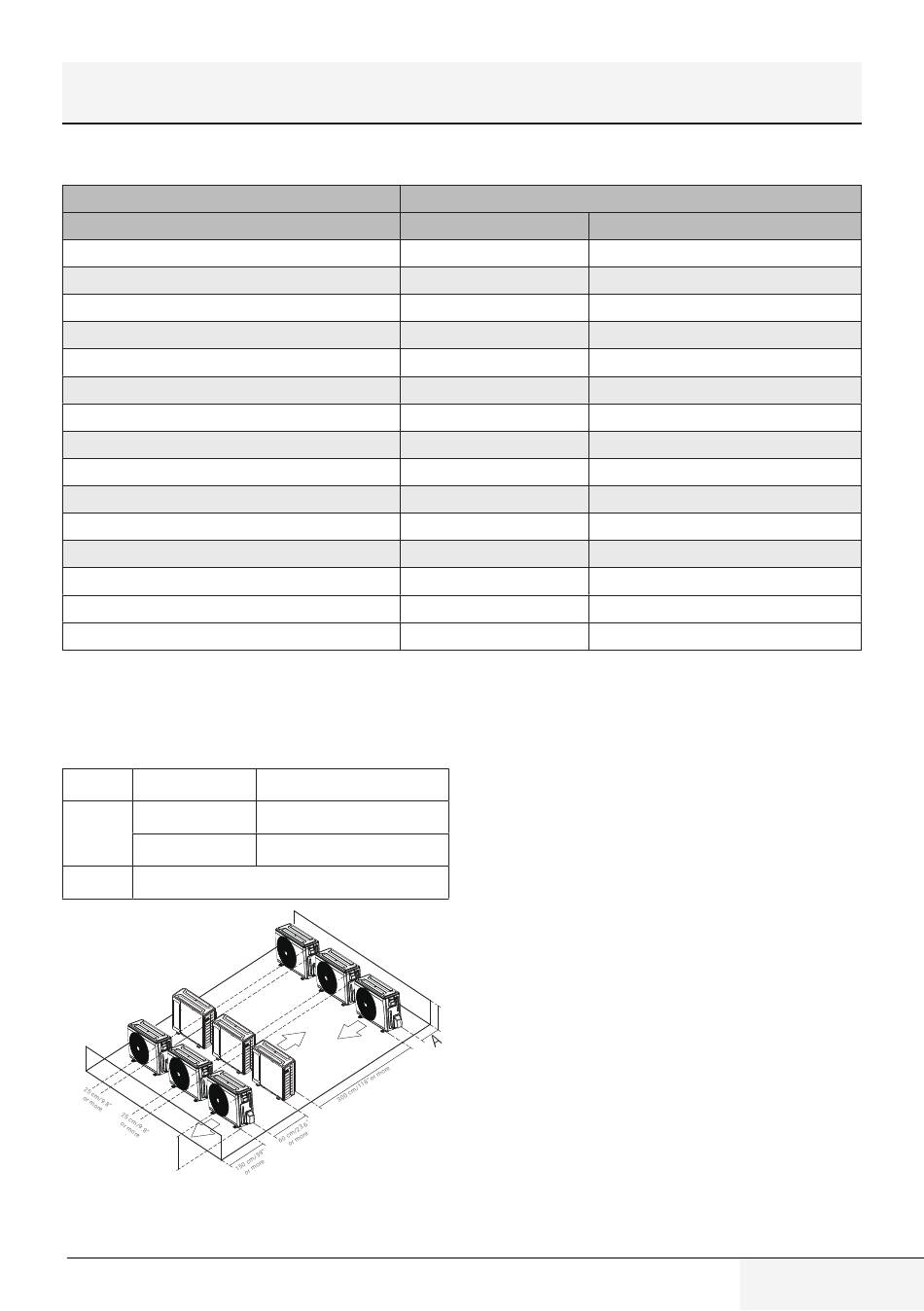

Beko BGMPI 090 Mode D'emploi page 33

Publicité

5 Installation
(unit: mm/inch)
Outdoor Unit Dimensions (mm)
W x H x D
760x590x285 (29.9x23.2x11.2)
810x558x310 (31.9x22x12.2)
845x700x320 (33.27x27.5x12.6)
900x860x315 (35.4x33.85x12.4)
945x810x395 (37.2x31.9x15.55)
990x965x345 (38.98x38x13.58)
938x1369x392 (36.93x53.9x15.43)
900x1170x350 (35.4x46x13.8)
800x554x333 (31.5x21.8x13.1)
845x702x363 (33.27x27.6x14.3)
946x810x420 (37.2x31.9x16.53)
946x810x410 (37.2x31.9x16.14)
952x1333x410 (37.5x52.5x16.14)
952x1333x415 (37.5x52.5x16.14)
890x673x342 (35.0"x 26.5"x 13.5")
Rows of series installation
The relations between H, A and L are as
follows.
L
L ≤ 1/2H
L ≤ H
1/2H < L ≤ H 30 cm/11.8" or more
L > H
Can not be installed
H
Multi Split Type Air Conditioner / User Manual
Distance A (mm)
A
25 cm/9.8" or more
L
Mounting Dimensions
530 (20.85)
549 (21.6)
560 (22)
590 (23.2)
640 (25.2)
624 (24.58)
634 (24.96)
590 (23.2)
514 (20.24)
540 (21.26)
673 (26.5)
673 (26.5)
634 (24.96)
634 (24.96)
663 (26.1")
Distance B (mm)
290 (11.4)
325 (12.8)
335 (13.2)
333 (13.1)
405 (15.95)
366 (14.4)
404 (15.9)
378 (14.88)
340 (13.39)
350 (13.8)
403 (15.87)
403 (15.87)
404 (15.9)
404 (15.9)
354 (13.9")
