5 Installation
the side panel of the unit. Refer to this
nameplate to choose the right cable,
fuse, or switch.
In North America,
C
please choose the right
cable size according
to the minimum circuit
ampacity indicated on the
nameplate of the unit.
– Using wire strippers, strip the rubber
jacket from both ends of the signal
cable to reveal approximately 15cm
(5.9") of wire.
– Strip the insulation from the ends.
– Using a wire crimper, crimp u-lugs on
the ends.
When connecting the
C
wires, strictly follow the
wiring diagram found
inside the electrical box
cover.

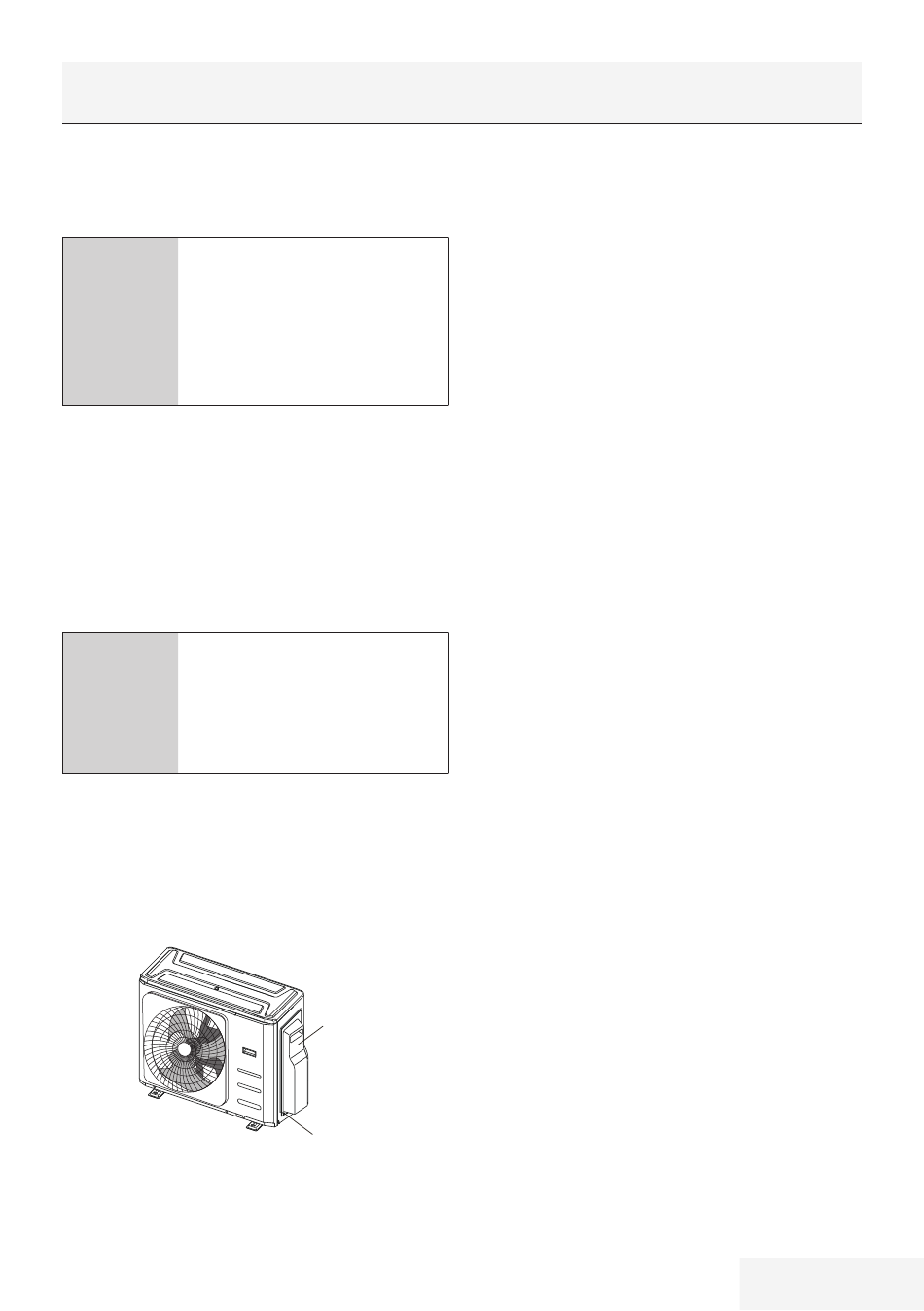

2. Remove the electric cover of the
outdoor unit. If there is no cover on the
outdoor unit, take off the bolts from
the maintenance board and remove
the protection board.
Multi Split Type Air Conditioner / User Manual
3. Connect the u-lugs to the terminals
4. Clamp down the cable with designated
5. Insulate unused wires with electrical
6. Reinstall the cover of the electric
5�8 Harmonic declaration
"The
complies with IEC 61000-3-12 provided
that the shortcircuit power Ssc is
greater than or equal to 4787737.5 at
the interface point between the user's
supply and the public system. It is the
responsibility of the installer or user of
the equipment to ensure, by consultation
with the distribution network operator if
necessary, that the equipment is con-
nected only to a supply with a short-
circuit power Ssc greater than or equal
to 4787737.5." "The equipment M5OD-
42HFN8-Q complies with IEC 61000-3-
12 provided that the shortcircuit power
Ssc is greater than or equal to 3190042.5
at the interface point between the user's
supply and the public system. It is the
responsibility of the installer or user of
Cover
Cover
the equipment to ensure, by consultation
with the distribution network operator if
necessary, that the equipment is con-
nected only to a supply with a short-
Screw
Screw
circuit power Ssc greater than or equal
to 3190042.5."
Match the wire colors/labels with the
labels on the terminal block, and firmly
screw the u-lug of each wire to its
corresponding terminal.
cable clamp.
tape. Keep them away from any
electrical or metal parts.
control box.
equipment
M4OB-36HFN8-Q
41 / EN
