5 Installation
depending on the type of outdoor unit.

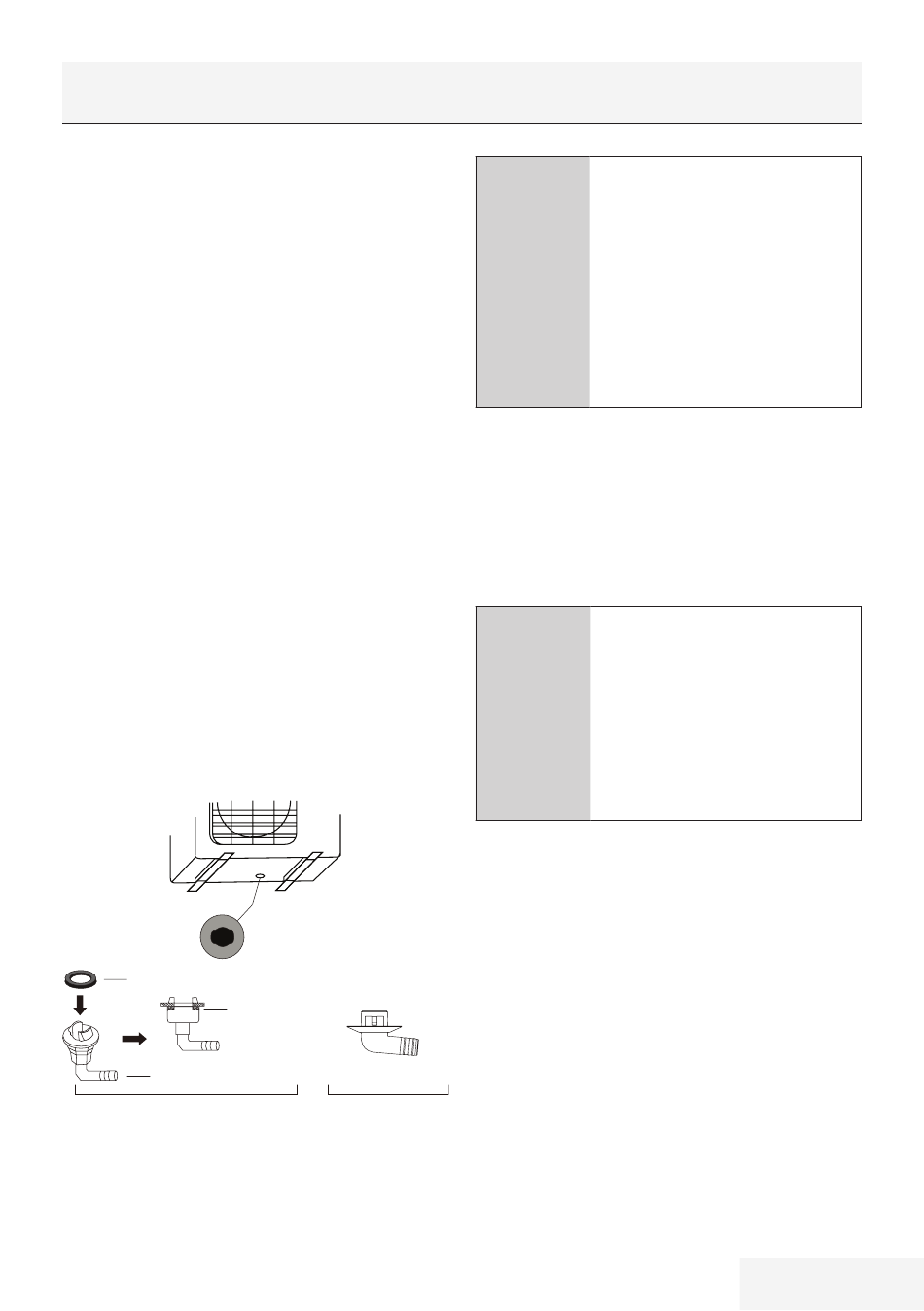

If the drain joint comes with a rubber seal
(see Fig� A), do the following:
1. Fit the rubber seal on the end of the
drain joint that will connect to the
outdoor unit.
2. Insert the drain joint into the hole in the
base pan of the unit.
3. Rotate the drain joint 90° until it clicks
in place facing the front of the unit.
4. Connect a drain hose extension (not
included) to the drain joint to redirect
water from the unit during heating
mode.
If the drain joint doesn't come with a rubber
seal (see Fig� B), do the following:
1. Insert the drain joint into the hole in the
base pan of the unit. The drain joint will
click in place.
2. Connect a drain hose extension (not
included) to the drain joint to redirect
water from the unit during heating
mode.
Seal
Seal
Seal
Seal
Drain joint
Drain joint
(A)
Multi Split Type Air Conditioner / User Manual
Base pan hole of
Base pan hole of
outdoor unit
outdoor unit
(B)
CAUTION!
climates, make sure
that the drain hose is
A
as vertical as possible
to ensure swift water
drainage. If water drains
too slowly, it can freeze
in the hose and flood the
unit.
Step 3: Anchor outdoor unit
The outdoor unit can be anchored to the
ground or to a wall-mounted bracket with
bolt(M10). Prepare the installation base
of the unit according to the dimensions
below.
The following is a list
of different outdoor
C
unit sizes and the
distance between their
mounting feet. Prepare
the installation base of
the unit according to the
dimensions below.
In cold
31 / EN
