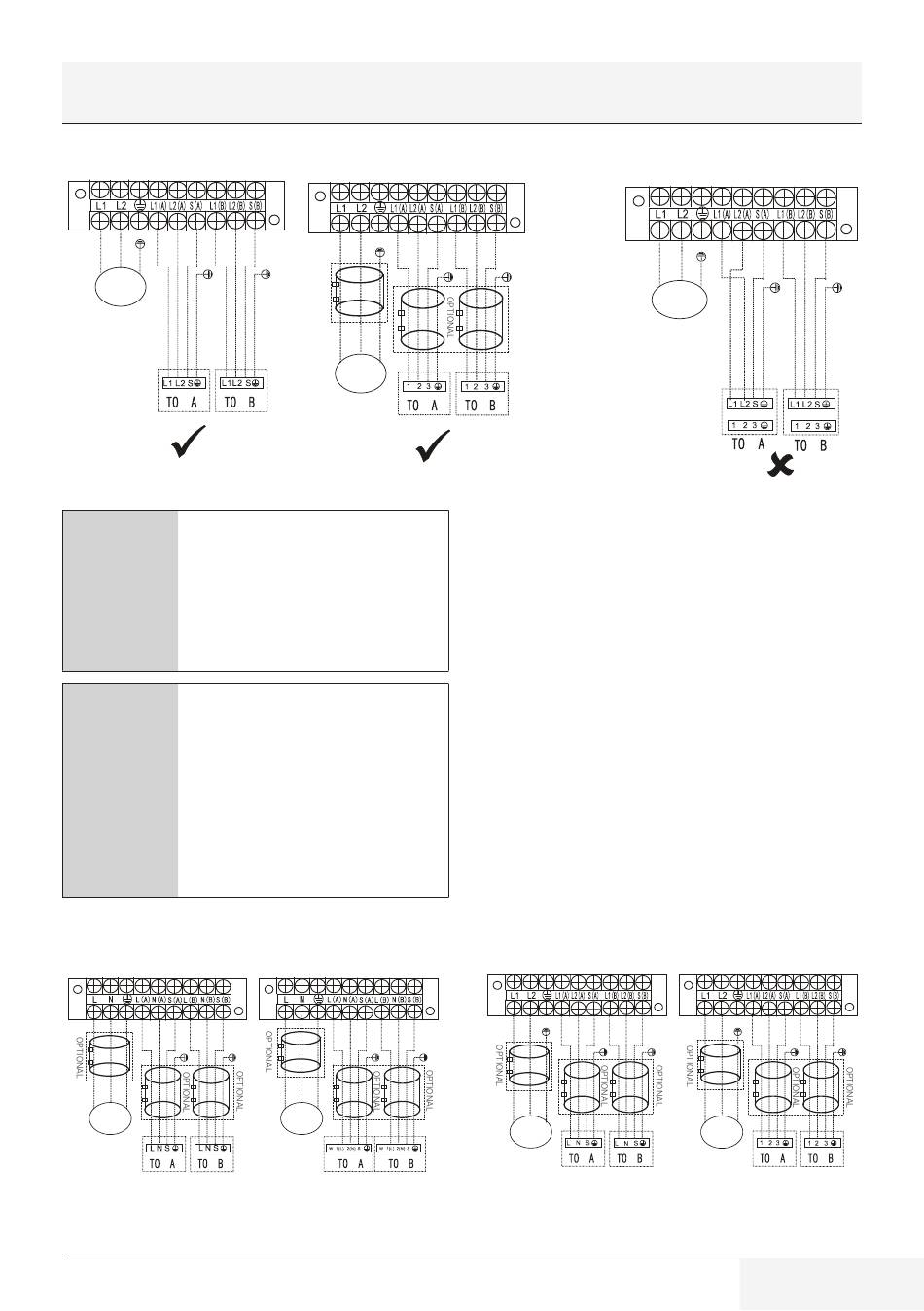

5 Installation
POWER
For quick-connector
C
models, please refer to
<<Owner's Manual &
Installation Manual >>
packed with the indoor
unit.
Refer to the following
figures if end-users wish to
C
perform their own wiring.
Run the main power cord
through the lower line-
outlet of the cord clamp.
---- This symbol indicates
field wiring.
One-two models:
POWER
Model A
Multi Split Type Air Conditioner / User Manual
POWER
POWER
Model B
POWER
POWER
Model C
or
or
POWER
Model D
43 / EN
