5.2.2

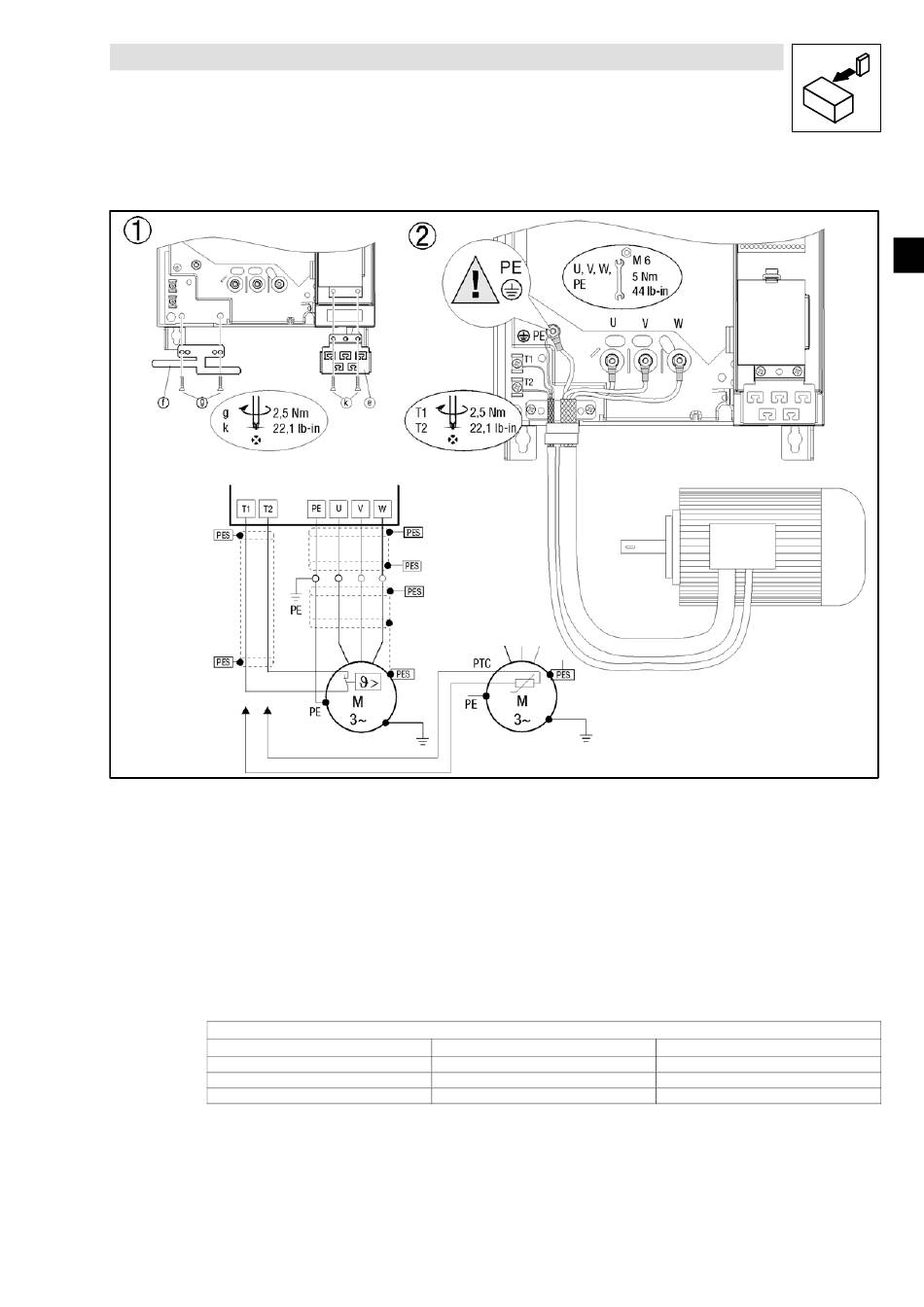

Motor connection

Use low-capacity motor cables! (Core/core ≤ 140 pF/m, core/shield ≤ 230 pF/m)
The shorter the motor cable used, the better the drive behaviour!
PES HF-shield end by PE connection via shield clamp.
T1, T2 Connection terminals motor temperature monitoring with PTC thermistor or thermal contact (NC contact).
Route a separate cable (shielded) to X2/T1 and X2/T2 for the motor temperature monitoring.
Activate motor temperature monitoring with C0119 (e. g. C0119 = 1)!
Route the control and mains cables separately from the motor cable!
Cable cross-sections
Cable cross-sections U, V, W, PE
Type
E82EV153K4B
E82EV223K4B
E82EV303K4B
L
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
Electrical installation
Power connections E82EV153K4B ... E82EV303K4B
2
mm
10
16
25
EDK82EV903 DE/EN/FR 2.2
8200vec285
AWG
8
6
3
