Mechanical installation
Mounting E82EV453K4B / E82EV553K4B
4.2

E82EV453K4B / E82EV553K4B mounting

4.2.1

Fixing bracket (standard) and mains choke

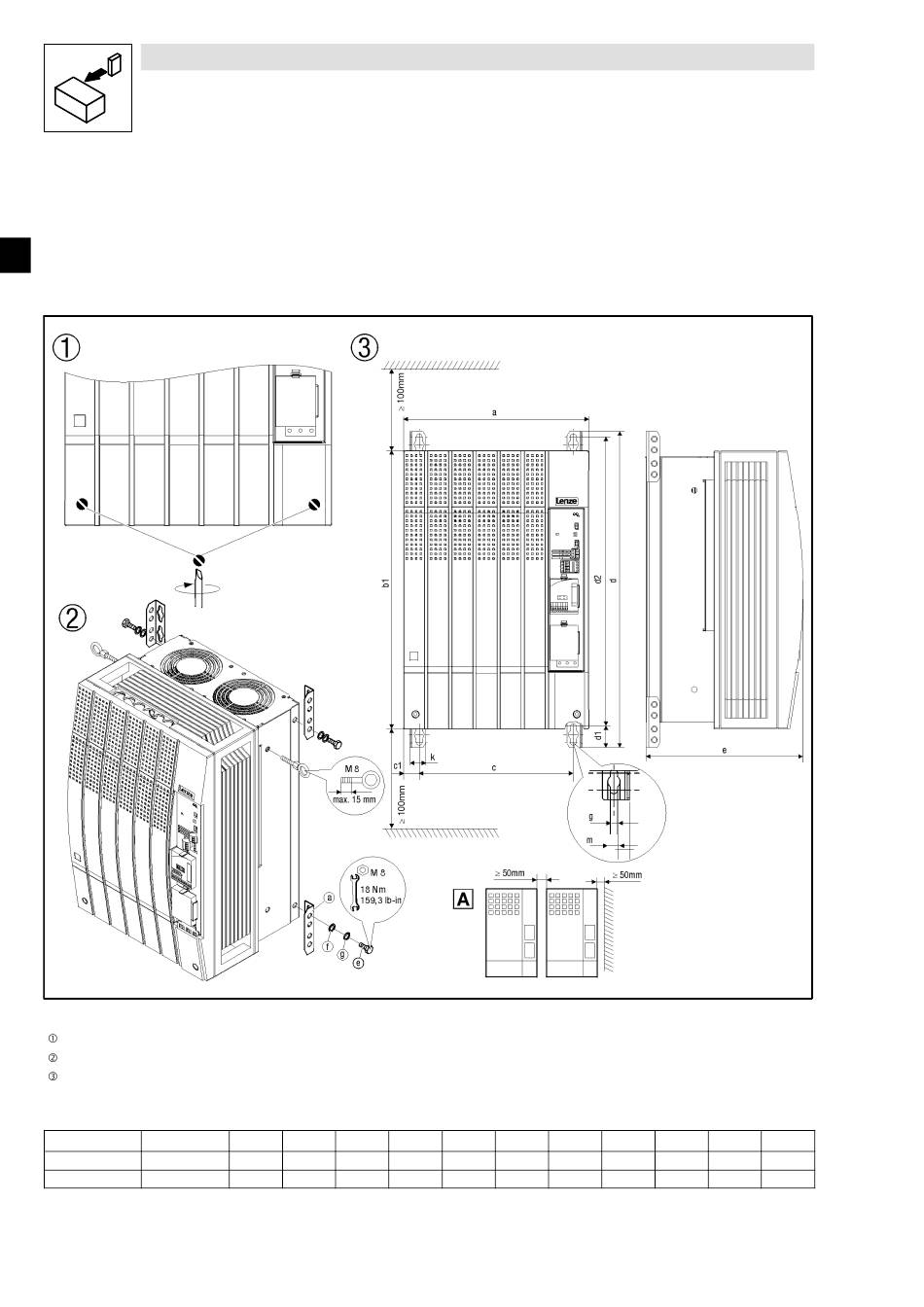

Loose both screws in order to remove the housing cover.
Mounting of the fixing brackets
Dimensions
Mount the drive controller side-by-side with a certain space to each other for dismounting the lifting-eye bolt.

Controller Mains choke
E82EV453K4B2x1 ELN3-0038H085
E82EV553K4B2x1 ELN3-0027H105
70
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
a [mm] b1 [mm] c [mm] c1 [mm]
340 510 284 28
340 591 284 28
EDK82EV903 DE/EN/FR 2.2
d [mm] d1 [mm] d2 [mm] e [mm]
580 38 532 285
672 38 624 285
8200vec296
g [mm] k [mm] m [mm]
11 28 18
11 28 18
L
