Function modules (optional)
Mounting

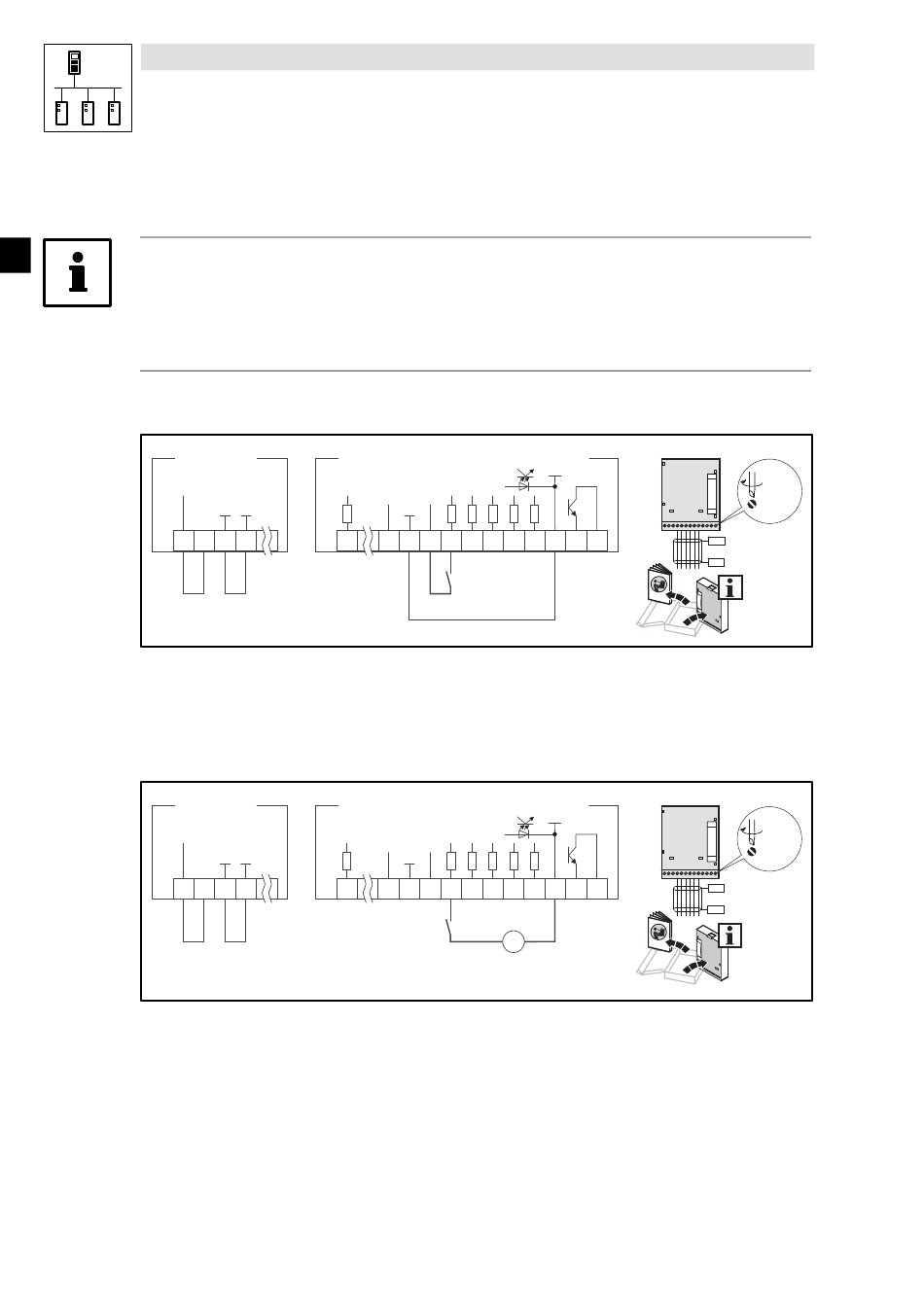

6.1.1 Wiring of the terminals "controller inhibit (CINH)" at operation of two
function modules
Tip!
•
Both terminals X3/28 of the interface FIF I and FIF II are evaluated internally via an
AND-operation.
•
The pictures for wiring shown below serve as a circuit proposal. Considering the
AND-operation of both terminals X3/28 the wiring can be adapted to your application.
Supply of the terminals "controller inhibit (CINH)" via an external voltage source
FIF I
E82ZAFx
+20V
GND3
X3 20 28 39 7
8200vec262
PES HF shield connection by connecting the shield with a surface as large as possible to PE
For function modules with terminals X3/7 and X3/39: Connect X3/7 and X3/39 using a jumper

Wiring of the other terminals:  Mounting Instructions for the function modules
Supply of the terminals "controller inhibit (CINH)" via an external voltage source
FIF I
E82ZAFx
+20V
GND2
X3 20 28 39 7
8200vec263
PES HF shield connection by connecting the shield with a surface as large as possible to PE
For function modules with terminals X3/7 and X3/39: Connect X3/7 and X3/39 using a jumper

Wiring of the other terminals:  Mounting Instructions for the function modules
88
EDK82EV903 DE/EN/FR 2.2
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
FIF II
E82ZAFS
(PT E82ZAFS100)
+5V
GND1 GND1
X3 62 9
0
FIF II
E82ZAFS
(PT E82ZAFS100)
+5V
GND1 GND1
X3 62 9
0
GND2
+20V
7 20 28 E1 E2 E3 E4 39 A1 59
GND2
+20V
7 20 28 E1 E2 E3 E4 39 A1 59
–
+
24 V ext.
( +12 V -0 % ...
... +30 V +0 %, max. 120 mA)
0.5...0.6 Nm
4.4...5.3 lb-in
X3
PES
PES
0.5...0.6 Nm
4.4...5.3 lb-in
X3
PES
PES
L
