Malfunction caused by closed housing ventilation port!
If the housing ventilation port is closed, there is no atmospheric compensation and the
characteristics curve will change.
Ensure that the air can circulate freely through the housing ventilation port (2).
Never operate the device in an atmosphere containing oil.
2
00121338
7 10
00131335
6
21
00121336
AVENTICS
NOTICE
Before installation, ensure that the housing ventilation port (2)
is open and not e.g. painted shut.
6.2

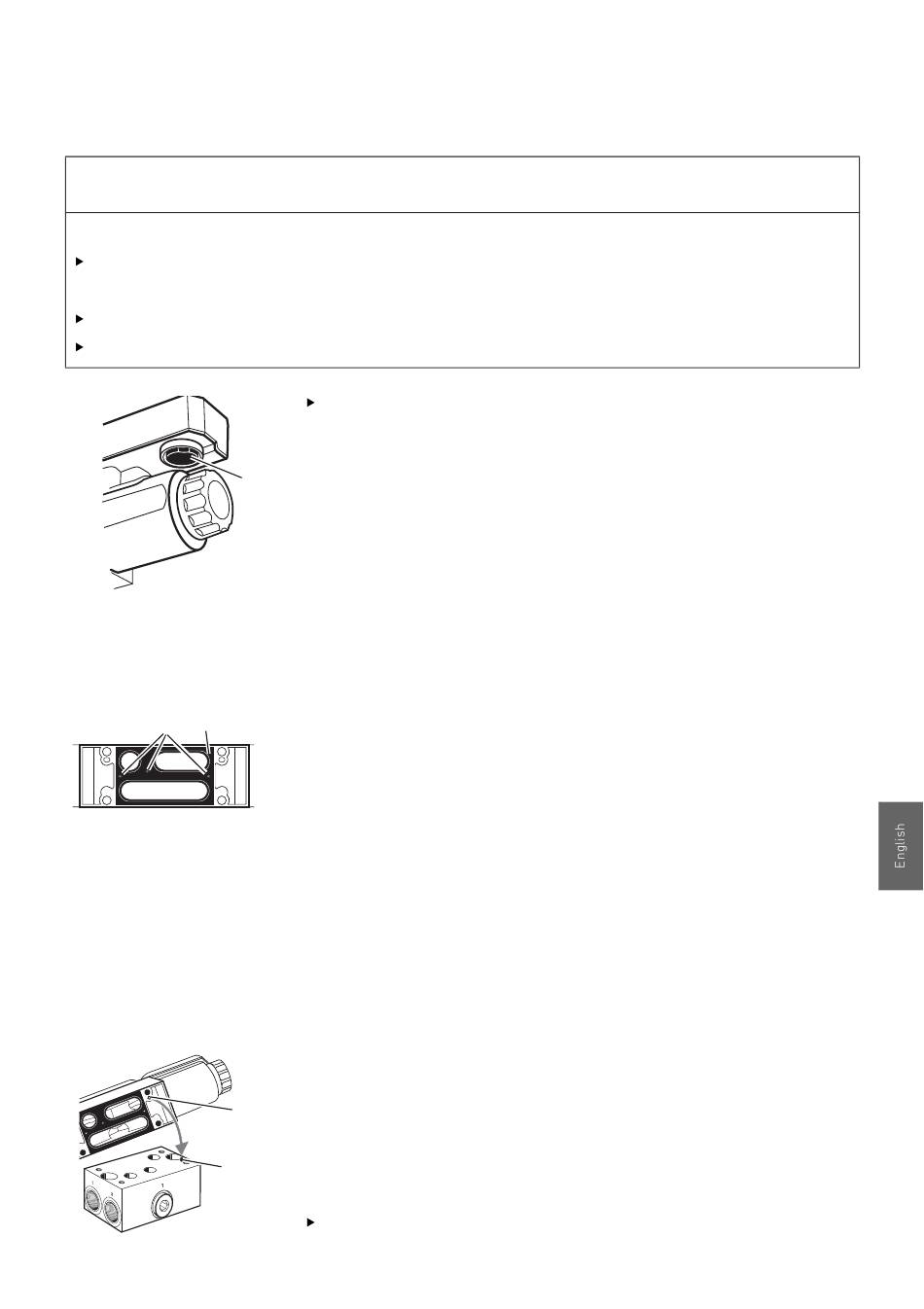

Inserting the base plate seal

1. Place the base plate seal (10) on the lower side of the ED07
pressure regulator so that the three pneumatic ports are not
covered.
2. Gently press down on the base plate seal so it is fixed on the
three mounting pins (7).
The three mounting pins ensure that the base plate seal is
placed correctly on the contour of the pneumatic ports.
6.3 Placing the ED07 pressure regulator on a
base plate
A coded pin (21) is located on the base plate, which fits in the coded
hole (6) of the ED07 pressure regulator. This ensures correct
assembly.
1. Turn the ED07 pressure regulator so that the coded pin (21)
and coded hole (6) are on the same side and the pin can be
inserted into the hole.
2. Place the ED07 pressure regulator on the base plate.
The coded pin on the base plate will fit into the coded hole in
the ED07 pressure regulator.
Make sure here that the base plate seal does not move.
| ED07 | R41400766–BDL–001–AB
Assembling the ED07 pressure regulator
