Schaltausgang
00122911
0 V DC
0-10 V DC
+10 V DC
00122937

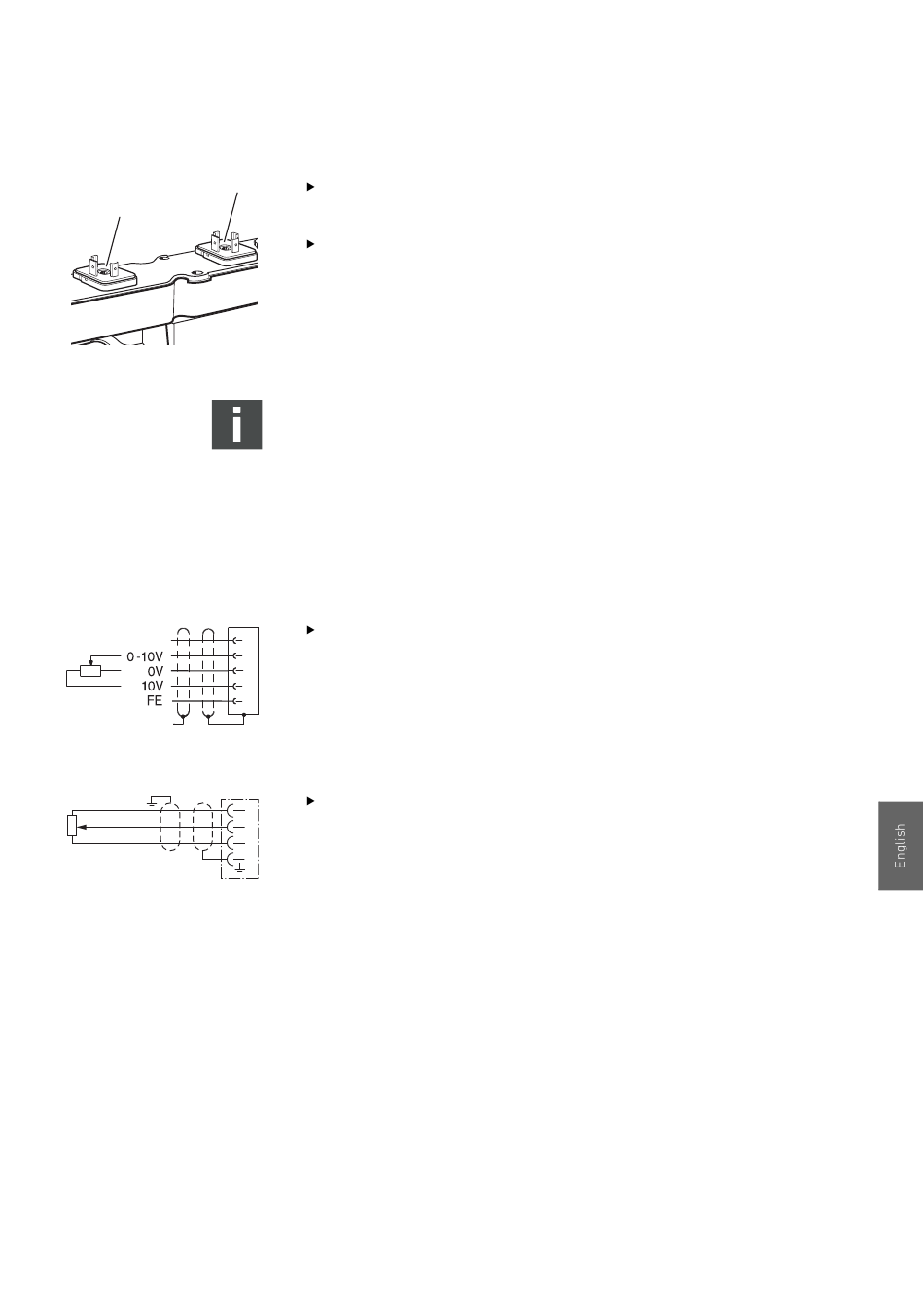

For devices with two DIN EN 175301-803 rectangular plugs:
Use a shielded cable to connect the
The shield must be connected with the "FE" plug connection.
Connect the lines to the
plugs.
The ED07 pressure regulator can now be supplied with voltage
and controlled with a set point.
As the 0 V lines are connected at the
X2A connections, the correct polarization for all plug
connections must be ensured. A short circuit will result if the
supply voltage or set point voltage has a reversed
polarization.
For devices controlled via a potentiometer and integrated
X2M plug:
Connect the cables at the integrated
1
2
illustration on the left.
3
4 The ED07 pressure regulator can now be supplied with voltage
5
and the set point set on the potentiometer.
For devices controlled via a potentiometer and two rectangular
plugs:
Connect the cables at the integrated
1
2
in the illustration on the left.
3
The ED07 pressure regulator can now be supplied with voltage
and the set point set on the potentiometer.
AVENTICS | ED07 | R41400766–BDL–001–AB
Assembling the ED07 pressure regulator
X1S (16) and
X2A (17).
X2A (17) rectangular
X2M and X1S or X1S
X1S
X2M socket as in the
X2A rectangular plug as
