SLB – SIMOLINK Board
Mode of operation
Data traffic
Telegram access
Voltage supply
NOTE
4-2
The optional board is provided with three LED displays for supplying
information on the current operating status.
System connector
Fixing screw

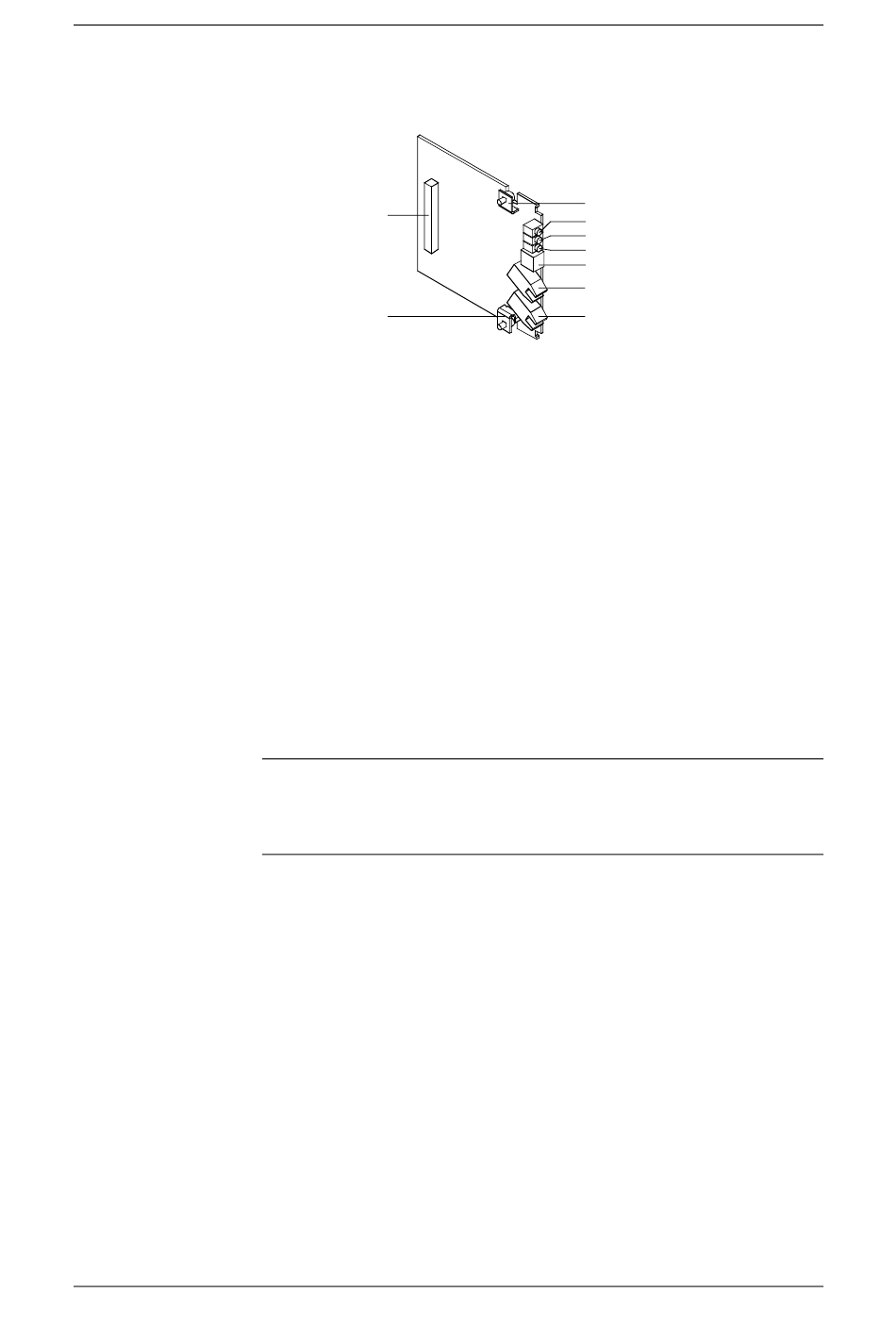

Fig. 4-2 View of the SLB optional board
The SLB optional board links the converters/inverters to SIMOLINK. It
can be used as the SIMOLINK dispatcher or as a SIMOLINK
transceiver. The functionality can be changed over by means of
parameterization.
The optional board reads all telegrams on SIMOLINK and stores the
selected telegrams in a receive memory. There is also a separate
memory area for the telegrams which have to be changed or re-
generated.
The stored telegrams are archived in double-word connectors. A
dedicated connector is available for each of the eight stored telegrams.
The output telegrams are archived in BICO parameters.
The optional board can be supplied with the required operating voltage
internally from the converter/inverter, as well as externally. Priority is
given to the external voltage supply. Changeover is effected
automatically on the optional board.
It is not permissible to change over from external voltage supply during
bus operation. During automatic changeover of the voltage supply, a
reset signal is generated on the optional board which results in the loss
of some telegrams.
Fixing screw
LED (green)
LED (red)
LED (yellow)
X470 external 24 V voltage supply
SIMOLINK output (light gray)
SIMOLINK input (dark gray)
