3.3.b - Electric hood connection
Concerning electric hood connection, follow the instruc-
tions supplied with the hood.
3.3.c - Unipotential connection (Fig 7)
The equipment shall be inserted in a unipotential system,
whose effectiveness shall be verified according to the
rules being in force.
A cascade connection shall be carried out among the
various oven components by using the screw (1) placed
on the rear oven side.
3.4 - OVEN POSITIONING (Fig 8)
DANGER
The oven shall not be installed closed to inflammable
walls such as furniture, partition walls, matchboard-
ed coatings etc... A safety range of at least 20 cms
from lateral and rear oven sides should be kept. No
inflammable flooring shall be utilized to install the
oven on it.
• The oven shall be positioned on the final area follow-
ing the indications reported in figure 8, because they
indicate the minimum distances required to allow the
oven correctly to function.
• Fix the oven position by braking the rear wheels.
3.4.a - Chimney connection (Fig. 9)
• Place the fitting (2) on the chimney (1).
• connect the ø 100 mm fitting (2) with a natural draught
conduit or a hood.
3.5 - FIRST STARTING
DANGER
Once the oven is installed and before starting it,
carefully clean its inner part as well as refractory
surface as explained in "Maintenance" chapter, also
make sure neither foreign nor inflammable bodies
are inside the oven.
• Start the oven as prescribed in "Functioning" para-
graph, making sure the set temperature is correctly
reached and the different options (according to the
concerned model) properly function.
EN - 14
MILLENIUM MM/MB
Installation and connections

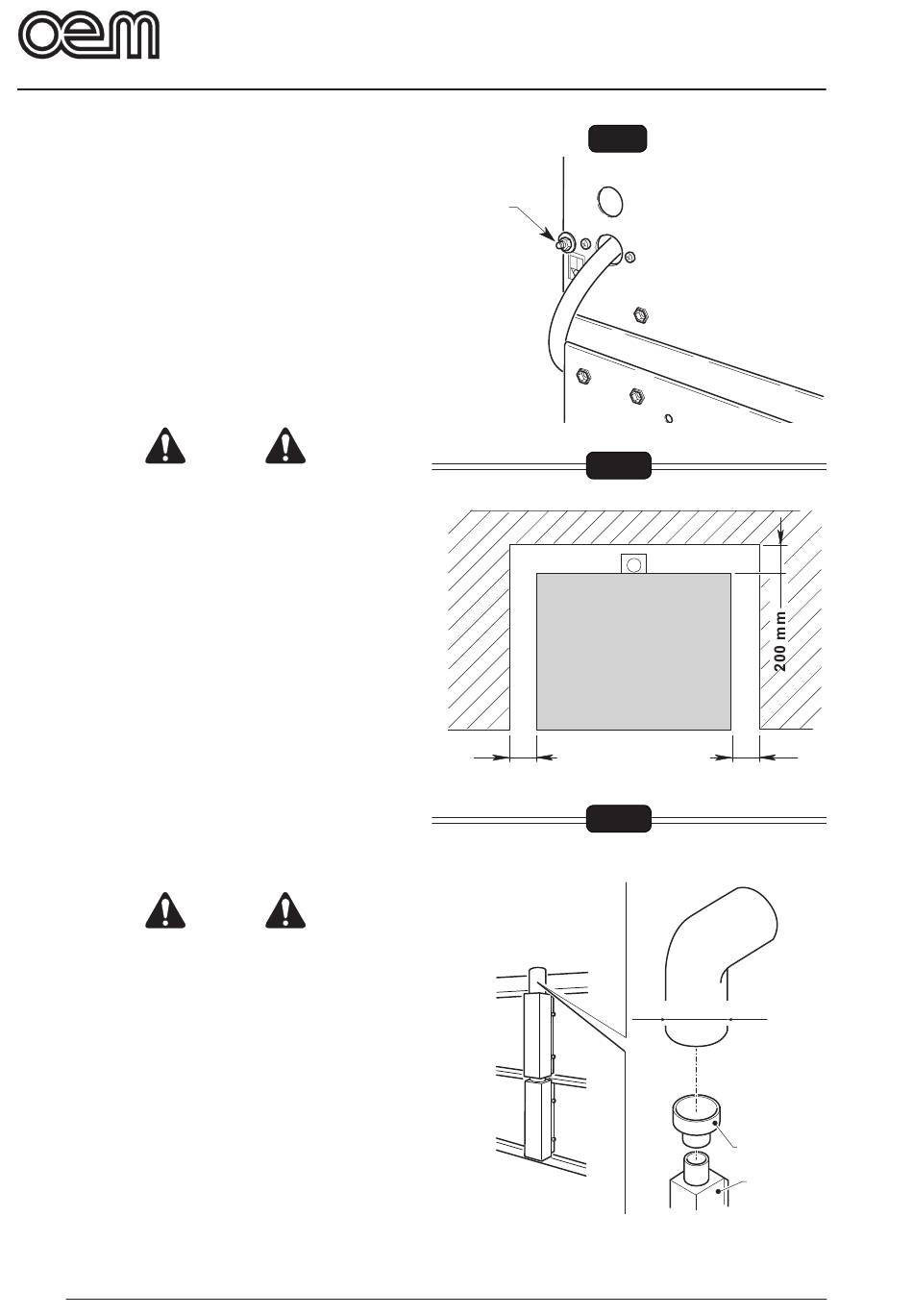

FIG. 7
1
FIG. 8
200 mm
200 mm
FIG. 9
ø 100 mm
2
1
