Communication interfaces: Setting and function
Signal type analogue input (AI2)
For setpoint sensor
PT1000
0 – 10 V
2 – 10 V
0 – 20 mA
4 – 20 mA

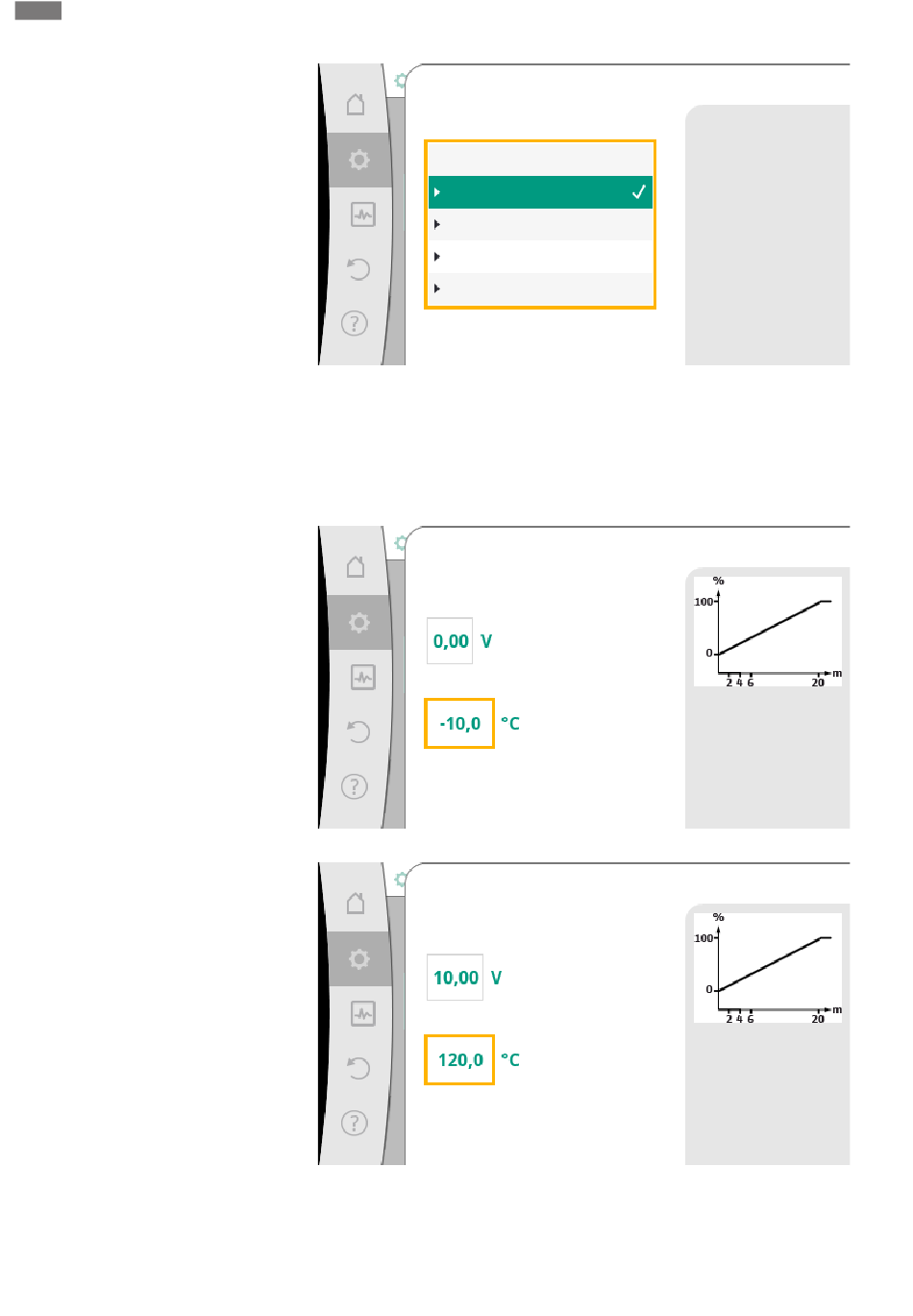

Fig. 79: Signal type
When selecting the signal type "PT1000", all settings for the sensor input are com-
pleted and all other signal types require additional settings.
For the transfer of analogue signal values to actual values, only the transfer ramp is now
defined. For this purpose, the minimum and maximum support point of the character-
istic curve is specified and the respective actual values are amended (MIN signal/value
assignment and MAX signal/value assignment).
Minimum signal/value assignment
Analogue input (AI2)
Signal value
Corresponding value
Fig. 80: Minimum signal/value assignment, actual value sensor
Max. signal/value assignment
Analogue input (AI2)
Signal value
Corresponding value
Fig. 81: Max signal/value assignment, actual value sensor
Data input is complete, once the minimum and maximum characteristic curve interpol-
ation points have been entered.
Set analogue input to the
signal type 0...10 V.
Set minimum point
of actual value
pump curve for
temperature sensor.
Set maximum point
of actual value
pump curve for
temperature sensor.
