7.2

Pump operation

148
Put into operation
1.1
3.5
1
2
3
4

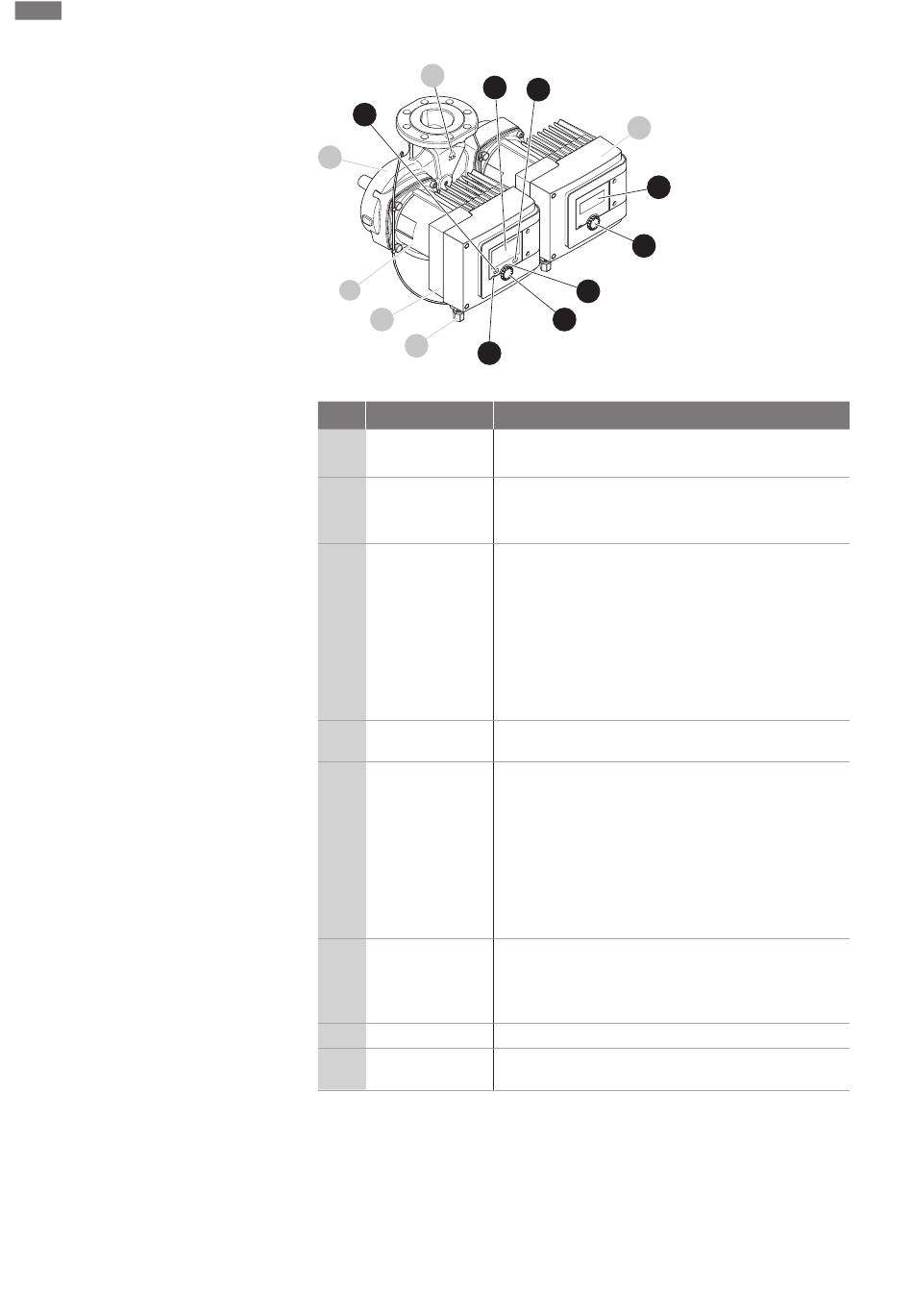

Fig. 36: Operating elements (double pump)
Pos. Name
Graphic display
3.1
Green LED indic-
ator
3.2
Blue LED indicator
3.3
Operating button
3.4
Back button
3.5
Context button
3.6
LED display
5.1
LED display oper-
5.2
ating button
Table 15: Description of operating elements
Settings on pump
Carry out settings by turning and pressing the operating button. Turn the operating
button to the left or right to browse the menus or configure settings. A green focus in-
dicates navigation in the menu. A yellow focus indicates a configuration of settings.
▪ Green focus: Navigation in menu.
3.1
3.6
5
5.1
5.2
3.2
3.4
3.3
Explanation
Provides information about settings and pump status.
Self-explanatory user interface for setting the pump.
LED is lit up: Pump is supplied with voltage and ready for
operation.
There are no warnings and no faults.
LED is lit up: Pump is influenced externally via an inter-
face, e.g. by:
• Bluetooth remote operation
• Setpoint specification via analogue input AI 1 or AI 2
• Intervention of building automation via binary input
DI 1, DI 2 or bus communication
The blue LED briefly flashes twice to indicate that double
pump communication remains active.
Navigate menus and edit content by turning and press-
ing.
Menu navigation:
• To go back to the previous menu level (briefly press
once).
• To go back to the previous settings (briefly press once).
• To go back to the main menu (press and hold once,
> 2 seconds).
Turns key lock on or off in combination with the Context
button. > 5 seconds.
Opens the context menu with additional options and
functions.
Turns key lock on or off in combination with the back
button. > 5 seconds.
Indicates error code and Bluetooth PIN.
Triggers the pump venting function when pressed. Turn-
ing is not possible.
