en
140
Electrical connection

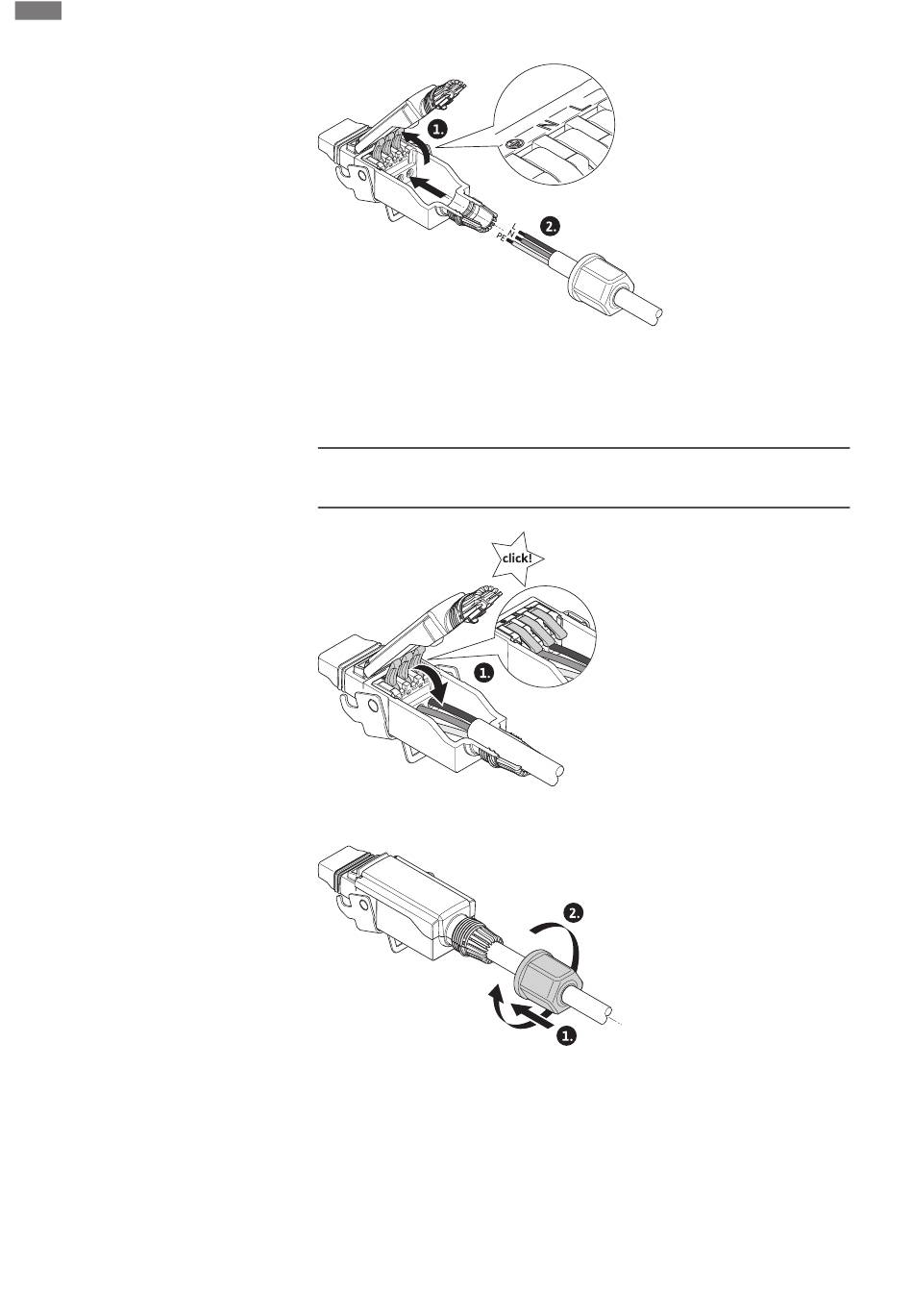

Fig. 26: Guide cable
4. Open WAGO "Cage Clamp" by pressing.
5. Guide the cable through the cable duct to the connection sockets.
6. Connect the wires in the correct position.
NOTICE
For cables without ferrules, make sure that no cores protrude from the terminal!
Fig. 27: Close spring clips
7. Close WAGO "Cage Clamp".
Fig. 28: Disassemble the plug
8. Push the upper part of the Wilo-Connector into the lower part by using position
bars and close the socket.
9. Screw on cable bushing with a torque of 0.8 Nm.
